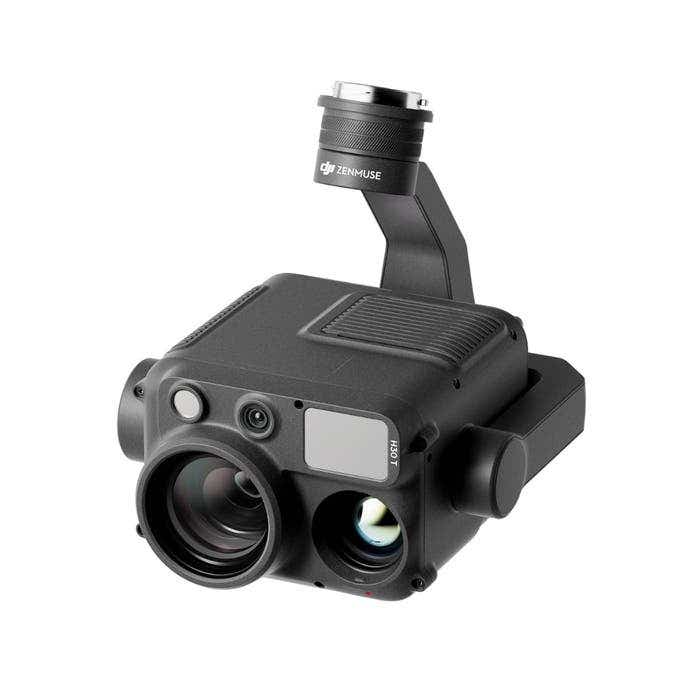

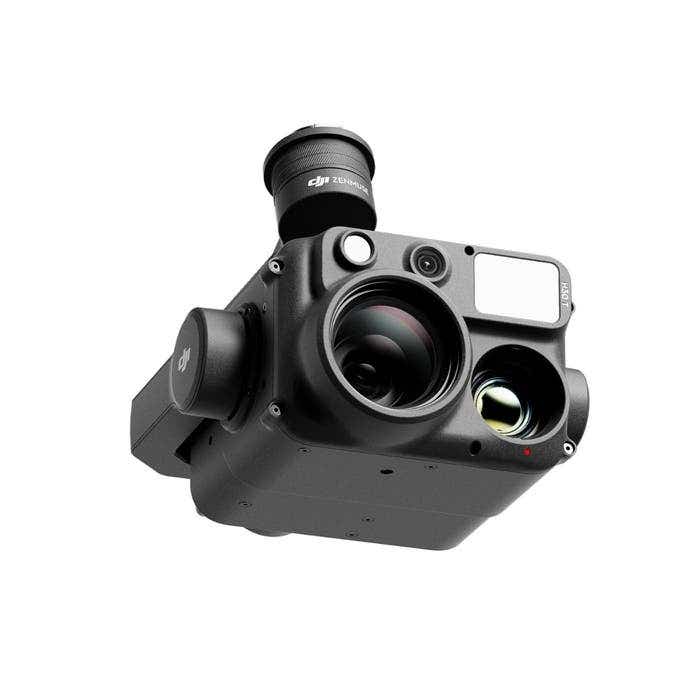

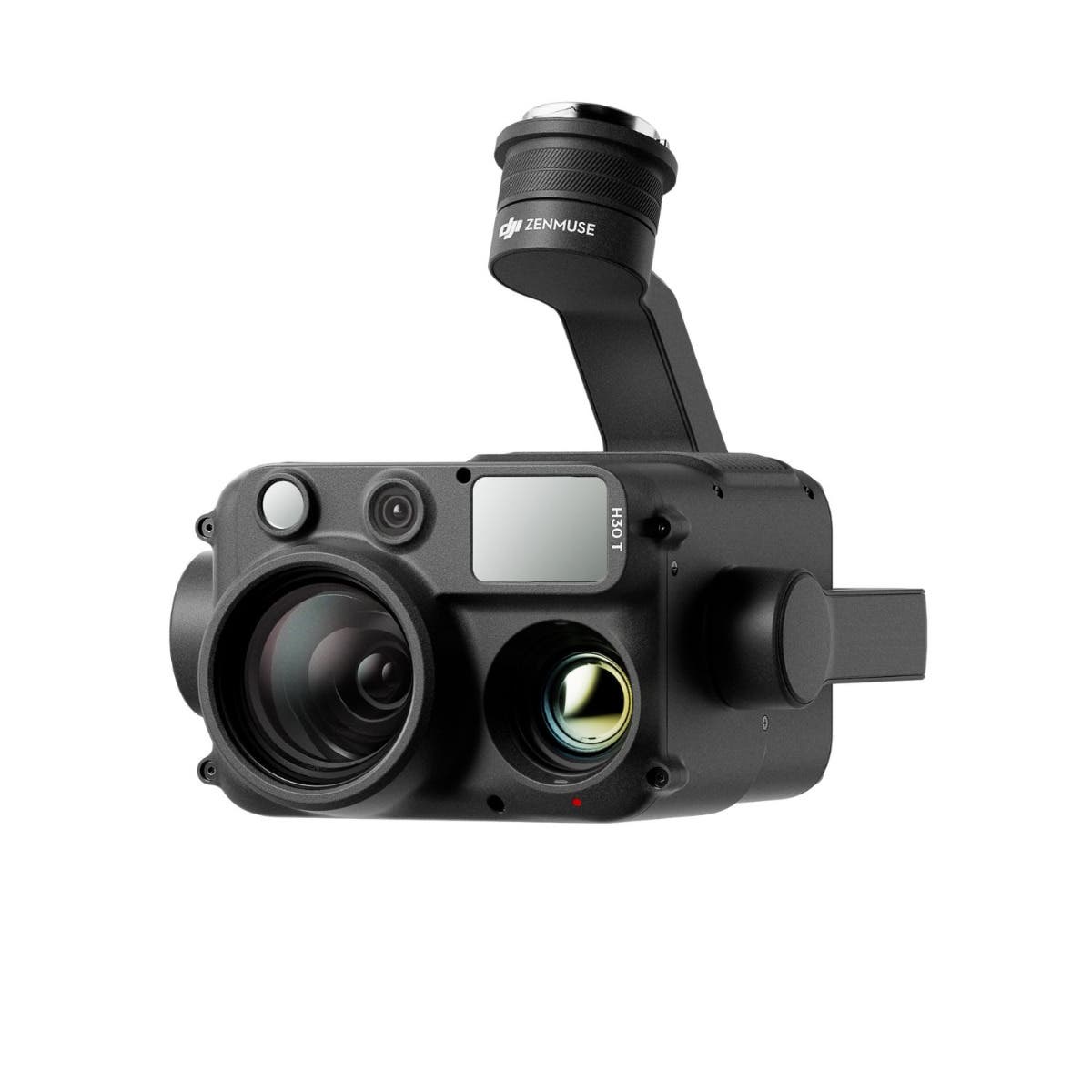

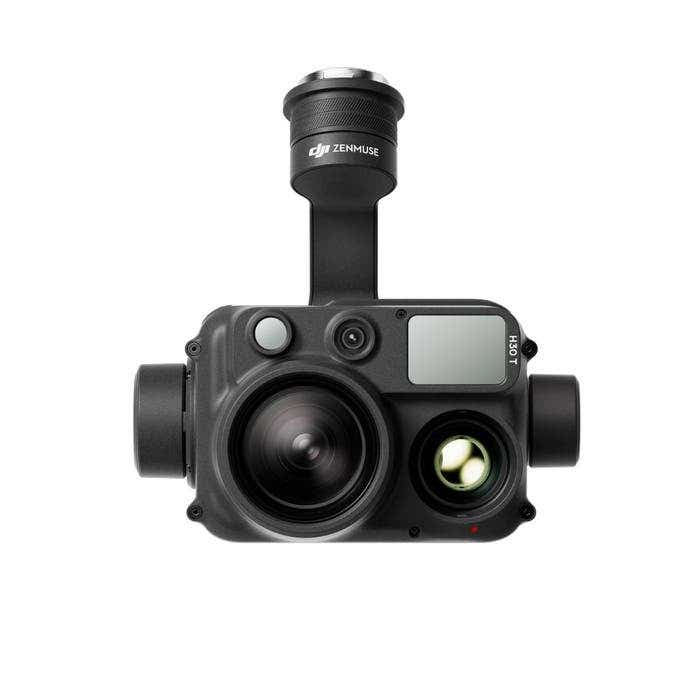

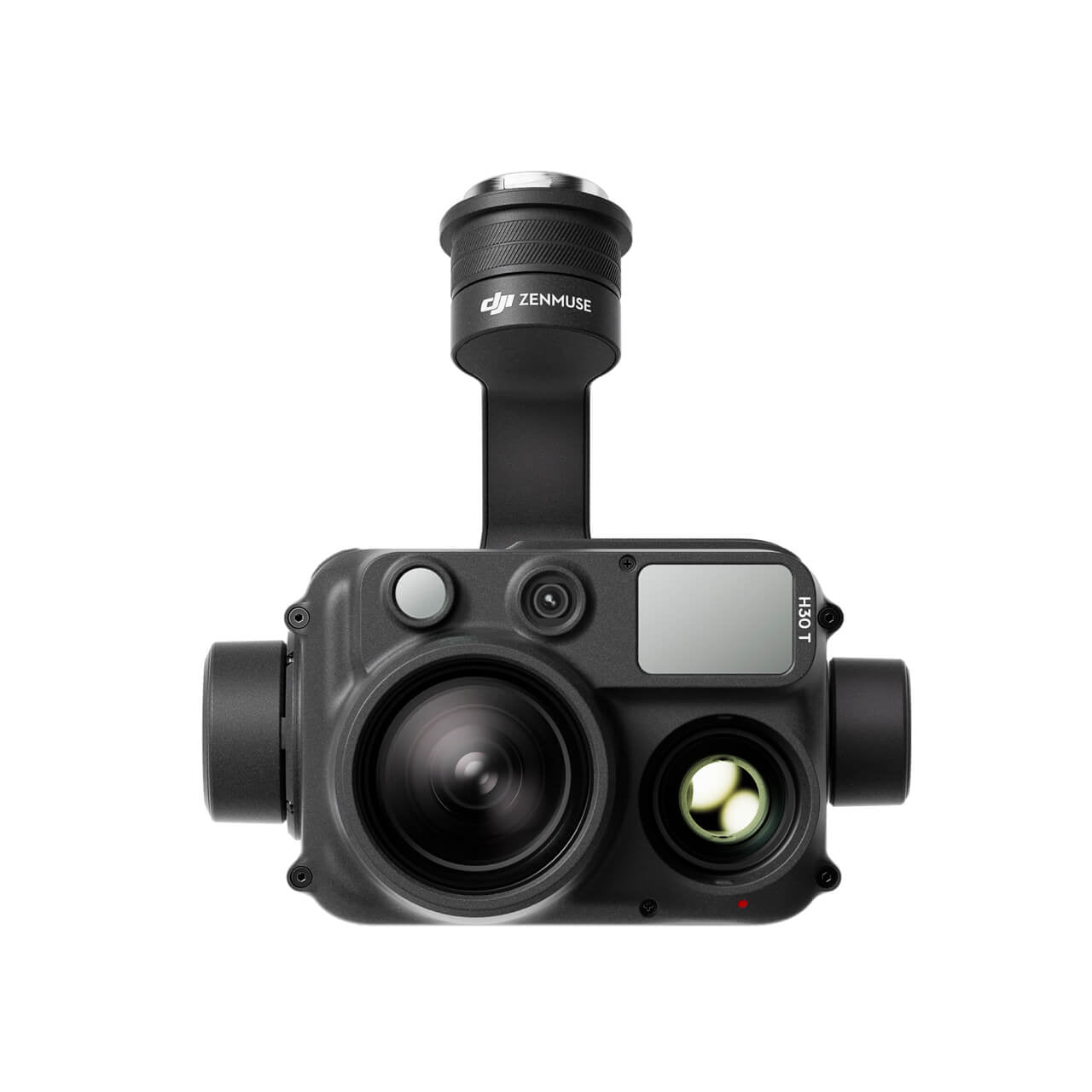

Zenmuse H30T: Redefining Aerial Versatility and Precision
Elevate every mission with the Zenmuse H30T—available through Dronefly. Building on the solid foundation of the H30, the H30T incorporates an advanced thermal imaging sensor to deliver unparalleled adaptability for a wide range of critical operations. From firefighting and search-and-rescue missions to essential infrastructure inspections, the H30T empowers professionals to navigate the most demanding challenges with accuracy and confidence.
A major leap forward is its Ultra HD thermal camera, now boasting a sharp 1280×1024 resolution that captures four times the detail of previous systems. This clarity is indispensable for pinpointing individuals in need of rescue or identifying thermal irregularities in high-stakes, rapidly changing environments. The H30T’s broad temperature detection range, spanning from -20°C to 1600°C, can be further optimized with an optional IR Density Filter lens—ideal for quick recognition of critical heat signatures in volatile scenarios.
Low-light and nighttime operations benefit from the H30T’s advanced imaging capabilities. Its enhanced night vision system supports both full-color and black-and-white viewing modes, complemented by a near-infrared auxiliary light for improved visibility in complete darkness. Seamless integration with DJI Matrice 350 RTK and Matrice 300 RTK drones—combined with full compatibility with the DJI RC Plus controller—ensures smooth workflows and reliable performance. For professionals who depend on high-caliber drone technology, the Zenmuse H30T from Dronefly delivers the power and precision needed to excel in every mission.
Specifications
General
- Weight: 920±5 g
- Ingress Protection Rating: IP54
- Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK
- Video Pre-Recording: Supported
- Angular Vibration Range: Hover: ±0.002°, Flight: ±0.004°
- Controllable Range: Tilt: -120° to +60°, Pan: ±320°
Infrared Thermal Camera
- Thermal Imager: Uncooled VOx Microbolometer
- Video Resolution: 1280×1024@30fps
- Photo Resolution: 1280×1024
- Photo Format: R-JPEG
- Max Digital Zoom: 32×
- Temperature Measurement Method: Spot Measurement, Area Measurement, Center Point Temperature Measurement
- Temperature Measurement Range: High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter), Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
- Noise Equivalent Temperature Difference (NETD): ≤50 mK @ f/1.0
- Lens: DFOV: 45.2°, Focal Length: 24 mm (Equivalent focal length: 52 mm), Aperture: f/0.95, Focus: 13 m to ∞
- High-Res Mode: Supported
- UHR Infrared Image: Supported
Zoom Camera
- Sensor: 1/1.8-inch CMOS, Effective Pixels: 40 MP
- Lens: DFOV: 66.7° to 2.9°, Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm), Aperture: f/1.6-f/5.2, Focus: 5 m to ∞
- Metering Mode: Spot Metering, Average Metering
- Shutter Speed: 2-1/8000 s
- ISO Range: Single Shot: 100-25600, Night Scene: 100-819200
- Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
- Video Format: MP4
- Video Subtitles: Supported (embedded subtitles)
- Max Photo Size: 7328×5496, 3664×2748
- Photo Format: JPEG
- Video Codec and Bit Rate Strategy: H.264, H.265, CBR, VBR
- Hybrid Optical Zoom: 34×
- Max Zoom: 400×
Wide-Angle Camera
- Sensor: 1/1.3-inch CMOS, Effective Pixels: 48 MP
- Lens: DFOV: 82.1°, Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm), Aperture: f/1.7, Focus: 1 m to ∞
- Shutter Speed: 2-1/8000 s
- ISO Range: Single Shot: 100-25600, Night Scene: 100-409600
- Video Resolution: Single Shot: 3840×2160@30fps, 1920×1080@30fps, Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
- Video Format: MP4
- Video Subtitles: Supported (embedded subtitles)
- Max Photo Size: 8064×6048, 4032×3024
- Photo Format: JPEG
- Video Codec and Bit Rate Strategy: H.264, H.265, CBR, VBR
Laser Range Finder
- Wavelength: 905 nm
- Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%), ≥ 500 m: ±1.0 m
- Measurement Range: 3-3000 m, Range for Common Objects: grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m
- Laser Spot Size: @100 m: approx. 50×450 mm, @1000 m: approx. 450×4500 mm
- Safety Regulation Level: Class 1
NIR Auxiliary Light
- Wavelength: 850 nm
- FOV: 4.6±0.6° (Round)
- Illumination Range: @100 m: Approx. 8m diameter circle
In the Box
- 1x Zenmuse H30T Gimbal Camera
- 1x Storage Case
- 1x Cleaning Cloth
