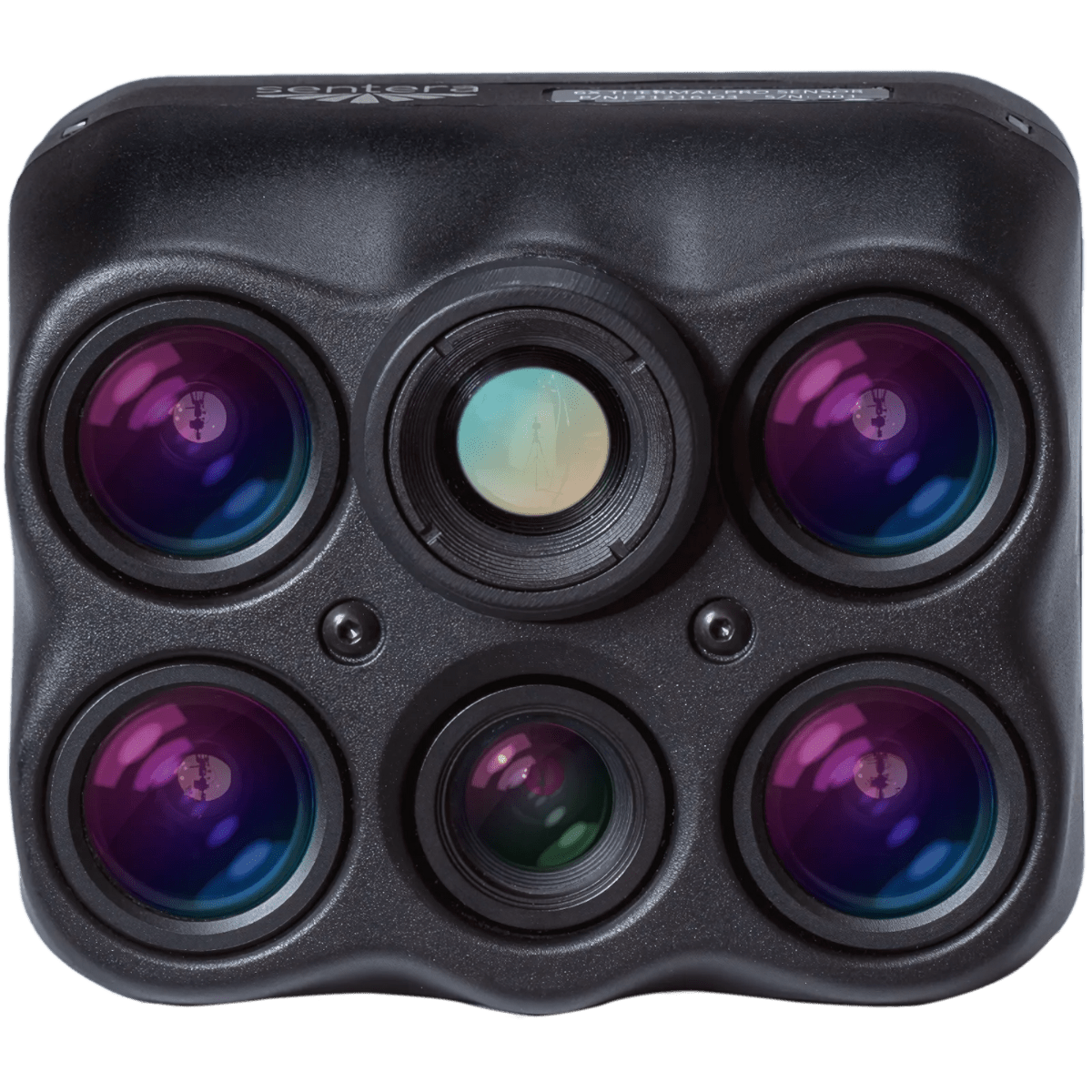

Sentera 6X Thermal Pro Sensor Kit for M300/M350

The Sentera 6X Thermal Pro Sensor Kit for DJI Matrice 300 and Matrice 350 revolutionizes aerial data capture by combining four 3.2MP global shutter multispectral imagers, a 20MP RGB camera, and a 640 FLIR Boson radiometric thermal imager. Experience best-in-class spectral accuracy, pixel-level temperature measurement, and an ultra-lightweight, gimbal-stabilized design for enhanced efficiency.

Key Features

Engineered for demanding missions, the 6X Thermal Pro delivers robust performance and versatility.

• Multi-Sensing Powerhouse: Radiometric thermal, multispectral VIS-NIR, and high-res RGB in one flight
• Superior Thermal Detail: 640 FLIR Boson sensor provides four times the resolution of standard thermal systems
• Fast Capture & Rig Processing: 5 fps sustained, with synchronized image capture and open data formats
• Large Internal Storage: 512GB SSD to handle extensive flight data seamlessly
• Easy Platform Integration: Plug-and-play support and common interfaces for stress-free setup
• Radiometric Accuracy: Incident light sensor and reflectance panel included for reliable calibration
• NDAA Compliance: Ensures secure deployment in professional environments

Applications

Utilize the 6X Thermal Pro's advanced capabilities to tackle complex scenarios in agriculture, environmental monitoring, and more.

• Evaporation & Water Stress Analysis: Pinpoint moisture variances for optimized irrigation strategies
• Thermal-Enhanced Mapping: Combine DSM/elevation with multispectral and RGB for deeper insights
• Residue Cover & Carbon Tracking: Support conservation efforts with precise, multi-layer data
• Crop Health & Disease Detection: Detect problems early to minimize losses and refine intervention
• Forest Fire Monitoring: Locate active flames and hot spots, improving safety and response times
• Soil & Vegetation Moisture: Gather in-depth data for resource management and agricultural planning

Why Buy from Dronefly

• In-depth drone and sensor expertise for professional applications
• Extensive inventory of complementary accessories and solutions
• Ongoing technical support for seamless integration and operation
• Competitive pricing that meets professional standards and budgets

Specifications

• Resolution
  • 2048px by 1536px (Multispectral)
  • 5184px by 3888px (RGB)
  • 640 x 512 (Thermal)
• Shutter Type
  • Global (Multispectral)
  • Electronic Rolling Shutter (RGB)
  • Shutterless (Thermal)
• Sensor
  • Sony IMX147 (RGB)
  • Sony IMX265 (Multispectral)
  • FLIR Boson 640R (Thermal)
• Power Input: 10.5 - 26V
• Power Consumption: 15W Typical, 18W Max
• Capture Rate: 5 FPS (0.2s interval)
• Storage: 512 GB Internal SSD
• Filter/Sensitivity (custom filtering is available)
  • Green: 550nm CWL x 20nm
  • Red: 670nm CWL x 30nm
  • Red Edge: 715nm CWL x 10nm
  • NIR: 840nm CWL x 20nm
  • RGB: IR cut 650nm
  • Thermal Infrared: Radiometric 8μm to 14μm
• Interfaces: USB-C 3.0, Gigabit Ethernet, PPS, Serial, Discrete I/O
• Supported Protocols: DJI, MAVlink V1 & V2, Custom
• Image Format: 8-bit JPEG (RGB), 12-bit TIFF (MSP), 16-bit TIFF (Thermal)
• Weight (Sensor only): 290g
• Weight (With gimbal)
  • Skyport: 505g
  • Smart Dovetail: 525g
  • Gremsy Hyper Quick: 500g
  • ILS adds 58g to total
• GSD @200ft (60m)
  • 1.0in / 2.6cm (MSP)
  • 0.4in / 1.0cm (RGB)
  • 3.4in / 8.75cm (LWIR)
• Field of View
  • 47° HFOV (MSP and RGB)
  • 50° HFOV (Thermal)
• Dimensions (Sensor Only): 79.5mm x 66mm x 67.5mm
• Dimensions (With Gimbal): 111.8mm x 126.2mm x 106.4mm

Compatibility

• Fully Integrated
  • DJI M350, M300, M210, M200
  • Inspired Flight IF800 Tomcat, IF1200
  • Freefly Astro
• Custom Integration Options
  • Gimbal Interfaces
    • Freefly Smart Dovetail
    • Gremsy Hyper Quick
  • Non-Gimbal Interfaces
    • JST GH (Serial, Power In, Ethernet, PPS PWM)
    • USB-C (USB)
    • 2-56 Threaded Mounting Holes (Mounting 6 Locations)

In The Box

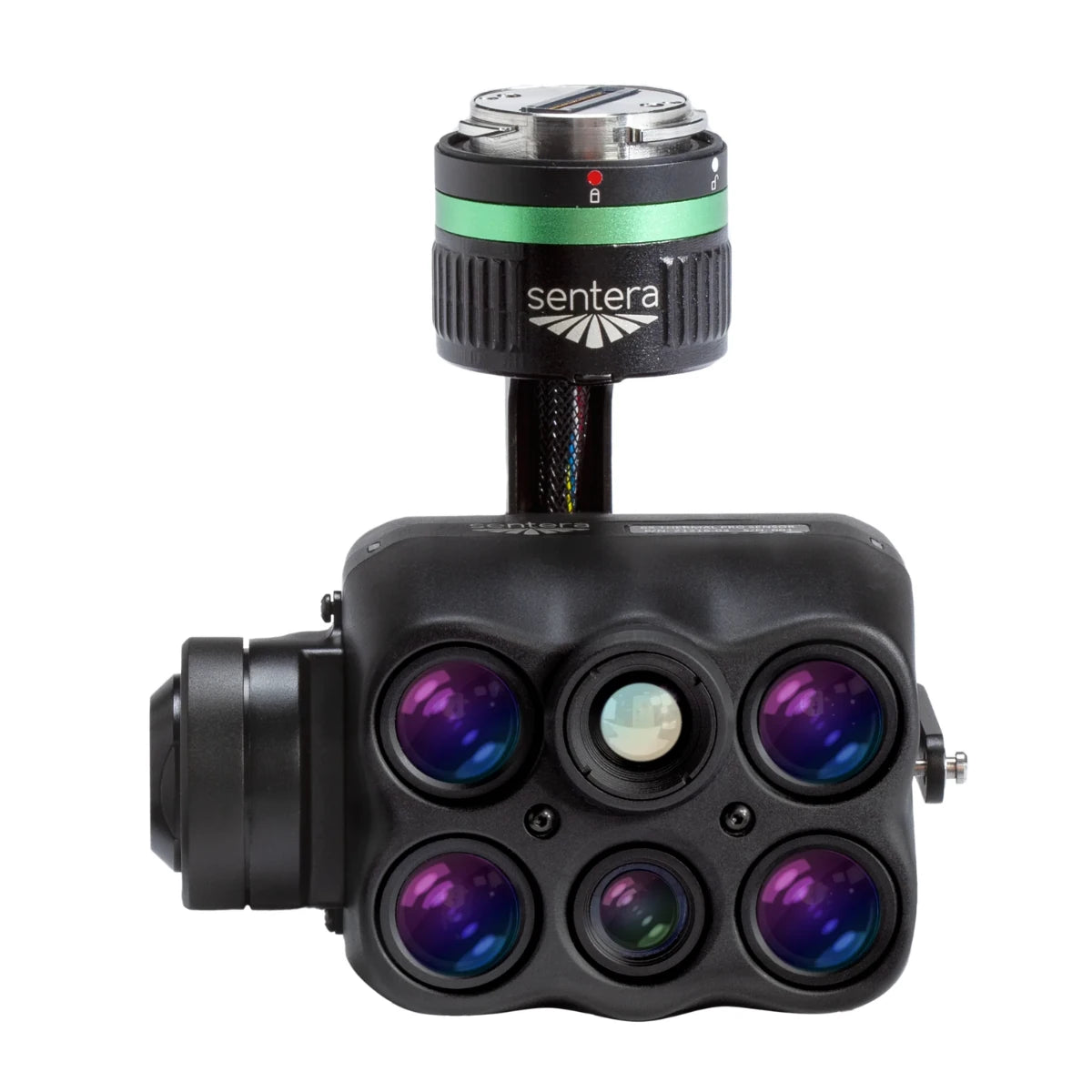

• 6X Thermal Pro Sensor with Gimbal
• ILS/GPS or GPS Only Module
• Mounting Brackets
