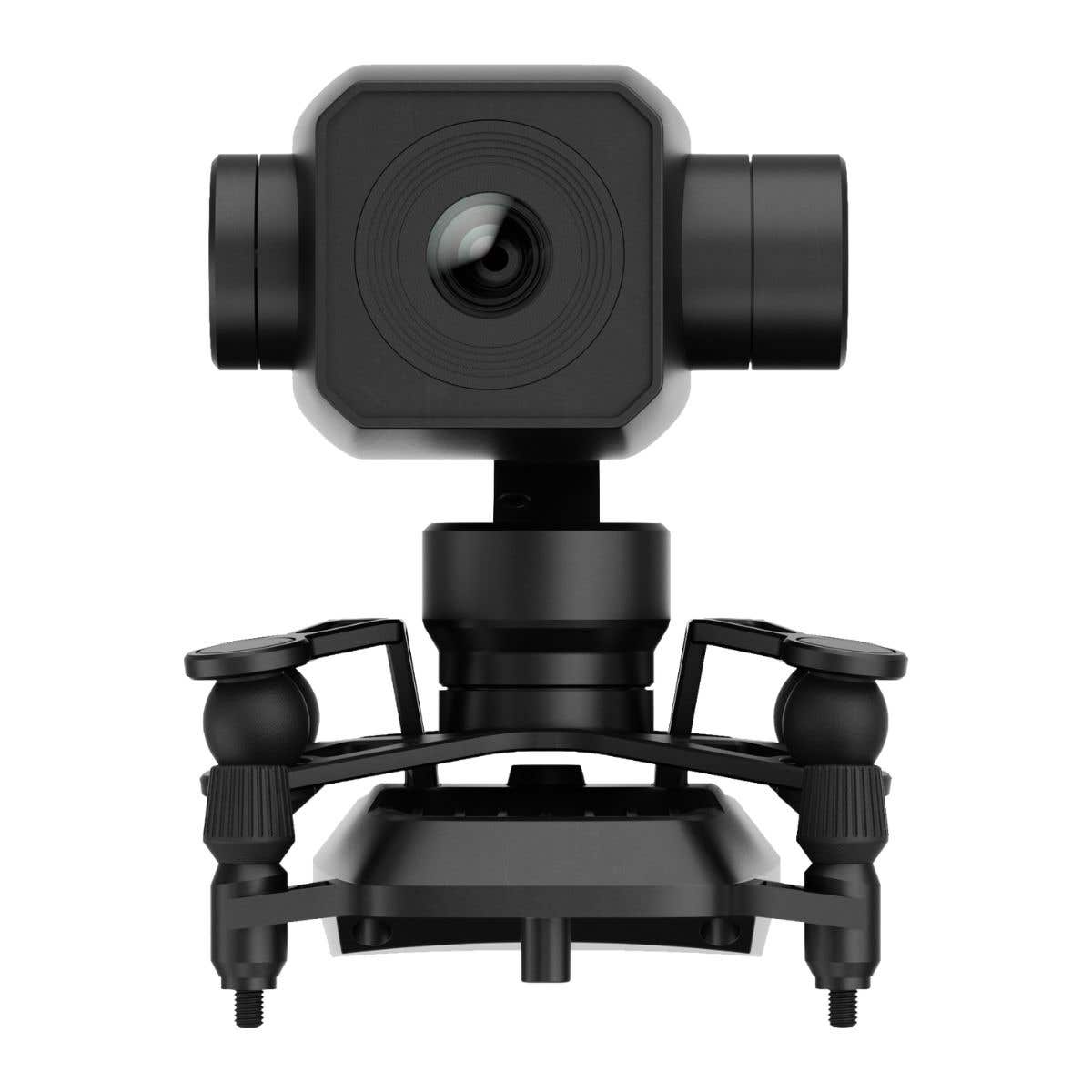

Enhance your night operations with the Deepthink S8 Night Vision Camera, specifically designed for the Mavic 3E/3T. This advanced night vision gimbal camera is ideal for public safety, firefighting, search and rescue, and aerial bridge inspections. Leveraging Deepthink's proprietary AI ISP technology, the S8 captures high-quality, color images even in extremely low-light environments.
The Deepthink S8 is equipped with a 1/1.8'' sensor and a world-leading AI ISP algorithm, allowing it to achieve true color imaging in lighting conditions as low as 0.0001 lux. Despite its powerful performance, the S8’s energy consumption remains low at around 3W, ensuring it supports the DJI Mavic 3E/3T’s maximum flight duration without draining the battery quickly.
Stability is key during night operations, and the S8 delivers with a 3-axis tilt angle stabilization range of ≤±0.005°, ensuring smooth and steady footage. Installation is straightforward with the e-port, and it easily connects to the DJI remote controller via PSDK, making it user-friendly and efficient for all operators.
Key Features
- Superior night vision with 1/1.8'' sensor and AI ISP technology
- Captures clear, color images in nearly 0.0001 lux lighting
- Low energy consumption (3W) maintains maximum flight time
- Excellent stability with 3-axis tilt angle stabilization (≤±0.005°)
- Simple connection to DJI Mavic 3E/3T via e-port
- Seamless control with DJI remote controller through PSDK
Specifications
- Image Sensor: 1/1.8" Ultra Low Lux CMOS
- Min Illumination: Full Color: 0.0008 Lux, No Fill Night
- Video Resolution: 4MP/Full Color 2688×1520P
- Video Frame Rate: 5fps~30fps
- Video Codec: H.264
- White Balance: Auto
- Gain Control: Auto
- No Fill Light: Supported
- OTA Firmware Upgrading: Supported
- WDR: 120 dB
- SNR: ＞48 dB
- AI Denoising: Supported
- AI HDR: Supported
- AI Defogging: Supported
- Exposure Mode: Auto
Lens
- Focal Length: Actual Focal Length: 15.40 ±5% mm (Equivalent focal length: 74.07 mm)
- Aperture: F1.6
- FOV (D×H×V): 33.4° (D) × 29° (H) × 16.4° (V)
- Day-Night Mode: X
Stabilization System
- Angular Vibration Range: ±0.005°
- Mechanical Range: Tilt: -30° to +90°
- Mounting: E-PORT
- Power Supply: 13.6 V/3.26 A
Interface
- MicroSD Card: Max 1 TB
General
- Power Consumption: ≥3 W
- Ingress Protection Rating: X
- Working Temperature: -20℃ to 60℃ (-4℉ to 140℉)
- Working Humidity: ≤95%
- Dimension: L94.2 mm × W71.1 mm × H90 mm
- Net Weight: Approx. 200 g
