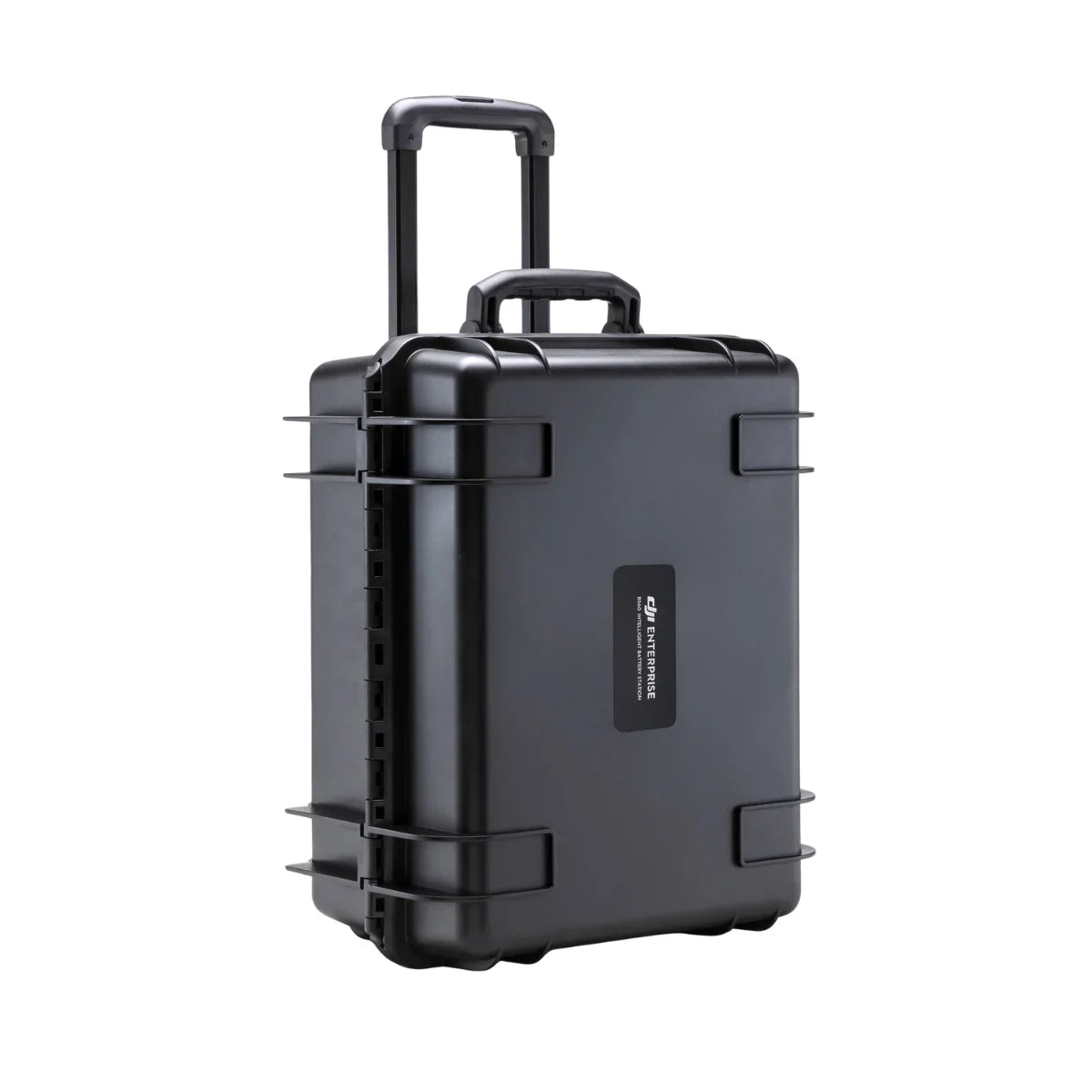

The DJI BS60 Intelligent Battery Station is designed to support extended missions with the Matrice 300 RTK by providing a mobile charging solution that accommodates 8 TB60 flight batteries and 4 WB37 remote controller batteries in a single unit.
This hard-shell case features 12 charging ports, smart power distribution, and rugged field durability. It uses internal logic to prioritize the most charged batteries, ensuring you can get airborne fast by charging the top two TB60s and one WB37 first. Once connected to the remote controller via USB Type-C (required), the DJI Pilot app can be used to control charging functions and perform firmware updates.
The BS60 includes built-in wheels, a carry handle, and a telescoping handle for transport, along with padlock holes, an automatic pressure valve, and locking clasps to protect your batteries during transit. It's ideal for field teams requiring high uptime and fast redeployment.
Specifications
- Protections: Anti-Backflow, Short Circuit, Overvoltage, Overcurrent, Temperature
-
Charging Time:
- 100-120 V: Up to 70 Minutes (1 x TB60 Battery)
- 220-240 V: Up to 60 Minutes (1 x TB60 Battery)
- Input Voltage: 100-120 to 220-240 VAC at 50-60 Hz
-
Output Power:
- 2 x TB60 at 100-120 VAC: 750 W, 52.8 V, 7 A
- 2 x TB60 at 220-240 VAC: 992 W, 52.8 V, 8.9 A
- 1 x WB37: 8.7 V, 6 A
-
Power:
- Without Load: <8 W
- Warming up the Battery: 52.8 V, 2 A
- Operating Temperature: -4 to 104°F / -20 to 40°C
- Ports: 12 x Battery, 1 x USB Type-C
- Load Capacity: Maximum Load: Up to 26.5 lb / 12.0 kg
- Dimensions: 19.7 x 15.9 x 9.9" / 50.1 x 40.3 x 25.2 cm
- Weight: 18.5 lb / 8.4 kg
In The Box
- 1x DJI BS60 Intelligent Battery Station for Matrice 300 RTK
- 1x AC Power Cable
