Precise LiDAR data collection with LiAir X3C-H

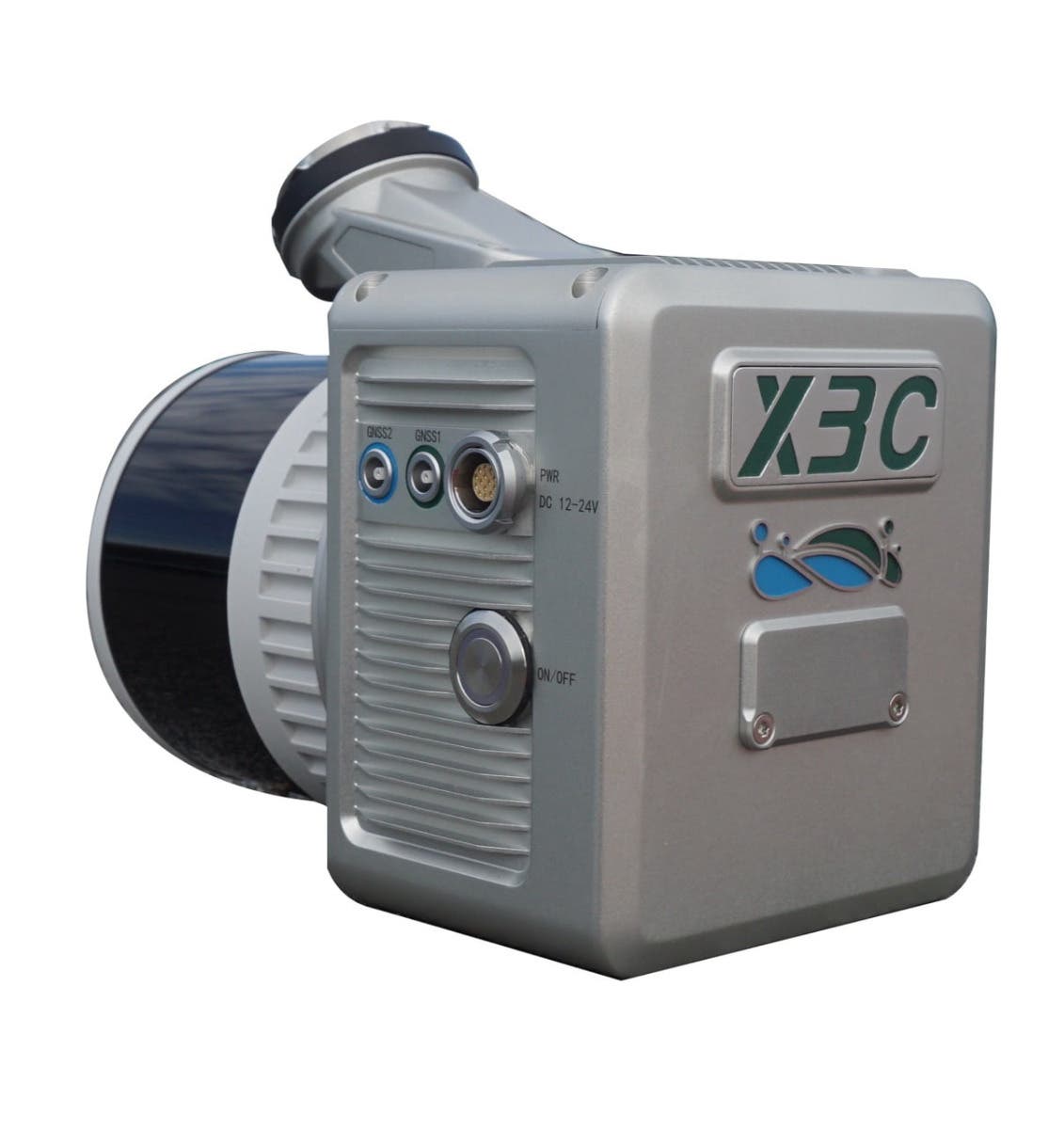

The GreenValley LiAir X3C-H Compact UAV LiDAR System is an advanced tool designed for industries such as power line inspection, topographic surveying, agricultural monitoring, and forest management.
This next-generation system integrates lightweight LiDAR, a high-performance navigation system, and a high-resolution camera, making it a versatile and powerful tool for precise data collection in a compact design.
Lightweight and efficient design

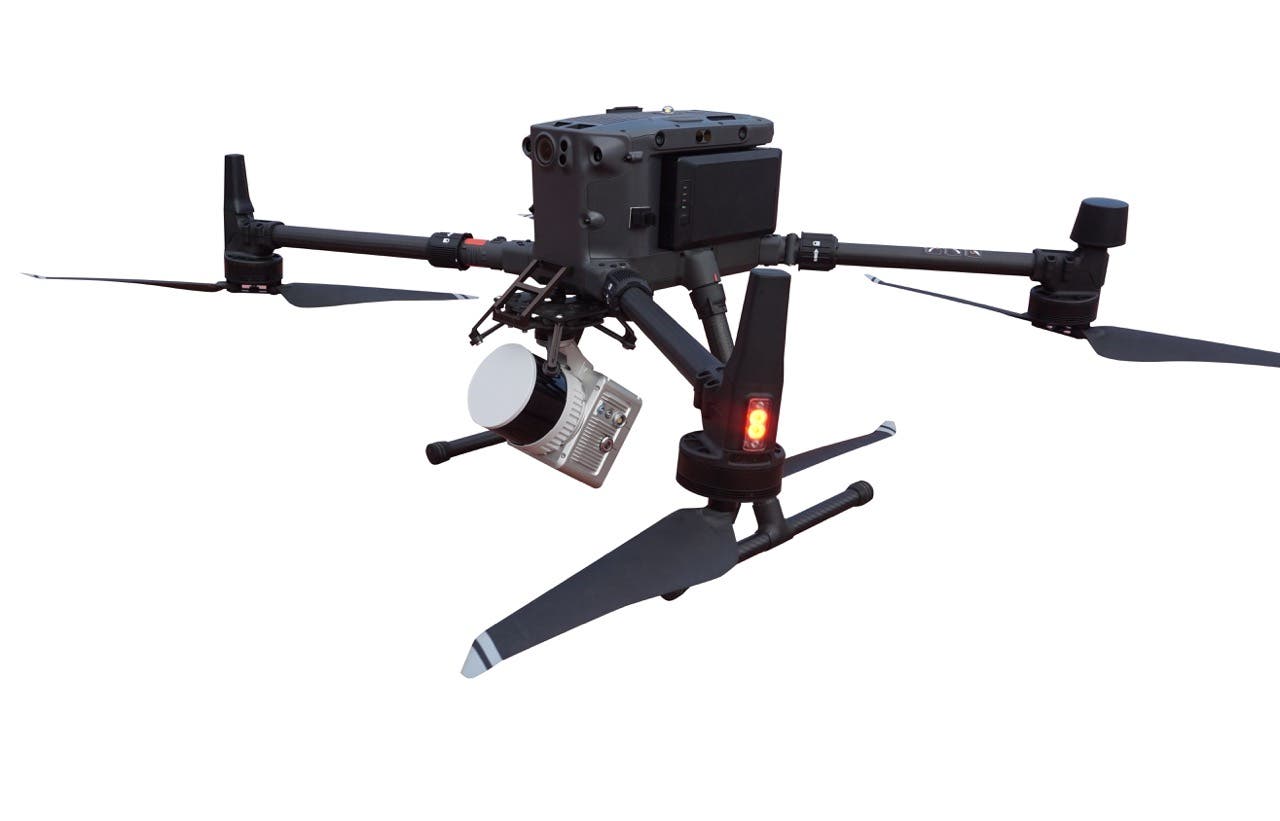

Weighing only 1.12 kg, the LiDAR camera is designed for portability and ease of use on UAV platforms like the Matrice 300 and Matrice 350 series.

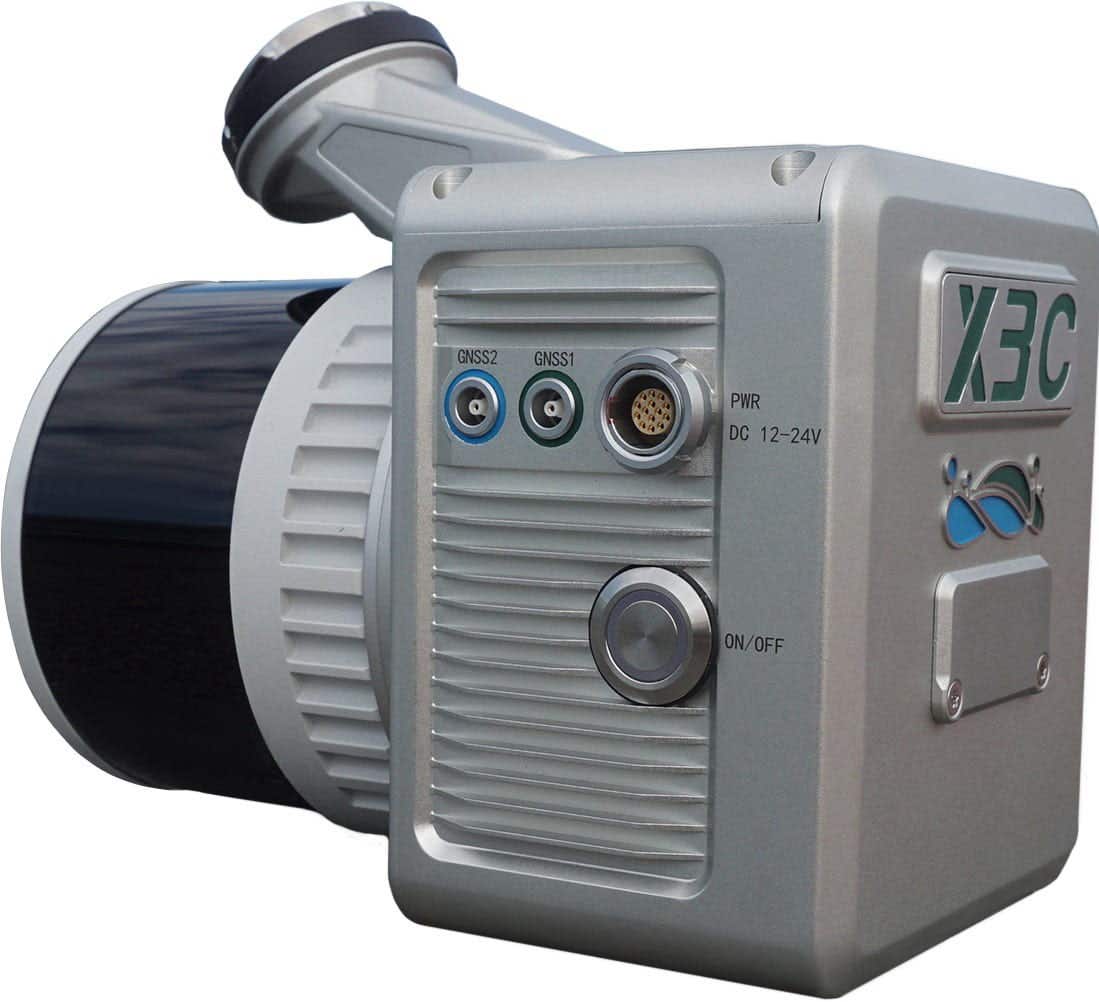

The system operates on 12 to 24 volts, consuming just 24 watts of power, making it highly efficient for extended missions. It includes a 256GB TF card, offering substantial onboard storage for extensive data collection during flights.
Superior detection range and accuracy
The LiAir X3C-H is capable of detecting objects up to 300 meters away, depending on the surface reflectivity. It can detect up to 80 meters at 10% reflectivity, 200 meters at 54% reflectivity, and 300 meters at 90% reflectivity.
This range, combined with a vertical accuracy of ±5 centimeters at 70 meters, ensures you capture highly detailed and precise data, even in complex terrains.
High-resolution imaging capabilities
The device's 26-megapixel camera delivers exceptional image quality, allowing for detailed analysis and mapping.
With a resolution of 6252 x 4168 pixels and the choice between 16mm or 24mm focal lengths, the camera captures vivid and clear images that enhance the quality of your color point clouds and orthophotos.
This high-level detail is critical for applications that require accurate visual data, such as urban planning and environmental monitoring.
Wide field of view and high point rate
Offering a 360° horizontal and 40.3° vertical field of view, the LiAir X3C-H covers extensive areas with each flight. Its point rate is remarkable, with the ability to capture 640,000 points per second with a single return, 1,280,000 points per second with dual returns, and 1,920,000 points per second with triple returns.
This feature ensures that point clouds are evenly distributed, making your 3D models and maps more accurate and reliable.
Precision navigation and smart flight controls
The camera system is equipped with an advanced inertial navigation system that uses GPS, GLONASS, Galileo, and BD satellites to maintain precise positioning.
With an azimuth accuracy of 0.038 degrees and attitude accuracy of 0.008 degrees, the system ensures consistent data collection throughout your flight. The intelligent flight control feature automates the data collection process, minimizing redundancies and ensuring you collect only the most relevant data.
Built to withstand diverse environments
Designed to perform in a wide range of conditions, it can operate in temperatures from -20°C to 50°C and be stored safely between -30°C and 60°C.
This robustness ensures that the system can handle the demands of different environments, whether you're surveying in tropical climates or colder regions.
Optional post-processing software for enhanced analysis
To fully leverage the capabilities of the LiAir X3C-H, optional post-processing software like LiDAR360 is available. These programs offer advanced tools for managing, processing, and analyzing the data collected by the LiDAR system, transforming raw data into valuable insights.
Whether you're involved in power line inspection, forest management, or environmental monitoring, this software enhances your ability to make informed decisions based on accurate data.
Specifications
System Specifications
Detection Range:
80 m (reflectivity ≥ 10%)
200 m (reflectivity ≥ 54%)
300 m (reflectivity ≥ 90%)
Accuracy (Vertical): 5 cm @ 70m
Typical Flight Speed: 5-10 m/s
Weight: 1.12 kg
Memory: 256 GB TF Card
Voltage: 12~24 V
Power Consumption: 24 W
Operating Temperature: -20~50 ℃
Storage Temperature: -30~60 ℃
Communication: WIFI
LiDAR Unit
Wavelength: 905 nm
Number of Channels: 32
Point Rate:
First Return: 640,000 points/s
Dual Return: 1,280,000 points/s
Triple Return: 1,920,000 points/s
FOV: 360° (Horizontal)×40.3° (Vertical)
Number of Returns: 3
Inertial Navigation System
GNSS: GPS, GLONASS, Galileo, BD
Azimuth Accuracy: 0.038°
Attitude Accuracy: 0.008°
IMU Data Frequency: 200 Hz
Camera
Pixels: 26 Megapixels
Image Size: 6252×4168
Focal Length: 16 mm / 24 mm (Equiv. Focal Length)
Software
Pre-processing: LiGeoreference
Post-processing: LiDAR360 / LiPowerline (Optional)
Compatible Platforms
Platforms: DJI, Freefly, etc.
In the Box
- 1x GreenValley LiAir X3C-H Compact UAV LiDAR System
