Advanced LiDAR for comprehensive surveying

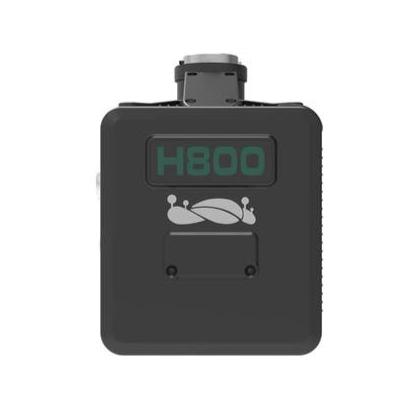

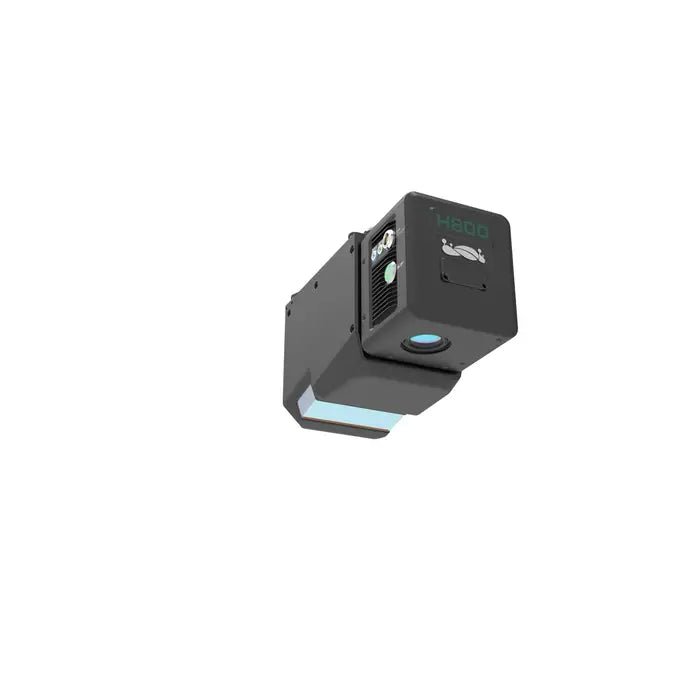

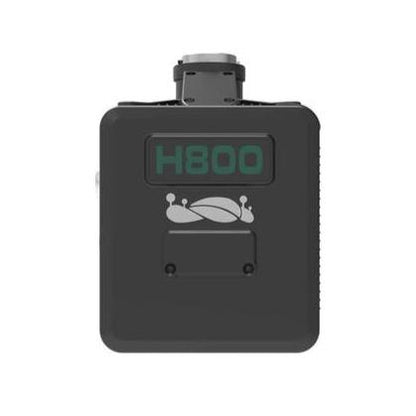

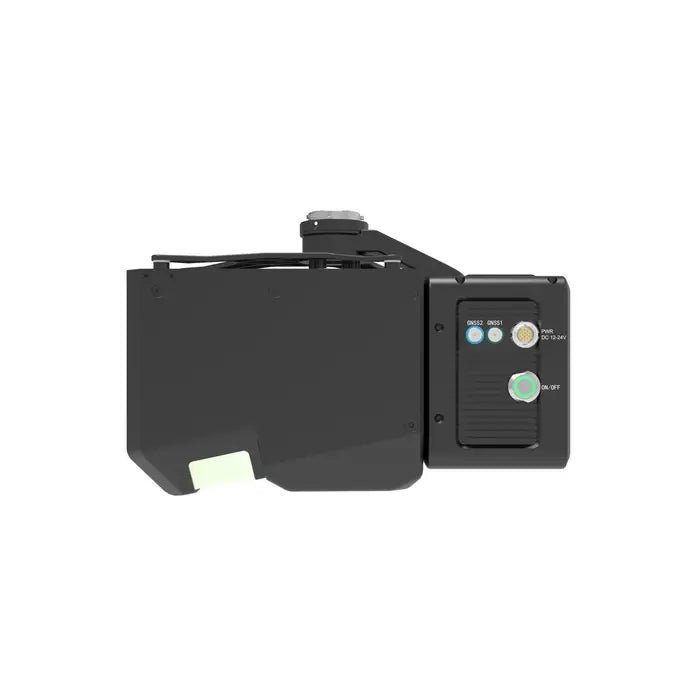

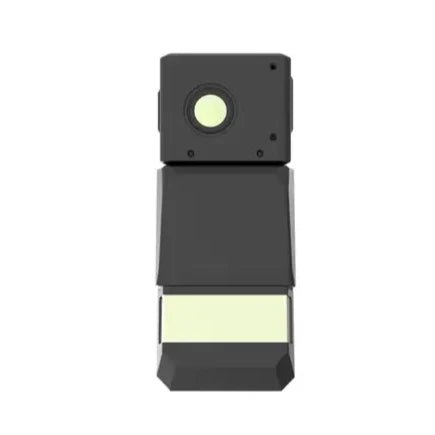

The GreenValley LiAir H800 is a state-of-the-art medium-to-long-range UAV LiDAR system developed to address the needs of professionals in industries such as power line inspection, forest monitoring, emergency disaster assessment, and detailed mapping and surveying.
This next-generation system integrates lightweight LiDAR, a high-performance navigation system, and a high-resolution camera, providing a versatile and powerful tool for precise data collection.
Lightweight and efficient design

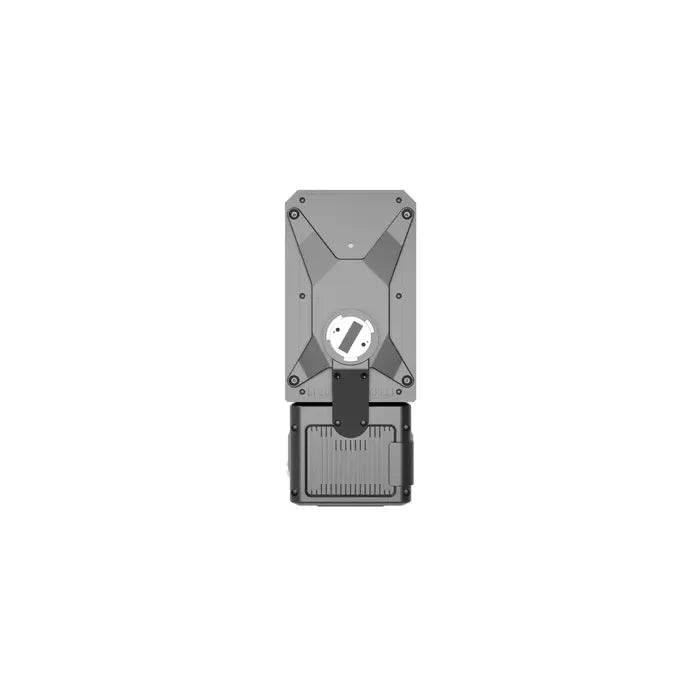

Weighing just 2.25 kg, the device is both portable and powerful, easily fitting onto UAV platforms like the M350 and M300 RTK.
The system operates on 18 to 24 volts and consumes only 61 watts of power, making it highly efficient for long missions. It includes a 256GB TF card, offering substantial onboard storage for extensive data collection during flights.
Superior detection range and accuracy
This LiDAR payload is capable of detecting objects up to 1000 meters away under optimal conditions, making it highly effective for large-scale surveys. It can detect up to 350 meters at just 10% reflectance, 790 meters at 50% reflectance, and 1000 meters at 80% reflectance.
This range, combined with a vertical accuracy of ±5 centimeters, ensures you capture highly detailed and precise data, even in complex terrains.
High-resolution imaging capabilities
The LiAir H800’s 26-megapixel camera delivers exceptional image quality, allowing for detailed analysis and mapping.
With a resolution of 6252 x 4168 pixels and the choice between 16mm or 24mm focal lengths, the camera captures vivid and clear images that enhance the quality of your color point clouds and orthophotos.
This high-level detail is critical for applications that require accurate visual data, such as urban planning and environmental monitoring.
Wide field of view and adaptive scanning
Offering a 100-degree field of view, the camera covers extensive areas with each flight. Its adaptive scan speed, with data frequencies ranging from 100 to 1000 kHz, ensures that point clouds are evenly distributed, making your 3D models and maps more accurate.
This feature is particularly beneficial when surveying areas with varying terrain or vegetation density.
Precision navigation and smart flight controls
The LiDAR system equipped with a sophisticated inertial navigation system that uses GPS, GLONASS, Galileo, and BD satellites to maintain precise positioning. With azimuth accuracy of 0.019 degrees and attitude accuracy of 0.006 degrees, the system ensures consistent data collection throughout your flight.
The intelligent flight control feature automates the data collection process, minimizing redundancies and ensuring you collect only the most relevant data.
Built for diverse environments
Designed to perform in a wide range of conditions, this UAV payload can operate in temperatures from -20°C to 50°C and be stored safely between -30°C and 60°C.
This robustness ensures that the system can handle the demands of different environments, whether you're surveying in tropical climates or colder regions.
Optional post-processing software for enhanced analysis
To fully leverage the capabilities of the LiAir H800, optional post-processing software like LiDAR360 and LiPowerline is available.
These programs offer advanced tools for managing, processing, and analyzing the data collected by the LiDAR system, transforming raw data into valuable insights.
Whether you're involved in power line inspection, forest management, or disaster assessment, this software enhances your ability to make informed decisions based on accurate data.
Enhance your UAV LiDAR operations—order the LiAir H800 today at Dronefly!
Specifications
System Parameters
Detection Range:
350 m @ 10% reflectivity
790 m @ 50% reflectivity
1000 m @ 80% reflectivity
Accuracy (Vertical): ±5 cm
Weight: 2.25 kg
Memory: 256 GB TF Card
Voltage: 18~24 V
Storage Temperature: -30~60 ℃
Power Consumption: 61 W
Operating Temperature: -20~50 ℃
Communication: WIFI
LiDAR Unit
Wavelength: 1535 nm
Repeatability Accuracy: 3 mm @ 100 m
FOV: 100°
Data Frequency: 100~2000 kHz
Number of Returns: Unlimited Waveform Returns[1]
Inertial Navigation System
GNSS: GPS, GLONASS, Galileo, BD
Azimuth Accuracy: 0.019°
IMU Data Frequency: 1000 Hz
Attitude Accuracy: 0.006°
Camera
Pixels: 26 MP
Focal Length: 16 mm / 24 mm (Equiv. Focal Length)
Point Cloud Formats: 6252×4168
Software
Control Software: GreenValley
Pre-processing: LiGeoreference
Post-Processing: LiDAR360 / LiPowerline (Optional)
Note: [1] The theoretical maximum number of returns can only be achieved under specific conditions and is constrained by the actual test scenario.
In the Box
- 1x GreenValley LiAir H800 UAV LiDAR System
