See Beyond the Visible with FLIR Vue TZ20 Thermal Camera
The dual-Boson® FLIR Vue® TZ20 plug-and-play payload is designed to improve mission success and is fully integrated with the DJI Matrice 200 V2 series and Matrice 300 airframes.

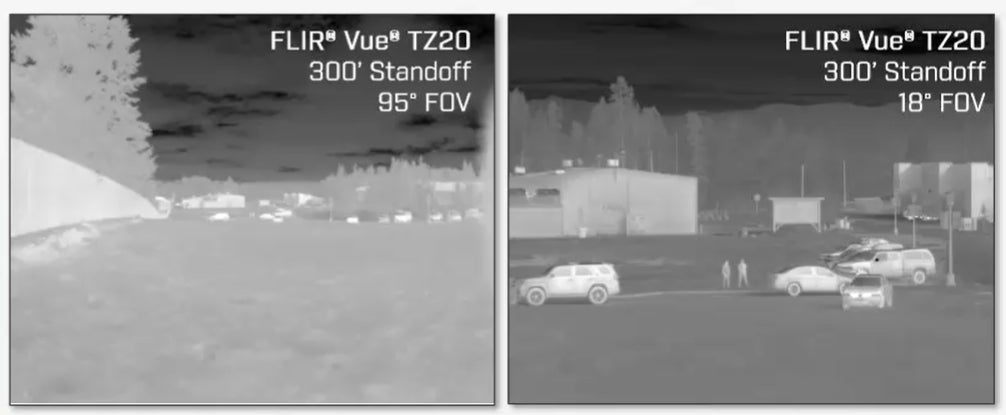

This system provides a wide 95-degree field of view for maximum situational awareness and a narrow 18-degree field of view to put more pixels on target when needed.
With 20X zoom capabilities, the FLIR Vue TZ20 allows drone pilots from the public safety and industrial inspection sectors to gain field of view flexibility for improved image detail and magnification to assess situations and make critical decisions.
20X THERMAL ZOOM TO SUPPORT SITUATIONAL AWARENESS
Features wide field of view to cover large areas in a single flight or narrow in on a target with 2x to 20x zoom for enhanced image detail.
HIGH RESOLUTION DUAL FLIR BOSON CAMERAS
Factory calibrated, dual 640 × 512 Boson thermal cameras equipped with expandable infrared video streaming at 30 Hz.
-
Enhanced Situational Awareness: The broad to narrow zoom capability allows operators to survey vast areas quickly or focus in on specific points of interest, improving both safety and operational efficiency.
-
Operational Versatility: Suitable for a range of applications, from law enforcement and emergency response to infrastructure inspection and environmental monitoring.
-
Easy Integration and Use: The camera's compatibility with popular DJI drones and its plug-and-play design minimizes setup time and technical challenges.
-
Reliable Performance in Diverse Conditions: Built to withstand adverse weather, ensuring reliable operation when it's most needed.
-
Superior Image Quality: High-resolution sensors and stabilization technology work together to deliver clear, detailed thermal images and videos.
-
Flexible Imaging Techniques: With features like adjustable zoom levels, multiple color palettes, and selectable scene dynamic ranges, operators can tailor the imaging to meet specific needs.
-
Streamlined Data Handling: Quick and straightforward data retrieval from dual SD cards enables efficient post-mission analysis and reporting.
READY TO FLY OUT OF THE BOX
-
Public Safety: Used extensively by law enforcement and emergency services to manage search and rescue operations, the FLIR Vue TZ20 helps locate persons in obscured or challenging environments by detecting heat signatures. Firefighters also use it to identify hotspots in burning structures or during wildfire assessments.
-
Infrastructure Inspection: Enables precise and efficient inspection of critical infrastructure, such as power lines, wind turbines, and pipelines. The camera’s thermal zoom capabilities allow for detailed examination of structural integrity from a safe distance, identifying potential faults or heat anomalies indicative of equipment failure.
-
Environmental Monitoring: Essential for wildlife researchers and environmental agencies, this camera facilitates the observation and monitoring of natural habitats. It aids in tracking animal movements, studying nocturnal species, and managing ecosystems without disturbing the natural order.
-
Agriculture: Farmers and agricultural managers employ the TZ20 to monitor crop health and irrigation systems, detecting areas needing attention by analyzing temperature variations that indicate water stress or disease.
-
Security Surveillance: Ideal for perimeter monitoring and securing sensitive areas, the thermal imaging capabilities allow security personnel to detect intrusions or unauthorized activities in complete darkness, through smoke, or obscured weather conditions.
-
Maritime Navigation: Assists in navigating waters by identifying floating objects, vessels, or individuals overboard, particularly in foggy or dark conditions where visual navigation is compromised.
-
Industrial Energy Audits: Used by energy auditors to assess the thermal efficiency of buildings and industrial plants, pinpointing heat leaks and areas with insufficient insulation, thereby helping in optimizing energy consumption and reducing operational costs.
Why Dronefly Should Be Your Go-To Drone Source
At Dronefly, each purchase comes with the assurance of exceptional quality and more:
-
Dedicated Support: Our expert team is ready to assist with all your drone-related questions.
-
Quick, dependable shipping: We prioritize getting your drone parts to you swiftly and without hassle.
-
Trusted retailer: Shop with confidence knowing that Dronefly is an authorized reseller of reputable drone brands, offering only authentic, warrantied items.
Specifications
OVERVIEW
- Dimensions Payload: 75 × 70 × 55 mm
- With gimbal: 128 × 154 × 141 mm
- Pixel Pitch: 12 µm LWIR
- Thermal Sensitivity: 85 mK @ F/1.0
- Weight: 640 g
- Zoom: 5x optical (WFOV/NFOV), 4x digital
- Effective zoom: 1x (95°), 2x, 5x, 10x, 20x (4.5°)
- Ground Control: DJI Pilot App
- Airframe Capatibility: DJI V2 Matrice 200-series and Matrice 300
ELECTRICAL & MECHANICAL
- Mechanical Interface: Skyport 2.0
ENVIRONMENTAL & APPROVALS
- Storage: 2 micro SD cards
- Operational & Storage Temperature: -20 to 45°C (-4 to 113°F)
- Tested EMI Performance: -20 to 60°C (-4 to 140°F)
- Environmental Sealing: IP44
IMAGING & OPTICAL
- Array format: 2 Boson 640 × 512
- Streaming Video: 640 × 512 @ 25 HZ
- IR Camera Optics: Wide FOV: 95° HFOV, 4.9 mm EFL | Narrow FOV: 18° HFOV, 24 mm EFL
METER DATA
- Recording Still: TIFF | Video: MPEG (same as streaming) | Multipage TIFF: wide and narrow FOV
POWER
- Electrical Interface: Skyport 2.0, 13.6 V/4 A
In The Box
- 1x FLIR Vue TZ20 Camera and Gimbal unit
