DJI Matrice 30

DJI Matrice 30 Drone Bundle – Power, Precision, and Performance in Every Flight

The DJI M30 series of drones feature several high-performance sensors, are lightweight and portable, and are weatherproof. The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two DJI TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.

Capture everything with unrivaled aerial intelligence

The M30 Series combines a laser rangefinder with wide, zoom, and thermal cameras (M30T only), allowing you to gather the aerial data you need when you need it.

Dependable and secure

Dual-vision and ToF sensors are installed on all six sides of the aircraft, ensuring the safety of the aircraft and your mission. The built-in ADS-B receiver alerts you to any oncoming crewed aircraft in the area.

Transmission Enhancement

OcuSync 3 Enterprise supports triple-channel 1080p video transmission and flawless switching between input sources, even in difficult situations, thanks to four built-in antennae. DJI Cellular Module, an optional 4G dongle that allows steady video transmission in difficult or remote business scenarios, will strengthen your connection.

Portable and lightweight

The DJI M30 Series is easy to pack, carry, and deploy because it is compact and collapsible.

BS30 Intelligent Battery Station

A smart, portable solution with numerous charging options is available to fulfill your mission demands. The charger can charge four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries at once, with each pair needing only 30 minutes to charge from 20% to 90%.

TB30 Intelligent Flight Battery

For greater operational efficiency, each battery features self-heating for cold conditions, hot-swapping for quick turnarounds, and 400 charge cycles.

DJI Cellular Module

Provides a 4G-based transmission link between the drone and the remote controller, as well as allows the remote controller to connect to the internet.

Industry-Specific Applications Of DJI Matrice 30

• Public Safety and Emergency Response: Ideal for search and rescue operations, allowing for rapid deployment and real-time aerial view, which is crucial for situational awareness and operational planning.
• Infrastructure Inspection: Utilized extensively for inspecting critical infrastructure such as bridges, roads, and power lines, providing detailed imagery to identify issues without the need for close human interaction.
• Environmental Monitoring: Supports environmental scientists in monitoring wildlife, vegetation, and water bodies, aiding in the collection of data over large areas with minimal disturbance to natural habitats.
• Construction and Surveying: Offers significant advantages in the construction industry for site surveying and monitoring, helping teams maintain timelines and monitor progress without the need for physical presence on site.
• Film and Media Production: The precision control and high-quality imaging capabilities make it suitable for film and media, capturing high-definition footage from unique angles.
• Agricultural Management: Helps in precision agriculture by assessing crop health, monitoring irrigation, and managing agricultural land more efficiently, leading to increased productivity.

Why Shop at Dronefly?

Choosing Dronefly means accessing the premium drone technology with added benefits:

• Professional Consultation: Our drone specialists are on standby to help you with any inquiries related to your drone and its accessories.
• Swift Delivery: We prioritize fast and reliable delivery services to ensure your drone parts reach you promptly.
• Certified Reseller: As an official distributor for major drone manufacturers, Dronefly guarantees genuine, high-quality products complete with manufacturer warranties.

Specifications

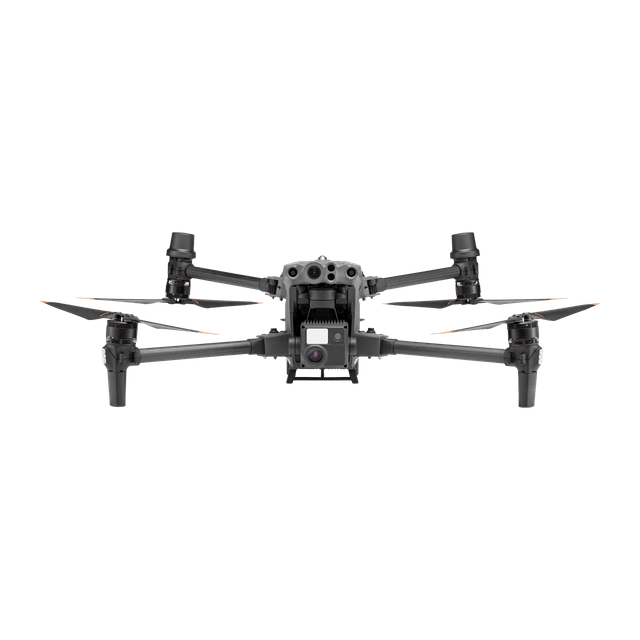

Aircraft

• Dimensions (unfolded, excl. propellers): 470 × 585 × 215 mm (L × W × H)
• Dimensions (folded): 365 × 215 × 195 mm (L × W × H)
• Diagonal Wheelbase: 668 mm
• Weight (incl. two batteries): 3770 ± 10 g
• Max Takeoff Weight: 4069 g
• Max Takeoff Weight for C2 Certification in EU: 3998 g
• Operation Frequency: 2.4000 – 2.4835 GHz, 5.725 – 5.850 GHz
• Transmitter Power (EIRP):
  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
  • 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
• Hovering Accuracy (windless or breezy):
  • Vertical: ±0.1 m (Vision System enabled), ±0.5 m (N-mode with GPS), ±0.1 m (RTK)
  • Horizontal: ±0.3 m (Vision System enabled), ±1.5 m (N-mode with GPS), ±0.1 m (RTK)
• RTK Positioning Accuracy (fixed RTK enabled):
  • Horizontal: 1 cm + 1 ppm
  • Vertical: 1.5 cm + 1 ppm
• Max Angular Velocity:
  • Pitch: 150°/sec
  • Yaw: 100°/sec
• Max Pitch Angle: 35° (N-mode and Forward Vision System enabled: 25°)
• Max Ascent/Descent Speed:
  • Ascent: 6 m/s
  • Descent: 5 m/s
• Max Tilt Descent Speed: 7 m/s
• Max Horizontal Speed: 23 m/s
• Max Service Ceiling Above Sea Level (without other payload):
  • 5,000 m (with 1671 propellers)
  • 7,000 m (with 1676 propellers)
• Max Wind Resistance: 12 m/s
• Max Hover Time: 36 min
• Max Flight Time: 41 min
• Motor Model: 3511

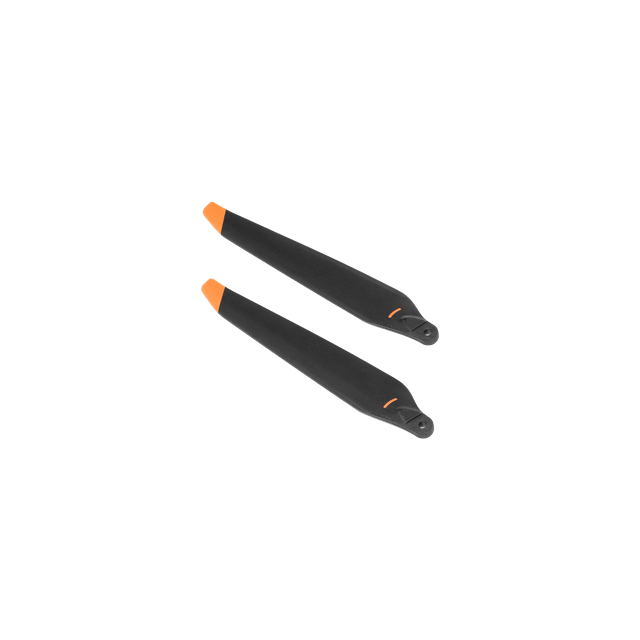

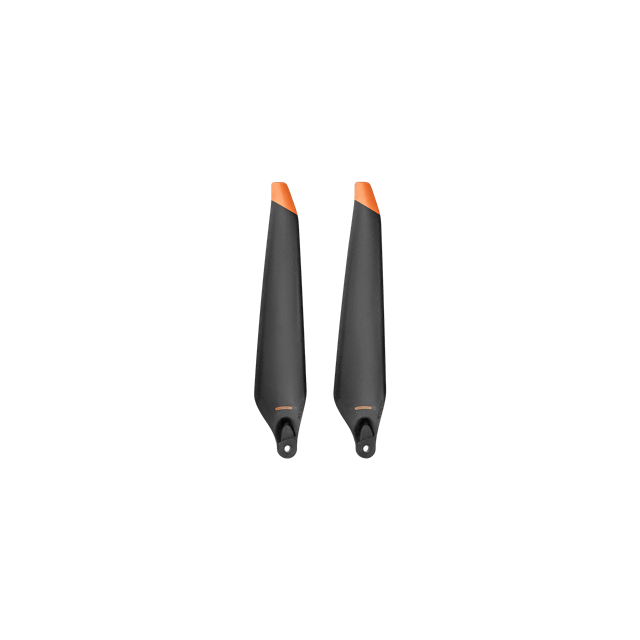

• Propeller Model: 1671, 1676 High Altitude (not included)
• Ingress Protection Rating: IP55
• GNSS: GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Class: C2 (EU)

Gimbal

• Angular Vibration Range: ±0.01°
• Controllable Range: Pan: ±90°, Tilt: -120° to +45°
• Mechanical Range: Pan: ±105°, Tilt: -135° to +60°, Roll: ±45°

Zoom Camera

• Sensor: 1/2" CMOS, Effective pixels: 48 MP
• Lens:
  • Focal length: 21–75 mm (equivalent: 113–405 mm)
  • Aperture: f/2.8–f/4.2
  • Focus: 5 m to ∞
• Exposure Compensation: ±3 EV (1/3 EV step)
• Electronic Shutter Speed:
  • Auto Mode: Photo: 1/8000–1/2 s, Video: 1/8000–1/30 s
  • M Mode: Photo: 1/8000–8 s, Video: 1/8000–1/30 s
• ISO Range: 100–25600
• Max Video Resolution: 3840 × 2160
• Max Photo Size: 8000 × 6000

Wide Camera

• Sensor: 1/2" CMOS, Effective pixels: 12 MP
• Lens:
  • DFOV: 84°
  • Focal length: 4.5 mm (equivalent: 24 mm)
  • Aperture: f/2.8
  • Focus: 1 m to ∞
• Exposure Compensation: ±3 EV (1/3 EV step)
• Electronic Shutter Speed:
  • Auto Mode: Photo: 1/8000–1/2 s, Video: 1/8000–1/30 s
  • M Mode: Photo: 1/8000–8 s, Video: 1/8000–1/30 s
• ISO Range: 100–25600
• Max Video Resolution: 3840 × 2160
• Photo Size: 4000 × 3000

Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
• Lens:
  • DFOV: 61°
  • Focal length: 9.1 mm (equivalent: 40 mm)
  • Aperture: f/1.0
  • Focus: 5 m to ∞
• Noise Equivalent Temperature Difference (NETD): ≤50 mK @ F1.0
• Infrared Temperature Measurement Accuracy: ±2°C or ±2% (whichever is larger)
• Video Resolution:
  • Infrared Image Super-resolution Mode: 1280 × 1024
  • Normal Mode: 640 × 512
• Photo Size:
  • Infrared Image Super-resolution Mode: 1280 × 1024
  • Normal Mode: 640 × 512
• Pixel Pitch: 12 μm
• Temperature Measurement Method: Spot Meter, Area Measurement
• Temperature Measurement Range:
  • High Gain Mode: -20° to 150° C (-4° to 302° F)
  • Low Gain Mode: 0° to 500° C (32° to 932° F)
• Temperature Alert: Supported
• Palette: White Hot, Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1, Rainbow 2

FPV Camera

• Resolution: 1920 × 1080
• DFOV: 161°
• Frame Rate: 30 fps

Laser Module

• Wavelength: 905 nm
• Max Laser Power: 3.5 mW
• Single Pulse Width: 6 ns
• Measurement Accuracy: ± (0.2 m + D × 0.15%) (D is the distance to a vertical surface)
• Measuring Range: 3–1,200 m (0.5 × 12 m vertical surface with 20% reflectivity)
• Safety Regulation Level: Class 1M

Vision Systems

• Obstacle Sensing Range: Forward: 0.6–38 m, Upward/Downward/Backward/Sideward: 0.5–33 m
• FOV: 65° (Horizontal), 50° (Vertical)
• Operating Environment: Surfaces with clear patterns and adequate lighting (>15 lux)

Infrared Sensing Systems

• Obstacle Sensing Range: 0.1–10 m
• FOV: 30°
• Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)

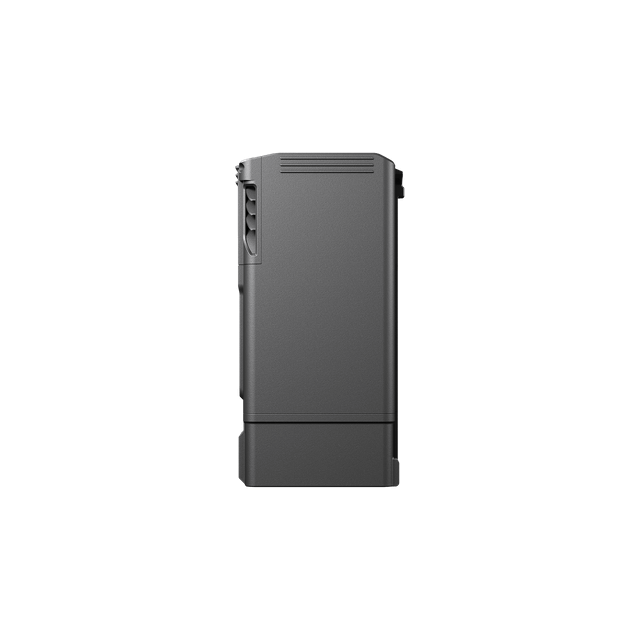

TB30 Intelligent Flight Battery

• Capacity: 5880 mAh
• Voltage: 26.1 V
• Battery Type: Li-ion 6S
• Energy: 131.6 Wh
• Net Weight: Approx. 685 g
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Storage Temperature: 20° to 30° C (68° to 86° F)
• Charging Temperature: -20° to 40° C (-4° to 104° F)
• Chemical System: LiNiMnCoO₂

Auxiliary Lights

• Effective Illumination Distance: 5 m
• Illumination Type: 60 Hz, solid glow

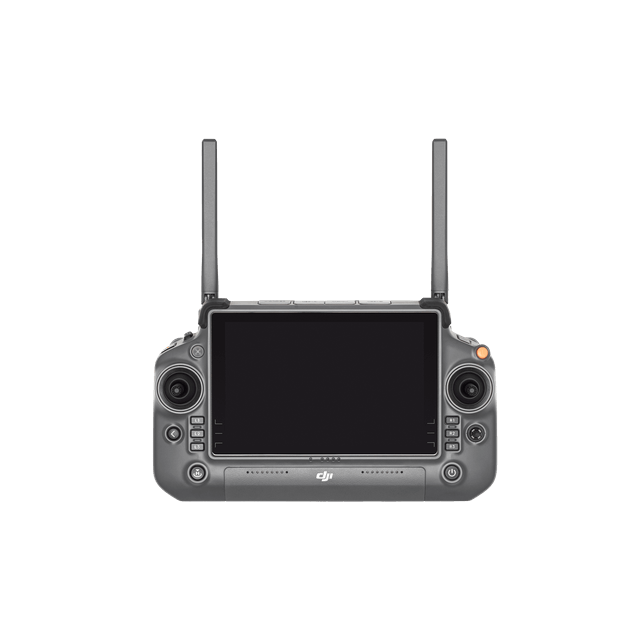

Remote Controller

• Screen: 7.02-inch LCD touchscreen, 1920 × 1200 pixels, 1200 cd/m² brightness
• Internal Battery:
  • Type: Li-ion (6500 mAh @ 7.2 V)
  • Charge Type: Supports battery station or USB-C charger (max 65 W, 20 V)
  • Charge Time: 2 hours
  • Chemical System: LiNiCoAlO₂
• External Battery (WB37 Intelligent Battery):
  • Capacity: 4920 mAh
  • Voltage: 7.6 V
  • Battery Type: Li-ion
  • Energy: 37.39 Wh
  • Chemical System: LiCoO₂
• Operating Time:
  • Internal Battery: Approx. 3 hours 18 min
  • Internal Battery + External Battery: Approx. 6 hours
• Ingress Protection Rating: IP54
• GNSS: GPS + Galileo + BeiDou
• Operating Temperature: -20° to 50° C (-4° to 122° F)

O3 Enterprise

• Operating Frequency: 2.4000 – 2.4835 GHz, 5.725 – 5.850 GHz
• Max Transmission Distance (unobstructed, free of interference):
  • 15 km (FCC)
  • 8 km (CE/SRRC/MIC)
• Max Transmission Distance (with interference):
  • Strong Interference: 1.5–3 km (urban landscape)
  • Medium Interference: 3–9 km (suburban landscape)
  • Weak Interference: 9–15 km (open landscape)
• Transmitter Power (EIRP):
  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
  • 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

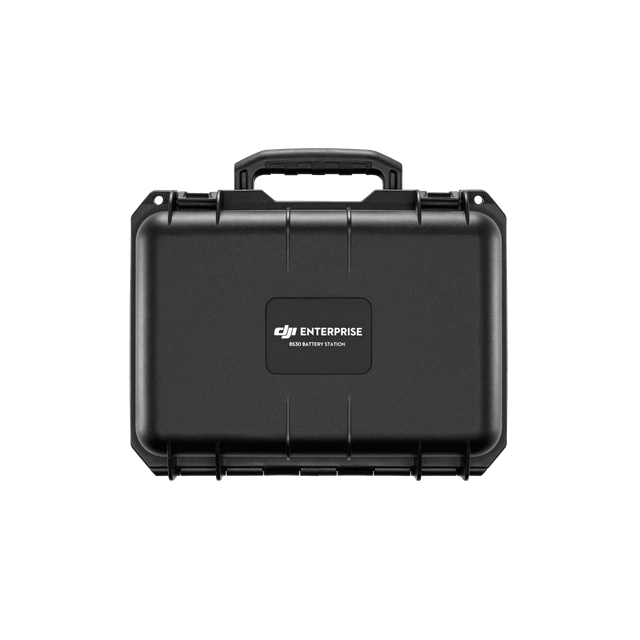

BS30 Intelligent Battery Station

• Dimensions: 353 × 267 × 148 mm
• Net Weight: 3.95 kg
• Compatible Battery Type: TB30 Intelligent Flight Battery, WB37 Intelligent Battery
• Input: 100–240 VAC, 50/60 Hz
• Output:
  • TB30 Battery Port: 26.1 V, 8.9 A (up to two outputs simultaneously)
  • WB37 Intelligent Battery: 8.7 V, 6 A
• Output Power: 525 W
• USB-C Port: Max output power of 65 W
• USB-A Port: Max output power of 10 W (5 V, 2 A)
• Operating Temperature: -20° to 40° C (-4° to 104° F)
• Ingress Protection Rating: IP55 (with the cover closed properly)
• Charging Time:
  • Approx. 30 min (charging two TB30 batteries from 20% to 90%)
  • Approx. 50 min (charging two TB30 batteries from 0% to 100%)

Others

• Guaranteed Software Updates Until: 2024/12/31

Footnotes

• 5.8 and 5.1 GHz frequencies are prohibited in some countries.
• The maximum flight time and hover time were tested in a lab environment.
• Ingress protection rating is not permanent.
• Infrared temperature measurement accuracy was tested in a lab.
• Maximum operating time was tested in a lab.
• Charging time was tested at room temperature.

In the Box

• 1x DJI Matrice 30
• 2x TB30 Intelligent Flight Battery
• 1x BS30 Intelligent Battery Station
• 1x DJI RC Plus
• 1x DJI Pilot 2

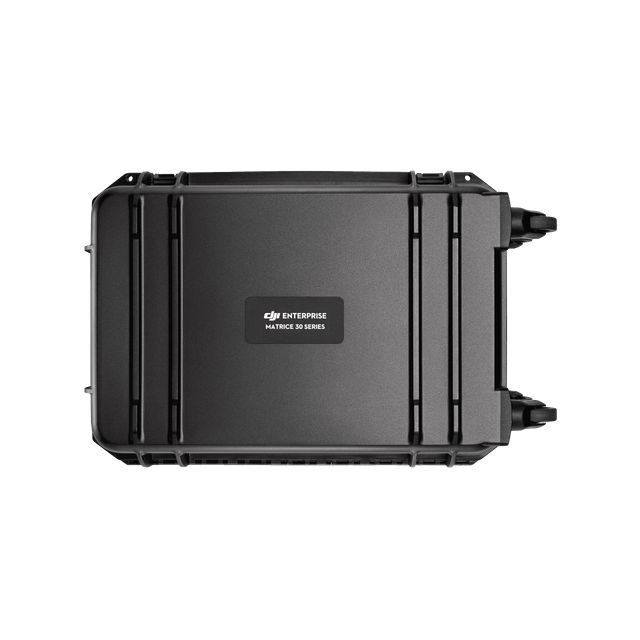

• 1x Aircraft storage case
• 1x DJI FlightHub 2 (3 month subscription)
