Defy traditional delivery constraints with the DJI FlyCart 30, a next-generation drone that optimizes aerial logistics. Built for heavy payloads, long-range transport, and reliable flight in challenging environments, the FlyCart 30 elevates on-demand delivery services while keeping operations safe, efficient, and cost-effective.
Key Features
-
Heavy-Duty Performance
- Carries up t
- o 30 kg (dual battery) or 40 kg (single battery)
- Covers 28 km with no payload and 16 km with full load
- Achieves speeds of up to 20 m/s for timely deliveries
-
All-Weather Capable
- Flies at altitudes up to 6,000 m
- Performs in temperatures from -20°C to 45°C (-4°F to 113°F)
- Withstands wind speeds up to 12 m/s
-
Long-Distance Connectivity
- O3 video transmission for up to 20 km of range
- 4G support for enhanced video and command link
- Dual Operator Mode and integrated FPV camera for superior mission coordination
-
Safety & Intelligent Systems
- 360° obstacle sensing via phased array radars and binocular vision
- ADS-B receiver for air traffic awareness
- Deployable parachute with self-check, independent power, and propeller cutoff
- RTK module for centimeter-accurate positioning
-
Flexible Delivery Configurations
- Cargo Mode: Intelligent weight distribution for balanced payload flights
- Winch Mode: Remote lowering and releasing of packages (winch kit sold separately)
-
Comprehensive Delivery Management
- DJI Pilot 2: Real-time flight, cargo monitoring, and interactive interfaces
- DJI DeliveryHub: Centralized planning, dispatch, resource management, and data analysis
- Delivery Mode, Cruise Control, Terrain Sensing, and AR Projection for optimized routes
How DJI FlyCart 30 Addresses Key Challenges
- Reduced Operational Costs: Cuts down on fuel, vehicle maintenance, and labor expenses
- Enhanced Safety in Hazardous Areas: Delivers goods to remote or dangerous locations with minimal risk
- Quicker Delivery Turnaround: Maintains high speeds for efficient last-mile solutions
- Eco-Friendly Delivery: Electric-powered flight lowers carbon emissions and environmental impact
Bundle Contents
- (1) DJI FlyCart 30 Delivery Drone
- (4) DJI FlyCart 30 DB2000 Intelligent Flight Battery - FC30

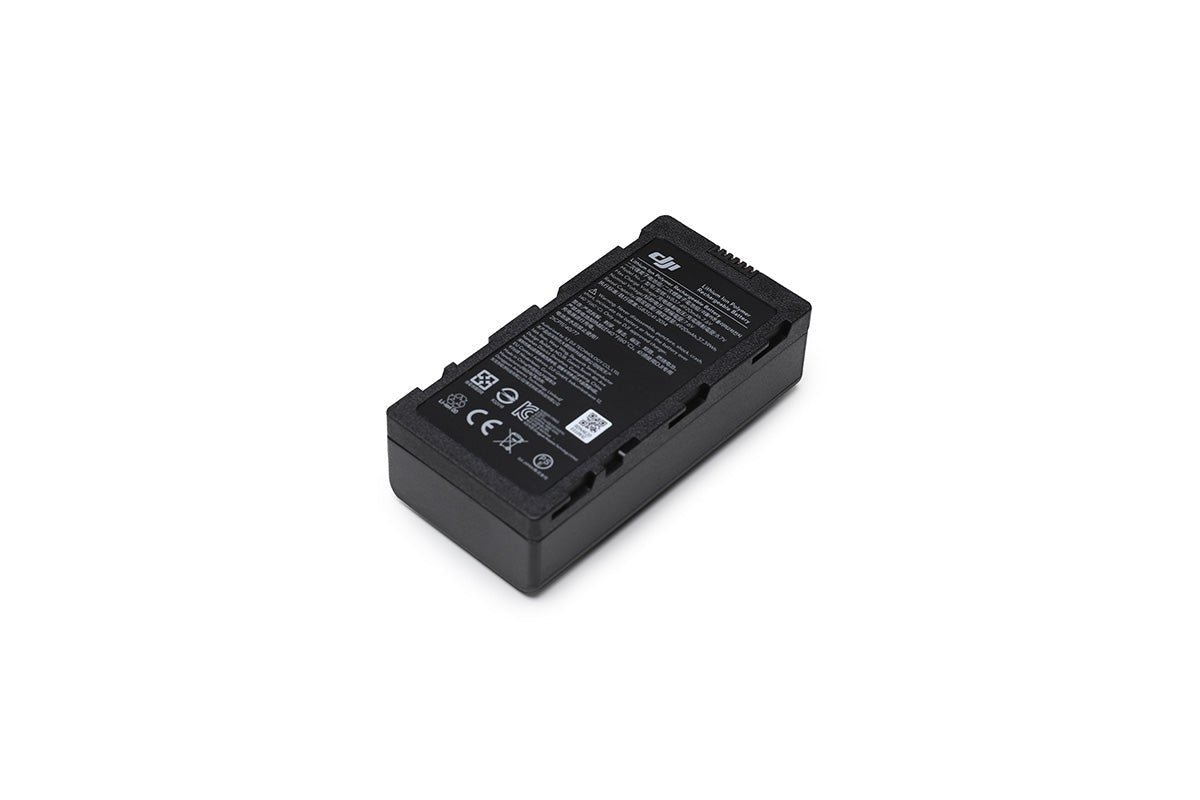

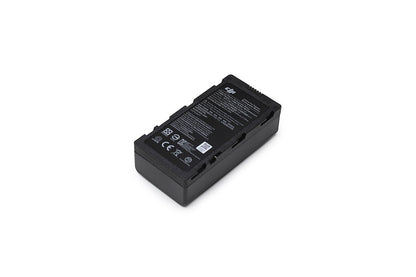

- (2) DJI CrystalSky/Cendence - WB37 Intelligent Battery (4920mAh)
- (1) DJI FlyCart 30 Winch System Kit

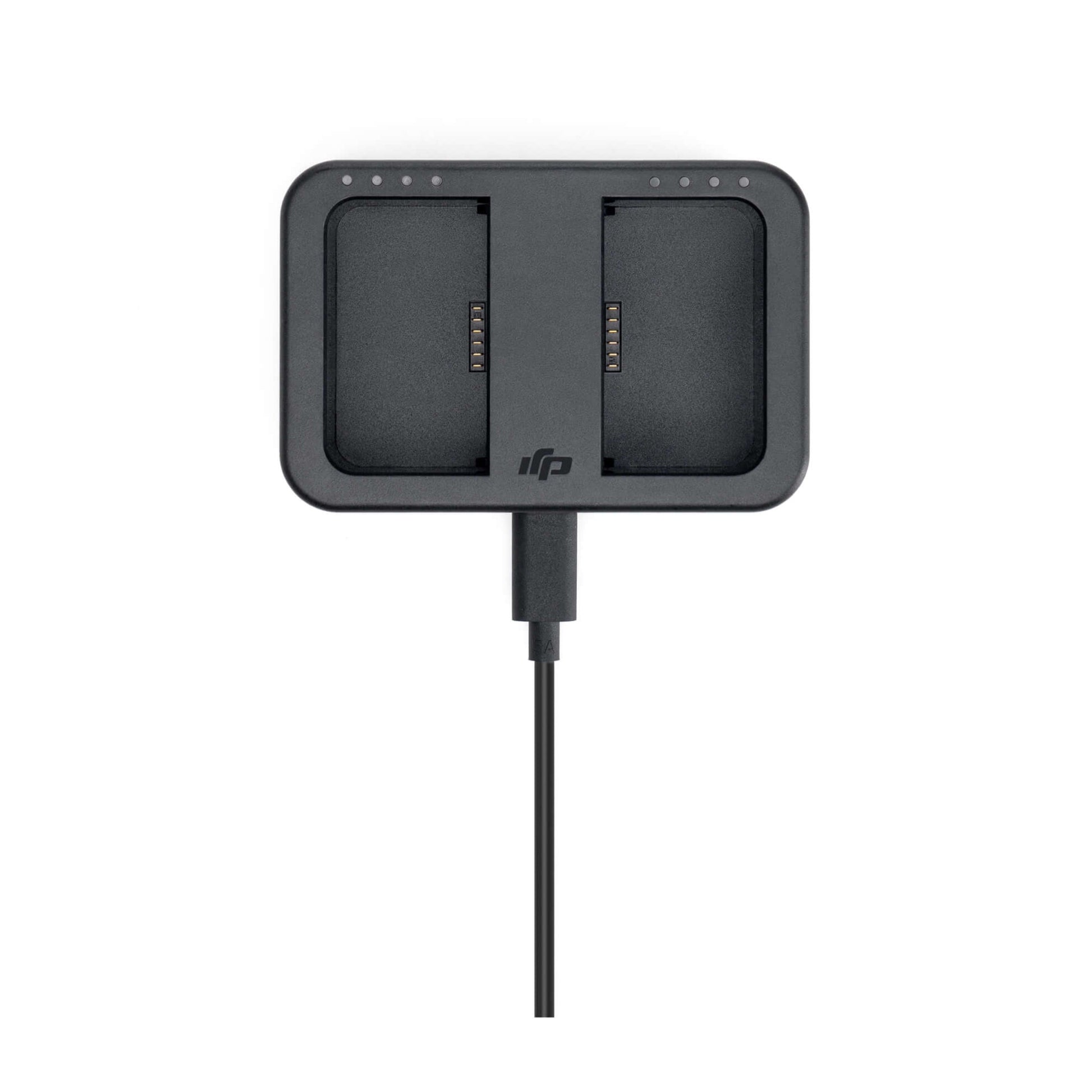

- (1) DJI WB37 Battery Charging Hub (USB-C)
- (1) DJI C8000 (FlyCart 30) Intelligent Battery Station
Why Buy from Dronefly
- Expert drone and payload guidance tailored to your needs
- Extensive product line, ensuring you find the perfect aerial solution
- Competitive pricing on bundles, spare parts, and accessories
- Dedicated customer support for installation, operation, and maintenance
Specifications
Aircraft
- Weight: 42.5 kg (without battery), 65 kg (with two DB2000 batteries)
- Max Takeoff Weight: 95 kg (with cargo at sea level)
- Max Diagonal Wheelbase: 2200 mm
-
Dimensions:
- 1590 x 1900 x 947 mm (arms unfolded, propellers folded)
- 2800 x 3085 x 947 mm (arms & propellers unfolded)
- 1115 x 760 x 1027 mm (arms & propellers folded)
- Folding Method: Towards body
- Loadable Battery Quantity: 2
-
Hovering Endurance:
- Empty weight: 29 mins (dual battery), 15 mins (single battery)
- Max weight: 18 mins (30 kg load, dual battery), 8 mins (40 kg load, single battery)
-
Max Flight Distance:
- Empty weight: 28 km (dual battery), 12 km (single battery)
- Max weight: 16 km (30 kg load, dual battery), 8 km (40 kg load, single battery)
- Max Flight Time (Max Weight): 18 mins (30 kg load, dual battery), 9 mins (40 kg load, single battery)
- Operating Temperature: -20° to 45° C
- Ingress Protection Rating: IP55
- Hovering Accuracy (with strong GNSS signal): ±10 cm horizontal, ±10 cm vertical (RTK enabled)
- RTK/GNSS Operating Frequency: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, etc.
- Max Pitch Angle: 30°
- Max Ascent Speed: 5 m/s
- Max Descent Speed: 3 m/s (vertical), 5 m/s (tilted)
- Max Horizontal Speed: 20 m/s
- Max Flight Altitude: 6000 m (without payload)
- Max Wind Speed Resistance: 12 m/s
Propulsion System
- Stator Size: 100x33 mm
- Motor KV Value: 48 rpm/V
- Max Motor Power: 4000 W/rotor
-
Propellers:
- Material: Carbon fiber composite
- Diameter: 54 inches
- Type: Foldable double-blade
- Rotor Quantity: 8
LED Light
- Effective Illumination Distance: 10 m
- Illumination Mode: 60 Hz, automatic switching based on ambient light
DJI O3 Image Transmission
- Model: Pigeon (with DDR)-2T4R
- Signal Effective Distance: 20 km (FCC), 8 km (CE/SRRC/MIC)
- Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
-
EIRP:
- 2.400 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
- 5.725 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
- Data Security: AES-256
- ADS-B: Supported
Forward and Backward Active Phased Array Radar
- Model Number: RD241608RF (forward), RD241608RB (backward)
- Altitude Detection: 1.5-200 m
- Rear Obstacle Avoidance: 1.5-50 m
- FOV: Forward 360° horizontal, ±45° vertical; Backward ±45° horizontal, 360° vertical
Binocular Vision System
- FOV: Horizontal 90°, Vertical 106°
- Work Environment: Normal lighting with clearly textured surfaces
FPV Camera
- Resolution: 1920x1440
- DFOV: 149°
- Frame Rate: 30fps
- Type: Full HD FPV Single Axis Gimbal Camera
- Fill Light: Supported
Cargo Case
- Dimension: 754x472x385 mm (LxWxH)
- Inner Space: 573x416x305 mm (LxWxH)
- Material: EPP plus aluminum alloy frame
- Weight: Approx. 3 kg
- Load Capacity: 0-40 kg
- Weighing Feature: Supported
Parachute
- Max Payload: ≤ 95 kg
- Dimension: 300x200x120 mm (LxWxH)
- Weight: Approx. 2.1 kg
- Automatic Reaction Time: Approx. 1000 ms
- Descending Speed: ≤ 6 m/s
- Material: Nylon
- Surface Area: Approx. 22 ㎡
- Minimum Opening Height: 60 m
- Operating Temperature: -20° to 45° C
- Ingress Protection Rating: IP55
- Mainboard Power-off Battery Life: ≥ 1 hour
- Memory Card Capacity: Real-time record for 10 flights
- Buzzar Alarm: Supported
- Lighting Alarm: Supported
- Manually Opening: Supported
- Automatic Opening: Supported

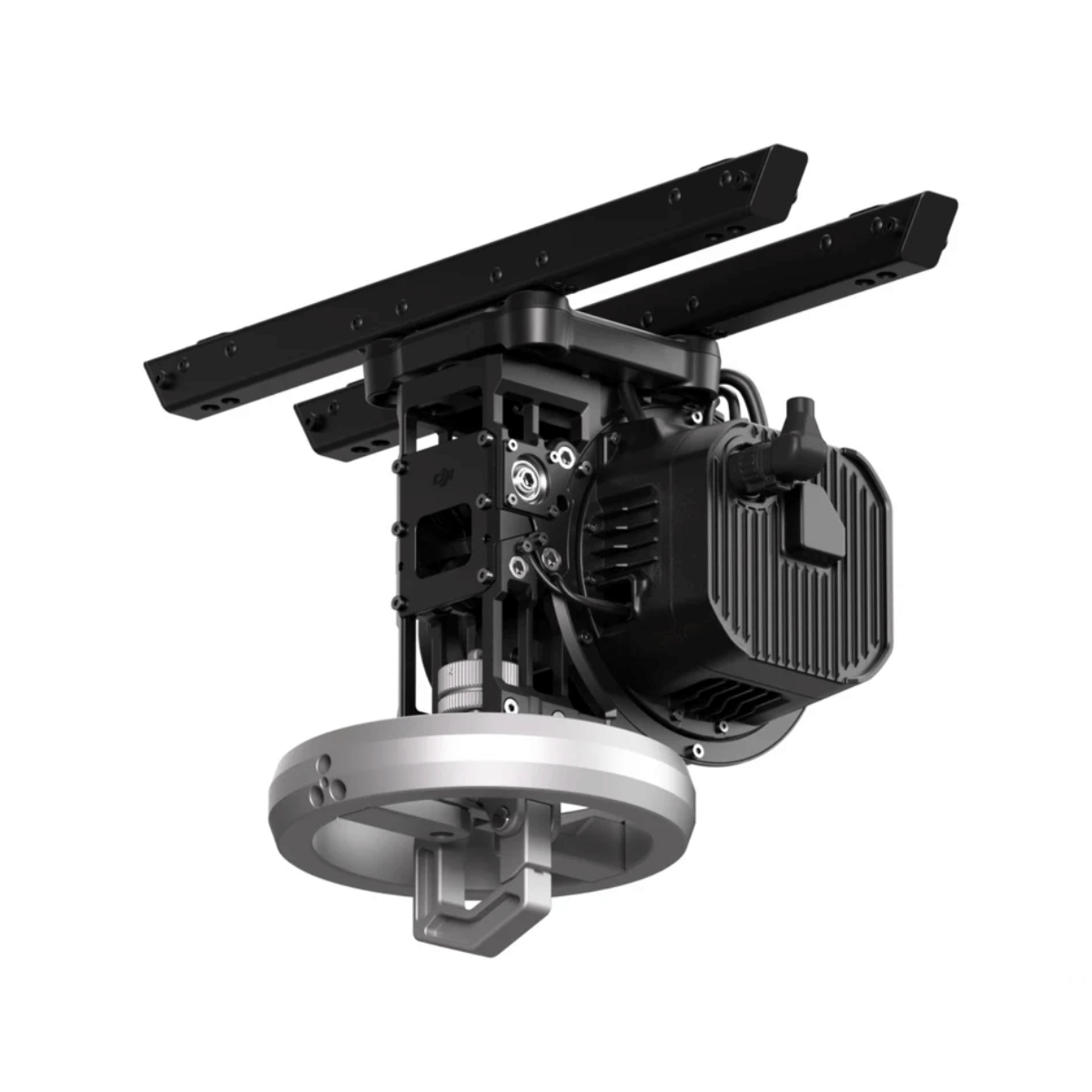

Winch System (Optional)
- Model: A2EWI-30A
- Dimension: 252x195x193 mm (LxWxH)
- Weight: 2.5 kg (without clump and couple)
- Payload Capacity: 5-30 kg (dual battery), 5-40 kg (single battery)
- Cable Length: 20 m
- Max Retraction Speed: 0.8 m/s
- Operating Temperature: -20° to 45° C
- Ingress Protection Rating: IP55
- Weighing Function: Supported
- Cut Cable Protection: Supported
DJI DB2000 Intelligent Battery
- Model: DB2000
- Capacity: 38000 mAh
- Nominal Voltage: 52.22 V
- Energy: 1984.4 Wh
- Weight: Approx. 11.3 kg
- Dimension: 316x152x279 mm (LxWxH)
- Operating Temperature: -20° to 45° C
- Max Charging Power: 5700 W
- Automatic Heating Feature: Supported
DJI C8000 Intelligent Charger
- Model: CHX101-7000
- Input: 90-264 V AC
- Max Output Power: 7200 W (Dual input), 3600 W (Single input)
- Output Channel Quantity: 2
- Protection Features: Overheating, overvoltage, undervoltage, short circuits, fan stalls
- Operating Temperature: -20° to 45° C
Remote Controller
- Type: DJI RC Plus
- Operating Frequency: 2.400-2.483 GHz, 5.725-5.850 GHz
-
EIRP:
- 2.400-2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
- 5.725-5.850 GHz: <33 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
- Operating Temperature: -20° to 50° C
- Charging Time: 2 hours with built-in battery
- Ingress Protection Rating: IP54
- Screen: 7.02 inch touch LCD, resolution 1920x1200, brightness 1200 nits
- Dual Operator Mode: Supported
In the Box
- 1x DJI FlyCart 30 - Delivery Drone
- 4x DJI Flycart 30 DB2000 Intelligent Flight Battery - FC30
- 2x DJI CrystalSky/Cendence - WB37 Intelligent Battery (4920mAh)
- 1x DJI FlyCart 30 Winch System Kit
- 1x DJI WB37 Battery Charging Hub (USB-C)
- 1x DJI C8000 (Flycart 30) Intelligent Battery Station
