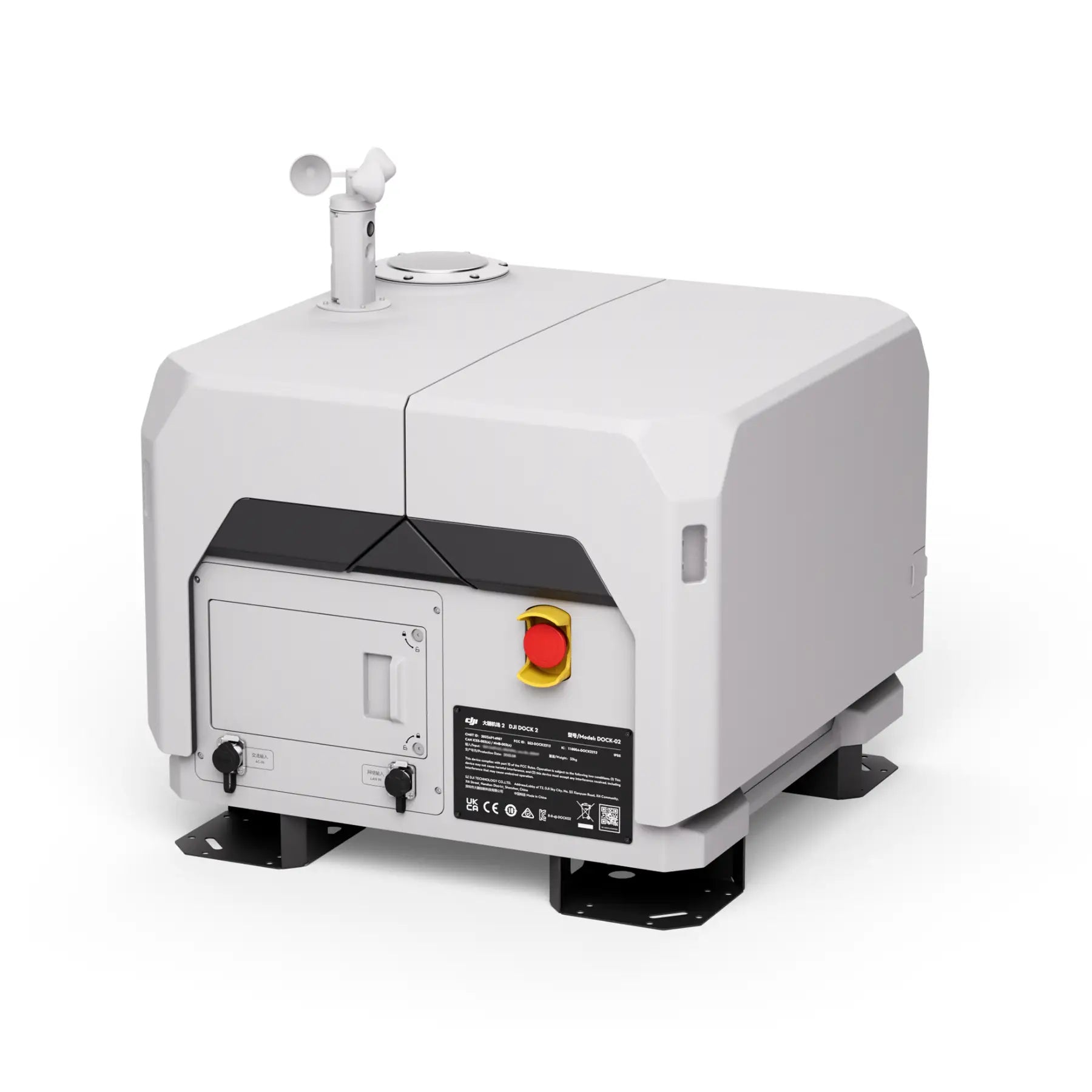

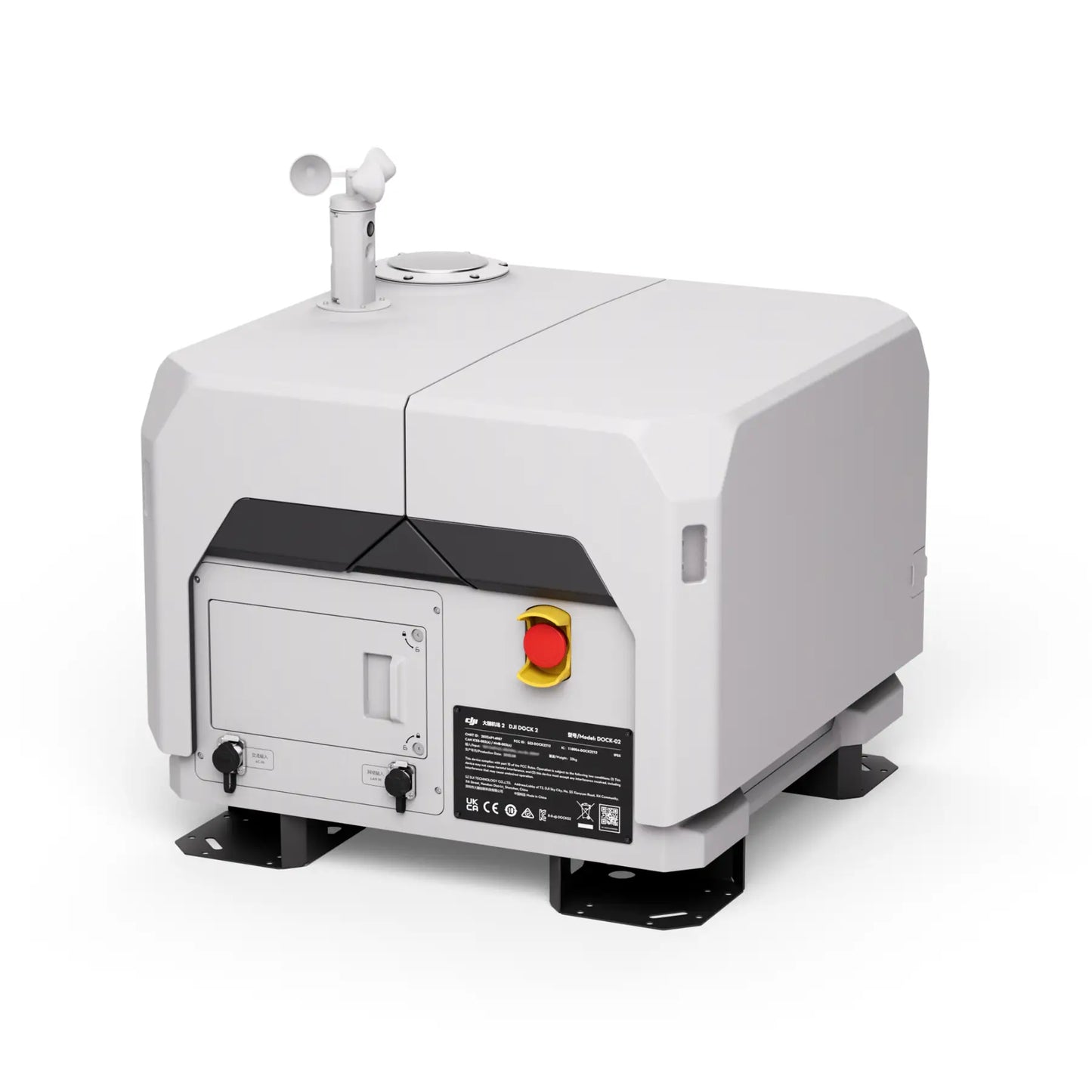

DJI Dock 2

Revolutionizing the future of autonomous drones with DJI Dock 2

In the evolving world of drone technology, DJI has taken a giant leap with the launch of DJI Dock 2, an upgrade from its successful predecessor, DJI Dock 1.

Engineered for superior efficiency, versatility, and user-friendliness, Dock 2 caters to an extensive array of uses, including but not limited to, aerial surveying, mapping, security surveillance, and swift emergency responses.

This detailed product overview sheds light on the notable enhancements that the device brings to the table, its compatible aircraft models, software integrations, usage scenarios, and the technical advancements it boasts.

Key enhancements from Dock 1 to Dock 2

• Compact design: DJI Dock 2 showcases a reduction in size and weight, weighing in at only 34kg and occupying a mere 0.34m^2. This evolution marks a significant step towards better portability and deployment flexibility.
• Boosted performance metrics: The introduction of a 50-minute maximum flight duration and a 10 km reach marks a considerable improvement in its operational capabilities, enhancing its efficiency and service area.
• Advanced surveying features: It integrates a 20MP high-resolution surveying camera (parallel to the M3E model) with the M3D variant, paving the way for groundbreaking applications in sectors like construction management, mining operations, and others through its precise surveying and mapping functionalities.
• Increased cost-efficiency: Dock 2 is designed with an eye on affordability, offering cost reductions in both hardware acquisition and ongoing operational expenditures.

Aircraft compatibility

DJI Dock 2 seamlessly integrates with two specialized aircraft models: the DJI Matrice 3 dock version (M3D) and its thermal counterpart, the DJI Matrice 3 thermal dock version (M3TD).

These models are equipped with distinct camera configurations to address specific operational needs—M3D for high-fidelity surveying and mapping, and M3TD for tasks in public safety and inspections.

Software integration and SDK/API support

The device maintains full compatibility with the DJI FlightHub 2 platform while supporting Cloud API for easy integration with third-party cloud services.

Its E-Port functionality on M3D/M3TD models facilitates the attachment of alternative payloads, expanding its utility across various applications.

Application versatility

Thanks to the 20MP surveying camera on the M3D, similar to the M3E model, Dock 2 excels in high-precision mapping and surveying. It's ideally suited for monitoring construction sites, calculating earthworks, and overseeing disaster recovery efforts.

The M3TD, with its thermal and RGB cameras, is perfect for security patrols, emergency response scenarios, and automated inspections.

Solutions that Take Your Operations to New Heights

Industrial Inspections

• The DJI Dock 2 is perfect for automating routine inspections of industrial sites, such as power plants, oil and gas pipelines, and construction projects.
• The fully autonomous operation allows for regular monitoring without manual drone deployment, ensuring safety and operational efficiency.

Public Safety and Emergency Response

• The Dock 2 can support rapid-response missions by ensuring drones are always ready for takeoff.
• In critical situations such as search and rescue, firefighting, or disaster management, the Dock 2’s quick recharging and automated capabilities help provide continuous aerial support.

Environmental Monitoring

• Whether monitoring wildlife, tracking deforestation, or assessing natural habitats, the DJI Dock 2 facilitates continuous environmental monitoring.
• Autonomous missions allow for data collection at regular intervals without the need for constant human oversight.

Agriculture and Precision Farming

• The DJI Dock 2 enhances precision agriculture by automating drone operations for crop monitoring, irrigation assessments, and field analysis.
• Farmers can schedule regular missions to gather critical data, improving crop yields and resource management.


Technical upgrades and specifications

The new Dock has achieved a notable downsizing in both weight and dimensions compared to its predecessor, without compromising on performance and environmental adaptability.

It boasts a maximum takeoff altitude of 2500m, a 10km operational reach, and a quick 32-minute recharge time (from 20% to 90%).

Additionally, it introduces smart oblique photography capabilities, further enhancing its surveying and mapping accuracy.

Why choose DJI Dock 2?

DJI Dock 2 stands at the forefront of autonomous drone technology, offering unmatched efficiency, adaptability, and functionality in a streamlined and economically viable package.

Whether employed for construction oversight, disaster management, or security purposes, it delivers a reliable and high-performing solution for diverse applications. With its array of advanced features and technical enhancements, it is poised to set new benchmarks in autonomous drone operations.

Elevate your drone operations with the innovative DJI Dock 2 available at Dronefly. Learn more about its cutting-edge features and compatibility by reaching out to us.

Specifications

DJI Dock 2 - General Specifications:

• Product Name: DJI Dock 2
• Total Weight: 34 kg (without aircraft)
  • Actual product weight may vary due to differences in batch materials and external factors.
• Dimensions:
  • Dock Cover Opened: 1228×583×412 mm (L×W×H)
  • Dock Cover Closed: 570×583×465 mm (L×W×H)
  • Does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
• Input Voltage: 100-240 V (AC), 50/60 Hz
• Input Power: Max 1000 W
• Operating Temperature: -25° to 45° C (-13° to 113° F)
  • When ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.
• Ingress Protection Rating: IP55
• Number of Drones Accommodated: 1
• Max Allowable Landing Wind Speed: 8 m/s
• Max Operating Altitude: 4000 m
• Receiving Frequency of RTK Base Station Satellite:
  • GPS: L1 C/A, L2
  • BeiDou2: B1l, B2l, B3l
  • BeiDou3: B1l, B3l
  • GLONASS: L1, L2
  • Galileo: E1, E5B
• Positioning Accuracy of RTK Base Station:
  • Horizontal: 1 cm + 1 ppm (RMS)
  • Vertical: 2 cm + 1 ppm (RMS)

Dock - Charging Performance:

• Output Voltage: 28 V DC
• Charging Time: 32 minutes
  • Measured when charging the aircraft (powered off) from 20% to 90% in a 25° C (77° F) environment.

Dock - Video Transmission:

• Video Transmission System: O3 Enterprise
• Operating Frequency:
  • 2.4000-2.4835 GHz
  • 5.725-5.850 GHz
• Antenna: Built-in 4 antennas, 2T4R, supports intelligent switching
• Transmitter Power (EIRP):
  • 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC)
  • 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC)

Dock - Air Conditioning System:

• Operating Voltage: 28 V DC
• Air Conditioning Type: TEC Air Conditioning

Dock - Backup Battery:

• Battery Capacity: 12 Ah
• Output Voltage: 12 V
• Battery Type: Lead-acid battery
• Battery Life: > 5 hours
  • Measured with a fully charged backup battery in a 25° C (77° F) environment.
  • After a power outage, the dock does not support functions like aircraft charging, air conditioning, dock cover heating, and wind speed gauge heating.

Dock - Network Access:

• Ethernet Access: 10/100/1000Mbps adaptive Ethernet port

Dock - Sensor:

• Wind Speed Sensor: Supported
• Rainfall Sensor: Supported
• Ambient Temperature Sensor: Supported
• Water Immersion Sensor: Supported
• In-Cabin Temperature Sensor: Supported
• In-Cabin Humidity Sensor: Supported

Dock - Security Camera (External):

• Resolution: 1920×1080
• Field of View (FOV): 151°
• Auxiliary Light: Auxiliary White Light

Dock - Lightning Protection:

• AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class II protection level requirements
• Ethernet Port: 10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements

Dock - Supported Software:

• Applications: DJI Pilot 2 (connects to DJI Dock 2 via DJI RC Pro Enterprise for deployment and commissioning)
• Cloud Platform: DJI FlightHub 2 (supported by default)
• Third-party cloud platforms: Accessed through DJI Cloud API

Dock - Expansion Capability:

• Open Protocol: DJI Cloud API
• Edge Computing: Supports data communication with external switches

Aircraft - General:

• Weight: 1410 g (includes battery, propellers, and microSD card)
• Max Takeoff Weight: 1610 g
• Dimensions: 335×398×153 mm (L×W×H, without propellers)
• Wheelbase:
  • Diagonal: 463.2 mm
  • Left-Right: 359.9 mm
  • Front-Rear: 291.4 mm
• Max Ascent Speed: 6 m/s (Normal Mode), 8 m/s (Sport Mode)
• Max Descent Speed: 6 m/s (both modes)
• Max Horizontal Speed:
  • Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways
  • Sport Mode: 21 m/s forward, 18 m/s backward, 16 m/s sideways

Aircraft - Wide-Angle Camera:

• Image Sensor: 4/3 CMOS, 20 MP
• Lens:
  • FOV: 84°
  • Format Equivalent: 24 mm
  • Aperture: f/2.8-f/11
  • Focus: 1 m to ∞
• ISO Range: 100-6400
• Shutter Speed: 8-1/8000 s
• Max Image Size: 5280×3956

Aircraft - Infrared Camera (DJI Matrice 3TD):

• Thermal Imager: Uncooled VOx Microbolometer
• Pixel Pitch: 12 μm
• Frame Rate: 30 Hz
• Lens:
  • FOV: 61°
  • Format Equivalent: 40 mm
  • Aperture: f/1.0
  • Focus: 5 m to ∞
• Temperature Measurement Range:
  • High Gain: -20° to 150° C
  • Low Gain: 0° to 500° C
• Infrared Wavelength: 8-14 μm

In the Box

• 1x Dock Body
• 1x Wind Speed Gauge Module
• 4x Expansion Bolts
• 1x Ethernet Cable Connector
• 1x Power Cable Connector
• 6x Wire Ferrules
• Screws and Tools
