DJI Agras T50: For The Smart Farmer
Experience the future of precision agriculture with the DJI Agras T50, a powerful drone designed to revolutionize farming practices with its robust capabilities and efficiency.
Overview of Key Features
- Maximum Productivity and Precision
Capable of covering up to 52 acres (21.3 hectares) per flight hour, it features a 10.56-gallon (40 liters) spray tank and a 12-megapixel adjustable camera for high-resolution imaging. The DJI Agras T50 is not just another drone; it is a heavyweight champion in the agricultural sprayer drone sector, designed for those who demand excellence.
- Cutting-Edge Spraying and Spreading Systems
The Agras T50's 36 ft (11m) spray width, enhanced by centrifugal nozzles and a coaxial twin rotor, ensures optimal coverage with fine, uniform droplets. The magnetic drive dual pump system achieves a flow rate of up to 24 L/min, with adjustable droplet sizes and precision control to eliminate leakage.
Its innovative spreading system, with a 50 kg payload capacity and a spiral channel spinning disk, enhances efficiency and uniformity in spreading operations, ensuring your crops receive the best care possible.
- Advanced Safety and Control Features
Equipped with advanced radar and vision systems, the Agras T50 offers unparalleled safety and navigation. The phased array radar and binocular vision systems provide comprehensive obstacle detection and terrain-following, ensuring safe and precise operations even on challenging terrain.
The RM700B remote controller, featuring a high-resolution 7.02-inch LCD touchscreen, ensures seamless control and connectivity with Wi-Fi 6 and Bluetooth 5.1.
Benefits of Integrating The Agras T50 Into Your Farm Operations
- Enhanced Efficiency: Utilizes advanced spraying systems with dual atomizing sprinklers for precise pesticide application, reducing waste and increasing coverage.
- Advanced Navigation: Features RTK GPS and dual GNSS systems for centimeter-level accuracy in navigation and mapping, crucial for detailed farm management.
- Ease of Use: Simple setup and integration with DJI SmartFarm apps for streamlined operations and data management.
- Flexible Application: Supports both liquid spraying and granular spreading, making it adaptable for different types of agricultural treatments.
Applications Across Fields: Agras T50 At Work
- Crop Farming: Optimizes pesticide and fertilizer application on large fields, supporting precision agriculture practices to enhance crop yield and reduce input costs.
- Orchard Management: Utilizes terrain-following capabilities to deliver consistent spray coverage in uneven orchards, improving treatment efficacy and crop health.
- Viticulture: Tailored for vineyards where precision spraying significantly impacts the quality of vine growth and grape production.
- Reforestation Projects: Effective in dispersing seeds and nutrients over large, inaccessible areas, aiding in reforestation efforts.
- Research and Development: Provides a powerful tool for agronomic research, enabling precise experiments on crop treatment effects and environmental impact studies.
Technical Specifications
Aircraft Specifications
- Weight: Excluding battery: 39.9 kg; Including battery: 52 kg
- Max Takeoff Weight: For spraying: 92 kg (at sea level); For spreading: 103 kg (at sea level)
- Max Diagonal Wheelbase: 2200 mm
- Dimensions: Arms and propellers unfolded: 2800×3085×820 mm; Arms unfolded and propellers folded: 1590×1900×820 mm; Arms and propellers folded: 1115×750×900 mm
- Hovering Accuracy Range (with strong GNSS signal): D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm; D-RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
- RTK/GNSS Operating Frequency: RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2; GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1
- Max Configurable Flight Radius: 2000 m
- Max Wind Resistance: 6 m/s
Propulsion System
- Motors: Stator Size: 100×33 mm; KV: 48 rpm/V; Power: 4000 W/rotor
- Propellers: Material: Nylon carbon fiber filament; Dimension: 54 in (1371.6 mm); Propeller Rotation Diameter: 1375 mm; Quantity: 8
Dual Atomizing Spraying System
- Spray Tank: Material: Plastic (HDPE); Volume: 40 L; Operating Payload: 40 kg; Quantity: 1

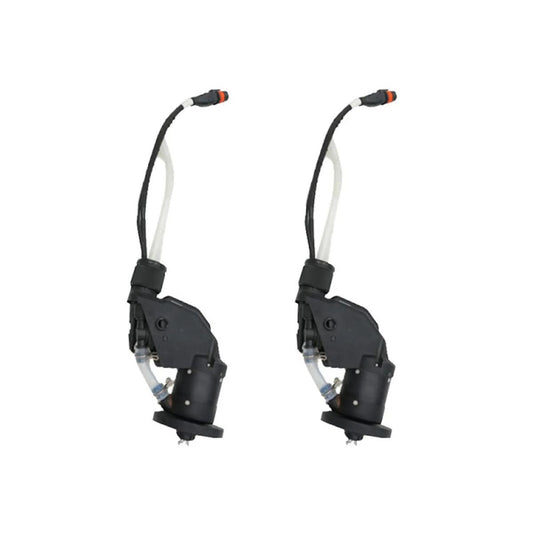

- Sprinklers: Model: LX8060SZ; Quantity: 2; Nozzle Distance: 1570 mm (Rear Nozzles); Droplet Size: 50-500 μm; Effective Spray Width: 4-11 m (at a height of 3 m above the crops)
- Delivery Pumps: Type: Impeller pump (magnetic drive); Quantity: 2; Single Pump Flow Rate: 0-12 L/min; Max Flow Rate: 16 L/min (2 nozzles); 24 L/min (4 nozzles)

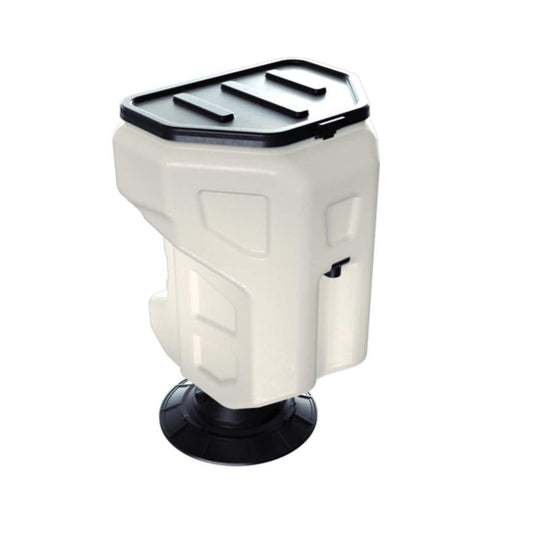

T50 Spreading System
- Compatible Material Diameter: 0.5-5 mm dry granules
- Spread Tank Volume: 75 L
- Spread Tank Internal Load: 50 kg
- Spread Width: 8 m
Phased Array Radar System
- Model: RD241608RF (forward); RD241608RB (rear)
- Terrain Follow: Max slope in Mountain mode: 20°
- Altitude Detection Range: 1-50 m
- Stabilization Working Range: 1.5-30 m
- Obstacle Avoidance: Obstacle sensing range (multidirectional): 1-50 m; FOV: Forward: horizontal 360°, vertical ±45°, upward ±45° (cone); Rear: vertical 360°, horizontal ±45°
- Working Conditions: Flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s
- Safety Limit Distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
- Sensing Direction: 360° multidirectional sensing
Binocular Vision System
- Measurement Range: 0.5-29 m
- Effective Sensing Speed: ≤10 m/s
- FOV: Horizontal: 90°; Vertical: 106°
- Operating Environment: Adequate light and discernible surroundings
Remote Controller
- Model: RM700B
- Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
- Max Transmission Distance: 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
- Wi-Fi Protocol: Wi-Fi 6
- Wi-Fi Operating Frequency: 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
- Bluetooth Protocol: Bluetooth 5.1
- Bluetooth Operating Frequency: 2.4 GHz
In the Box
- 1x DJI Agras T50
- 1x Air-Cooled Heat Sink
- 1x Tool Box
- 1x DJI Agras RC Plus
- 1x Remote Controller Strap
- 1x USB-C Cable
