Professional cinematic content quality with Autel EVO Nano+
Experience the incredible versatility of the Autel EVO Nano+ Drone Arctic White. With its lightweight design, weighing just 8.8 oz, and foldable structure, it's your ultimate solution for aerial photography and videography. Take to the skies effortlessly to capture stunning images and video content with professional quality.
Imaging capabilities
The Nano+ is equipped with a 1/1.28" CMOS sensor housed within a 3-axis gimbal, enabling it to deliver images of up to 50MP and 4K30p Ultra HD video. Thanks to its dual PDAF+CDAF autofocusing system, large aperture, and RYYB color filter array, this drone excels at keeping fast-moving subjects in focus and producing low-light content with minimal noise.
Capturing cinematic content is made easy with the Nano+. It offers four automatic shooting modes, automatic subject tracking, and a collection of video templates accessible through the Autel Sky app. While benefiting from these automation features, you remain in control with the included remote and Skylink.
The drone transmits its view at a remarkable 2.7K30p resolution from distances of up to 6.2 miles away. With a generous flight time of up to 28 minutes, you can safely capture breathtaking aerial footage of remote landscapes.
HDR mode
In HDR mode, the drone captures multiple images at varying exposures while filming. These images are automatically processed together to create a final result with maximum detail and rich contrast.
4 automatic shooting modes
- Flick: Gradually approaches, then accelerates, and turns while maintaining focus on the subject, creating a "fast-forward" effect.
- Rocket: Focuses on a subject, ascends slowly, and then rapidly gains altitude for a "zoom-out" effect.
- Fade Away: Concentrates on a subject, hovers briefly, then swiftly retreats and ascends to reveal more of the surroundings.
- Orbit: At a distance, focuses on a subject and rotates (orbits) around it.
SkyPortrait
The Nano+ takes to the air to capture group portraits, automatically adjusting the lens to ensure no one is left out. You can also choose to blur the background or keep it sharp.
Dynamic Track 2.1
The Nano+ can automatically track and follow moving persons, animals, or vehicles, allowing you to focus on other tasks.
Skylink
Experience real-time views from the drone's perspective with Skylink. Designed for minimal interference, it sends brilliant 2.7K30p video to your smartphone from distances of up to 6.2 miles away.
SoundRecord
Record voices and ambient sounds on the ground through your phone to provide narration audio that can be edited into your final content.
Autel Sky App
The Autel Sky app offers various functions to enhance your content creation and productivity. It includes video templates, filter options, and the ability to add a soundtrack. Additionally, it features SuperDownload, allowing wireless transfer of images and videos from the drone to your smartphone by simply placing it nearby, with transfer speeds of up to 160 Mb/s.
Obstacle avoidance

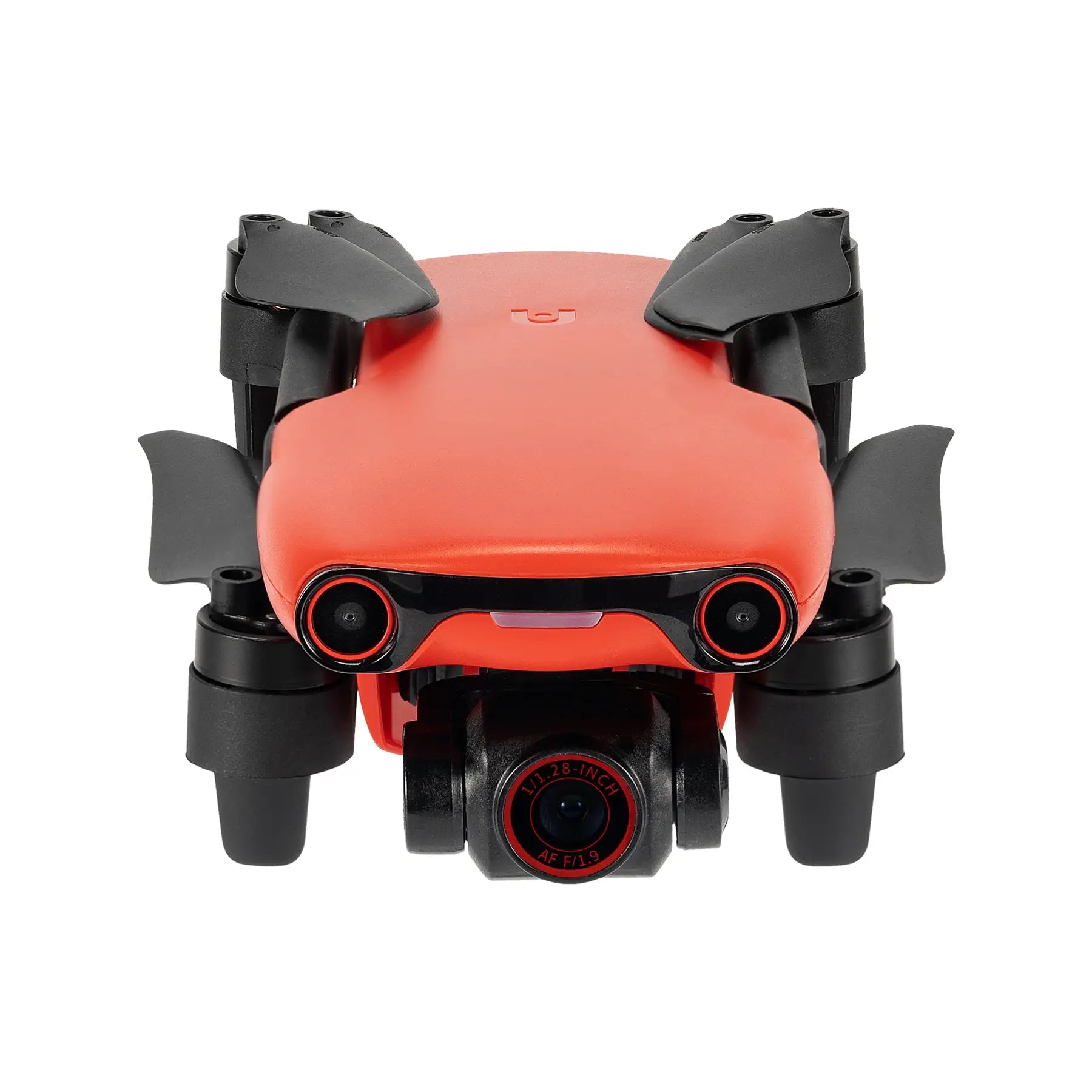

Even in its compact form, the Nano+ is equipped with three-way binocular obstacle avoidance cameras. These cameras detect and view objects in front, behind, and below the aircraft, enabling the drone to automatically avoid obstacles and prevent crashes.
Applications of the Autel EVO Nano+
- Photography and videography: Capturing high-resolution images and videos with its 50MP camera and 4K HDR capabilities.
- Cinematic productions: Utilizing automatic shooting modes and the MovieMaster feature for professional-quality footage.
- Surveillance and tracking: Using Dynamic Track 2.1 to follow and film moving subjects like people, vehicles, or animals.
- Recreational use: Designed for ease of use, portability, and obstacle avoidance, suitable for hobbyist aerial filming.
Specifications
Aircraft
- Takeoff Weight (without Accessories): 249g
- Dimensions (including blades): Folded: 142×94×55mm | Unfolded: 260×325×55mm
- Wheelbase: 231mm
- Max Ascent Speed: 5m/s (ludicrous), 4m/s (standard), 3m/s (smooth)
- Max Level Flight Speed: 4m/s (ludicrous), 3m/s (standard), 2m/s (smooth)
- Max Level Flight Speed(no wind, near sea level): 15m/s (ludicrous), 10m/s (standard), 5m/s (smooth)
- Max Takeoff Altitude: 4000m
- Max Flight Time (no wind): 28min
- Max Hovering Time (no wind): 26min
- Max Flight Distance (no wind): 16.8km
- Max Wind Resistance: 10 m/s (Take-off and landing)
- Max Tilt Angle: 33°(ludicrous), 25°(standard), 25°(smooth)
- Max Angular Velocity: 200°(ludicrous), 120°(standard), 60°(smooth)
- Operating Temperature: 0°C ~ 40°C
- Operating Frequency: 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz
- Transmission Power (EIRP): FCC: ≤30dBm；CE: ≤20dBm
- GNSS: GPS, GLONASS, Galileo
- Hovering Accuracy: Vertical: ±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal: ±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);
Gimbal
- Mechanical Range: Pitch: -125°~35° | Roll: -34°~33° | Yaw: -25°~25°
- Controllable Range: Pitch: -90°~ 15°
- Stabilization: 3-axis
- Max Control Speed (pitch): 30°/s
- Angular Vibration Range: ±0.003°
Perception System
- Forward: Accurate measurement range：0.5~16m | Effective sensing speed：<10m/s | FOV：Horizontal<40°,Vertical<30°
- Backward: Accurate measurement range：0.5~18m | Effective sensing speed：<12m/s | FOV：Horizontal<40°,Vertical<30°
- Downward: Accurate measurement range：0.5~20m | Visual hovering range：0.5~40m | FOV：Horizontal<40°,Vertical<30°
- Operating environment: Forward, backward: Surface with clear pattern and adequate lighting(lux> 15) | Downward: Surface with clear pattern and adequate lighting(lux> 15); Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)
Camera- Nano+
- Sensor: CMOS：1/1.28 inch (0.8 inch) | Effective pixels：50MP | Pixel size: 2.44μm*2.44μm (Bin2)
- Lens: FOV: 85° | Equivalent focal length: 23mm | Aperture: f/1.9 | Focus range: 0.5m ~ ∞ | Focus mode:：PDAF+CDAF/MF
- Shooting mode: Automatic mode (P gear): EV adjustable, ISO/Shutter automatic | Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable | Shutter priority (S file): Shutter/EV adjustable, ISO automatic
- ISO range: Video：ISO100 ~ ISO6400 | Photo：ISO100 ~ ISO6400
- Shutter speed: Photo Mode：1/8000 ~ 8s | Other：1/8000 ~ 1/frame rates
- Portrait blur: Real-time image transmission portrait blur and photo portrait blur
- Defog mode: Support
- Zoom range: Digital zoom：1 ~ 16 times
- Photo format: JPG(8-bit) / DNG(10-bit) / JPG+DNG
- Photo resolution: 50MP：8192x6144（4:3) | 12.5MP：4096x3072（4:3） | 4K：3840x2160（16:9）
- Photo shooting mode: Single shot | Burst shooing: 3/5 | Auto exposure bracketing(AEB): 3/5 shots | Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s) | HDR imaging: 3840x2160
- Video coding format: H265/H264
- Video format: MP4/MOV
- Video Resolution: 3840x2160 p30/25/24, 2720x1528 p30/25/24, 1920x1080 p60/50/48/30/25/24 | HDR: 3840x2160 p30/25/24, 2720x1528 p30/25/24, 1920x1080 p60/50/48/30/25/24
- Max bitrate: 100Mbps
- Timelapse: Original image：3840*2160，JPG/DNG | Video：4K P25
- Panorama: Horizontal/Vertical/Wide-angle/Spherical | Original image: 4096*3072, JPG/DNG
- Supported file system: Fat32、exFat
- WIFI transfer: 20MB/s
Remote controller and image transmission
- Operating frequency: 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz
- Max transmission distance (unobstructed, free of interference): FCC：10km；CE：5km
- Operating temperature: 0°C ~40°C
- Transmission power (EIRP): FCC:≤30dBm；CE:≤20dBm
- Battery capacity: 3930mAh
- Max battery life: ~ 2.5h (when connected to a mobile phone) | ~ 3.5h (when not connected to mobile phone)
- Interface type: Type C
- Transmission system: Autel SkyLink
- Realtime transmission quality: Transmission distance<1km：2.7K 30fps | Transmission distance>1km：1080P 30fps
- Transmission bitrate: 90Mbps
- Transmission delay: ≤200ms
- Smartphone/Tablet holder size: Length ∞, Width 83mm, Height 13mm

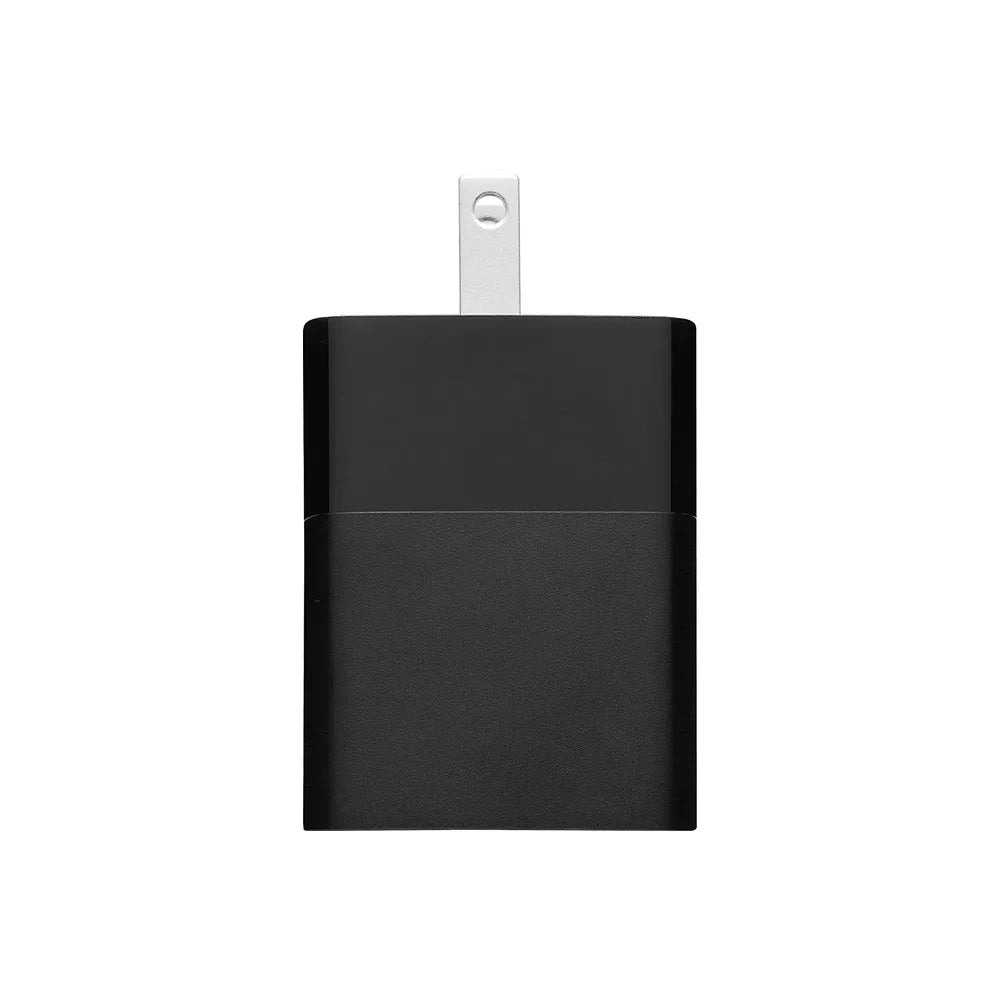

Adapter
- Input: 100-240V/50-60HZ
- Output: 5V⎓3A,9V⎓3A,12V⎓2.5A
- Rated power: 30W
Aircraft Battery
- Capacity: 2250mAh
- Voltage: 7.7V
- Max charging voltage: 8.8V
- Battery Type: Li-Po 2S
- Energy: 17.32Wh
- Charging temperature: 5~45℃
- Operating Temperature: -10℃~40℃
- Single battery charging time: 90min
- Max charging power: 30W
App
- Mobile App: Autel Sky
- Mobile system required: iOS 13.0 and above | Android 6.0 and above
Storage
- Built-in storage: No
- SD storage: max. support 256GB（UHS-3 rating required）
In the Box

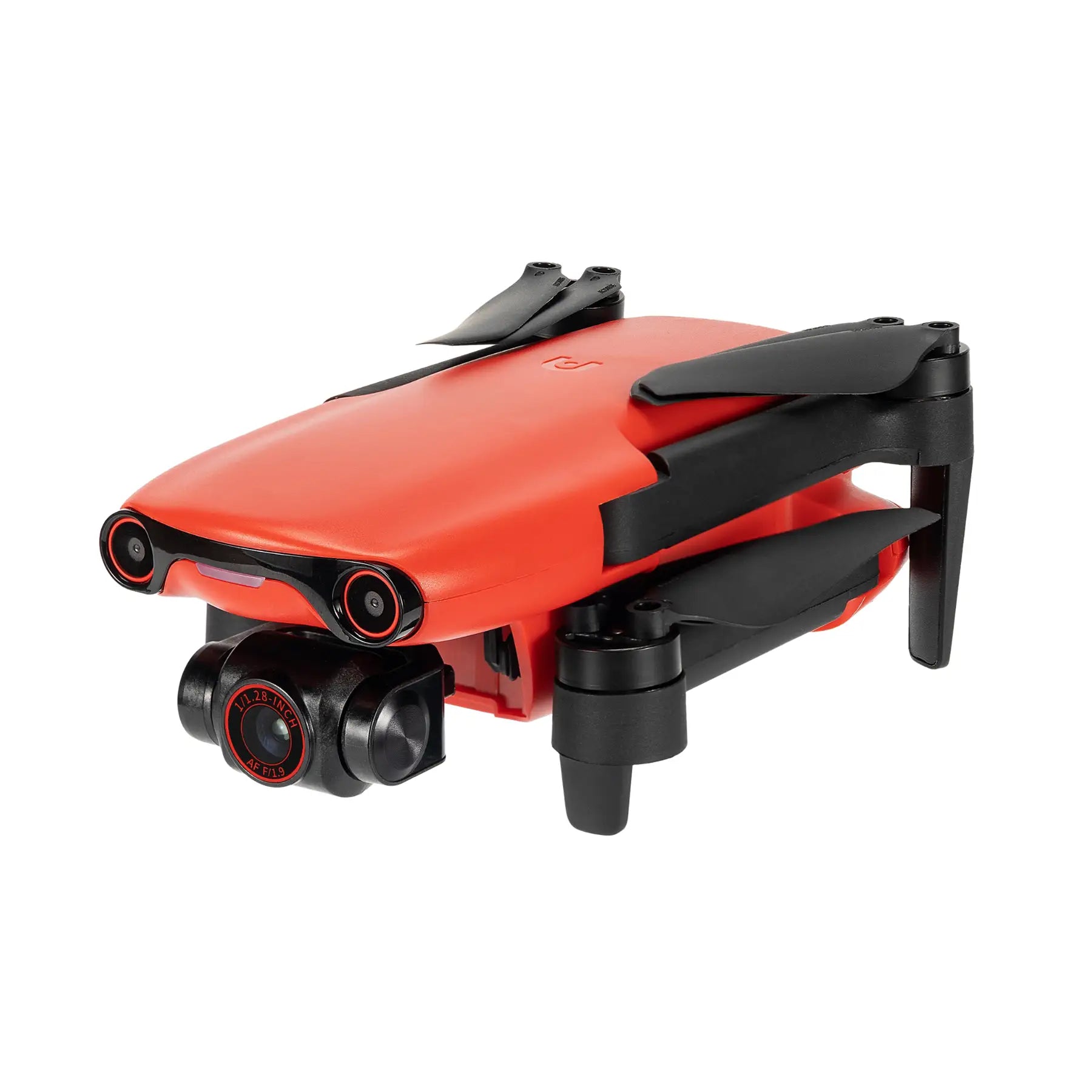

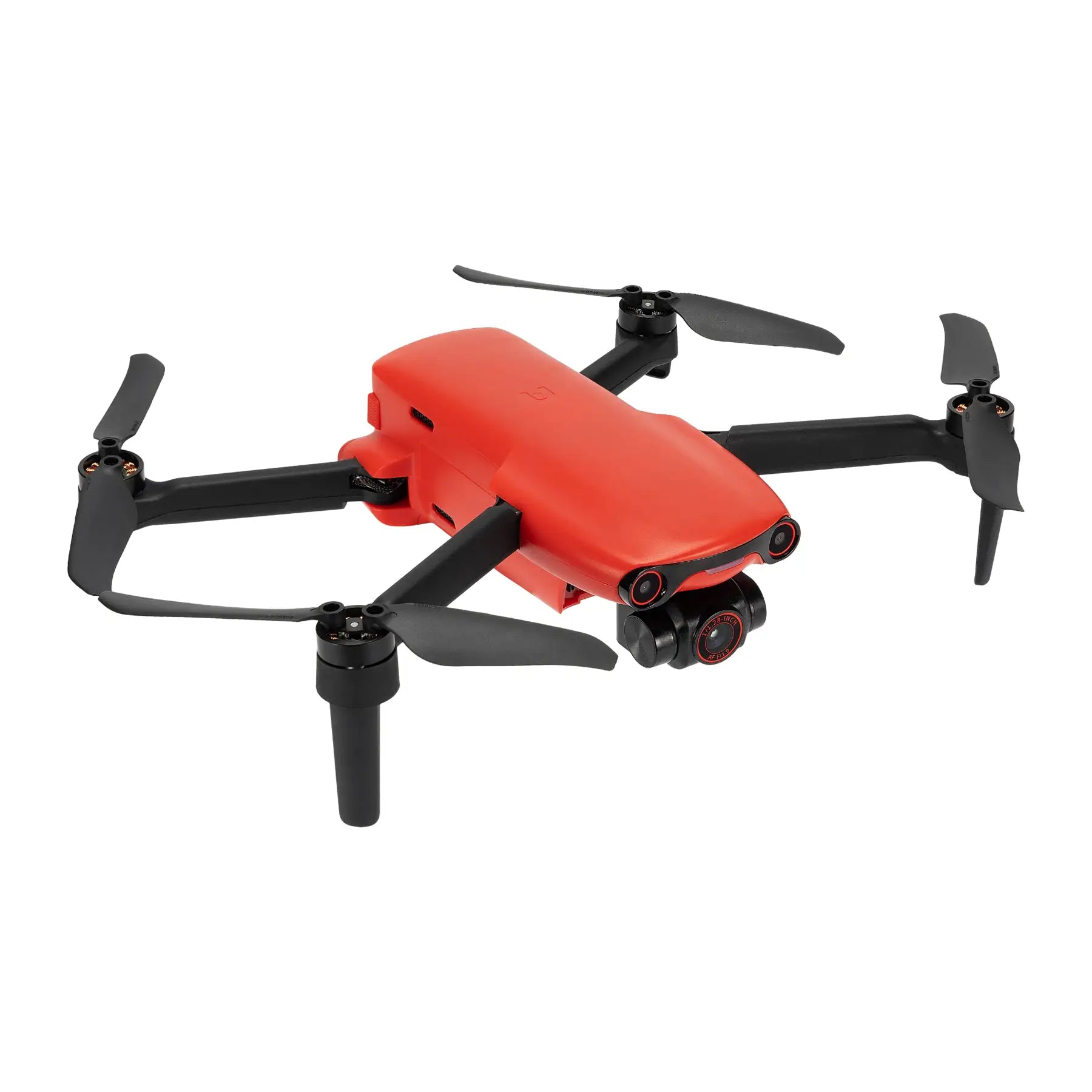

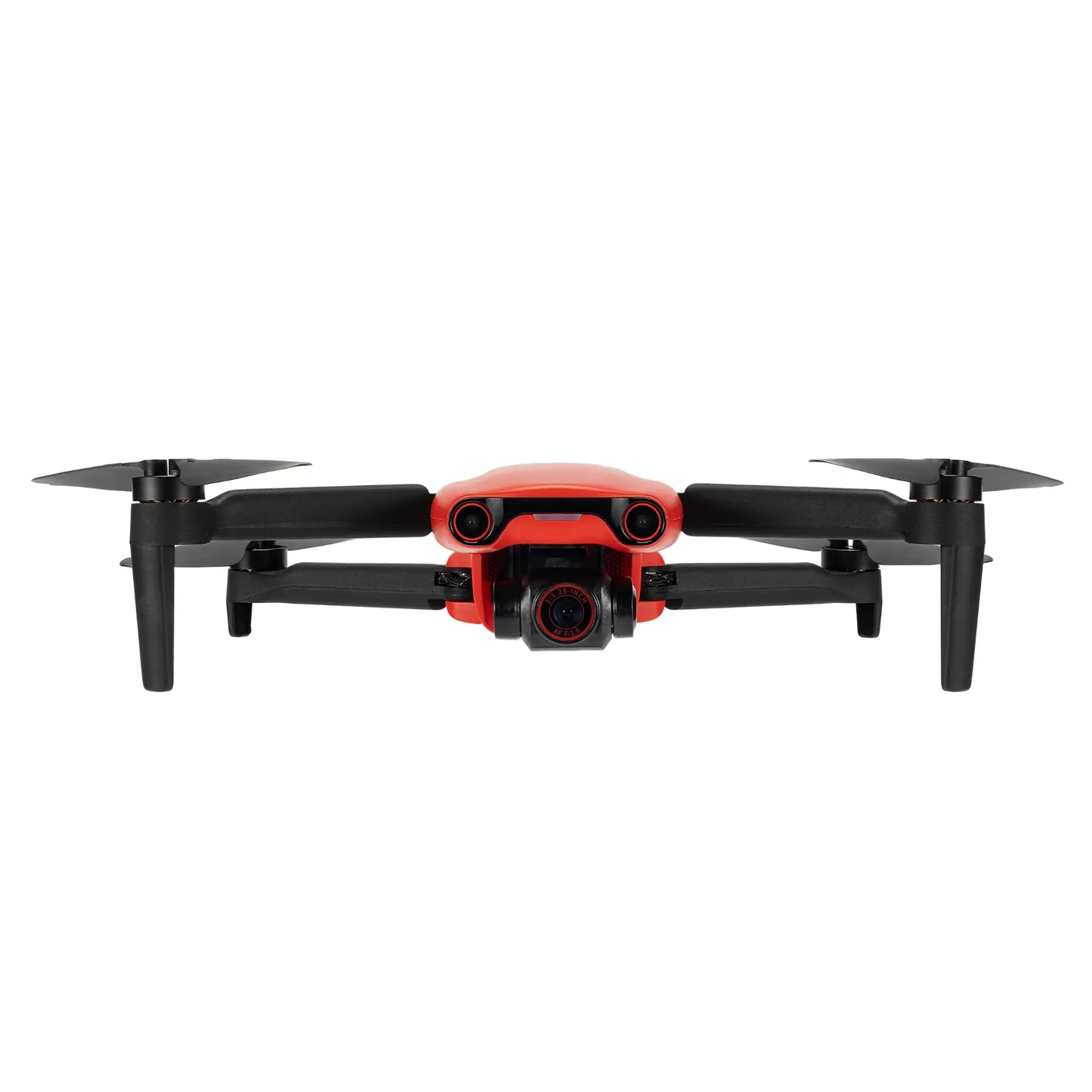

- 1x Autel Robotics EVO Nano+ Drone (Arctic White, Autel Orange, Blazing Red)
- 1x Battery
- 1x Gimbal Cover
- 1x Propellers

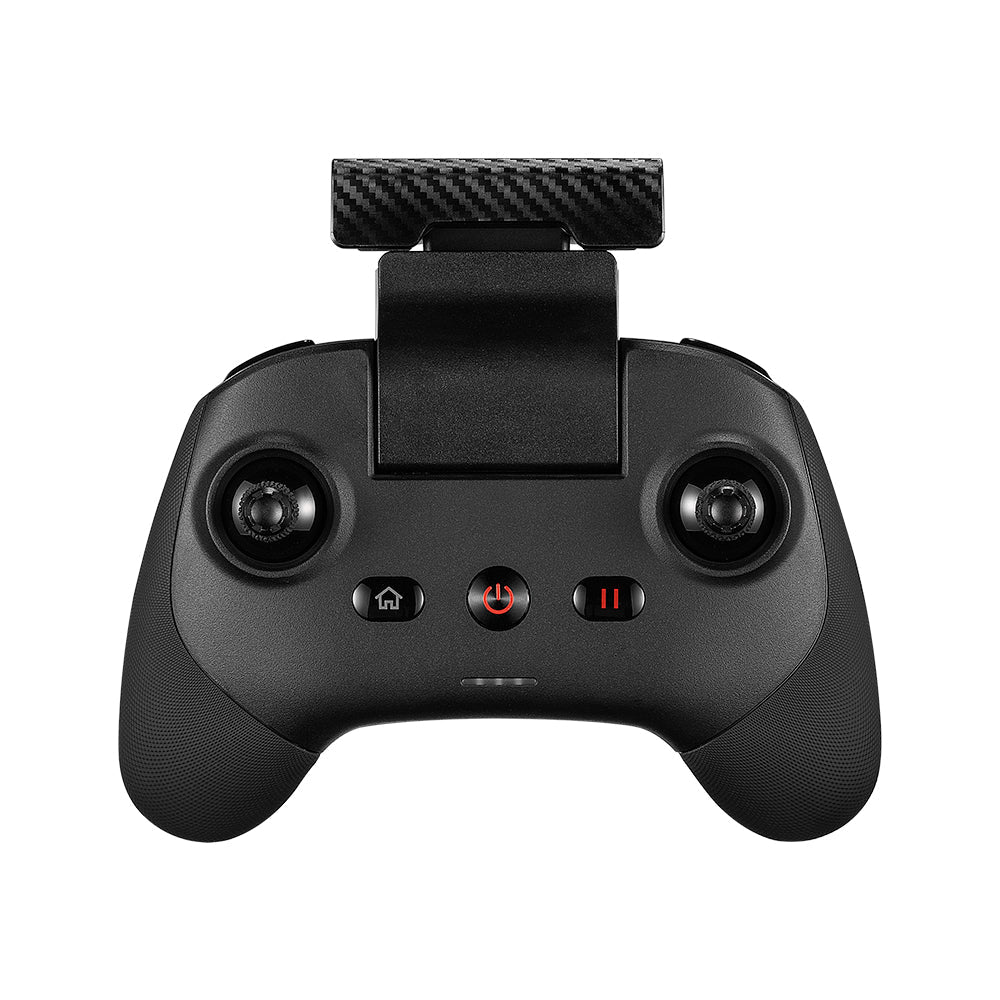

- 1x Remote Controller

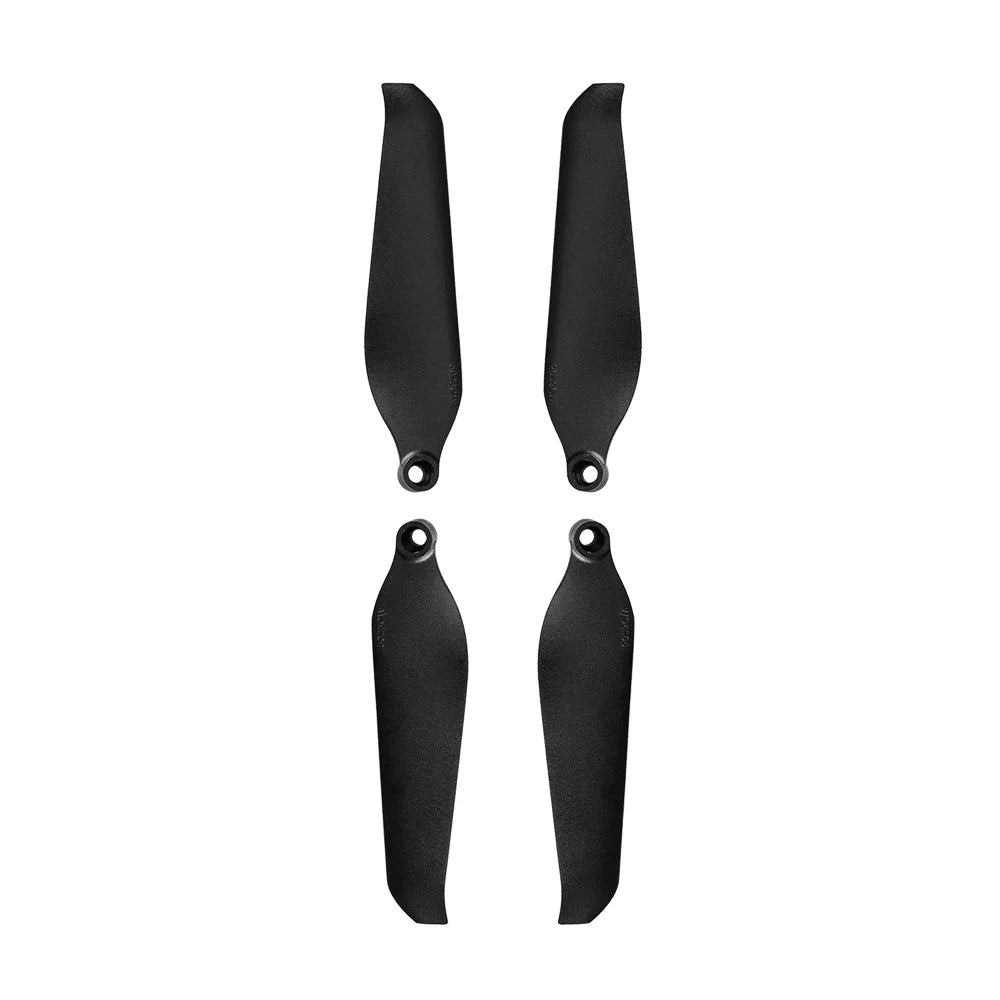

- 1x Pair of Extra Propellers
- 1x USB Type-C Charging Cable

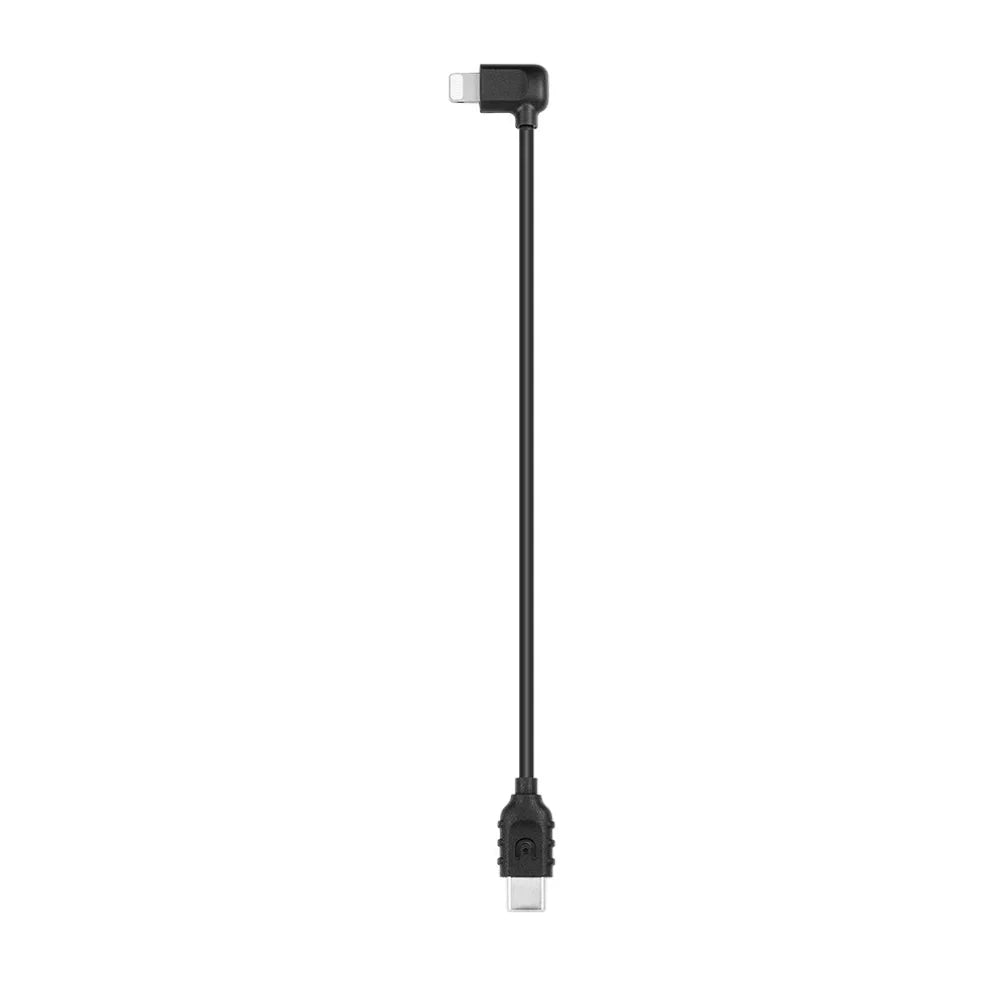

- 1x Lightning Connector
- 1x Micro-USB Connector

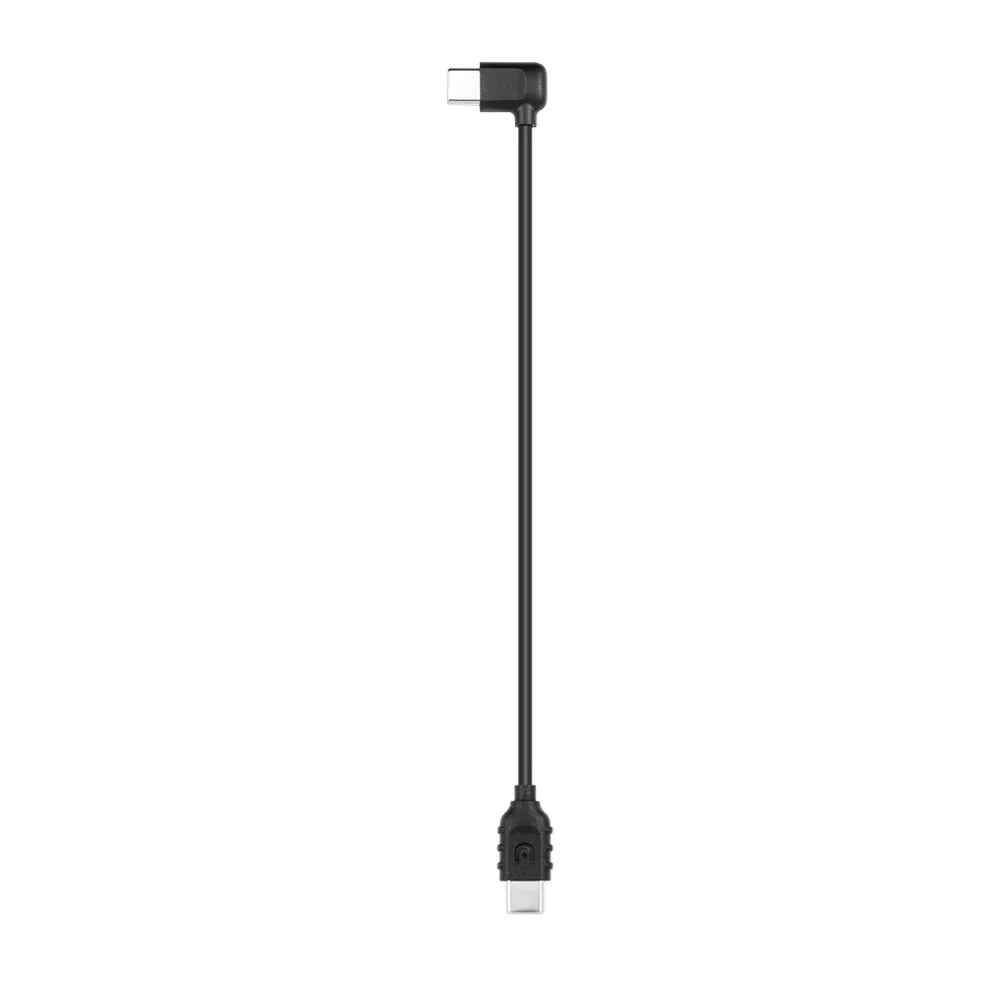

- 1x USB Type-C Connector
- 1x 8 x Spare Screw
- 1x Limited 1-Year Manufacturer Warranty (Main Controller, Gimbal & Camera, & Vision Positioning System)
- 1x Limited 1-Year Manufacturer Warranty (Propulsion System (Excluding Propellers), Remote Controller, & RC Charger)
- 1x Limited 1-Year Manufacturer Warranty (Battery (with Less than 200 Charge Cycles), & Battery Charger)
