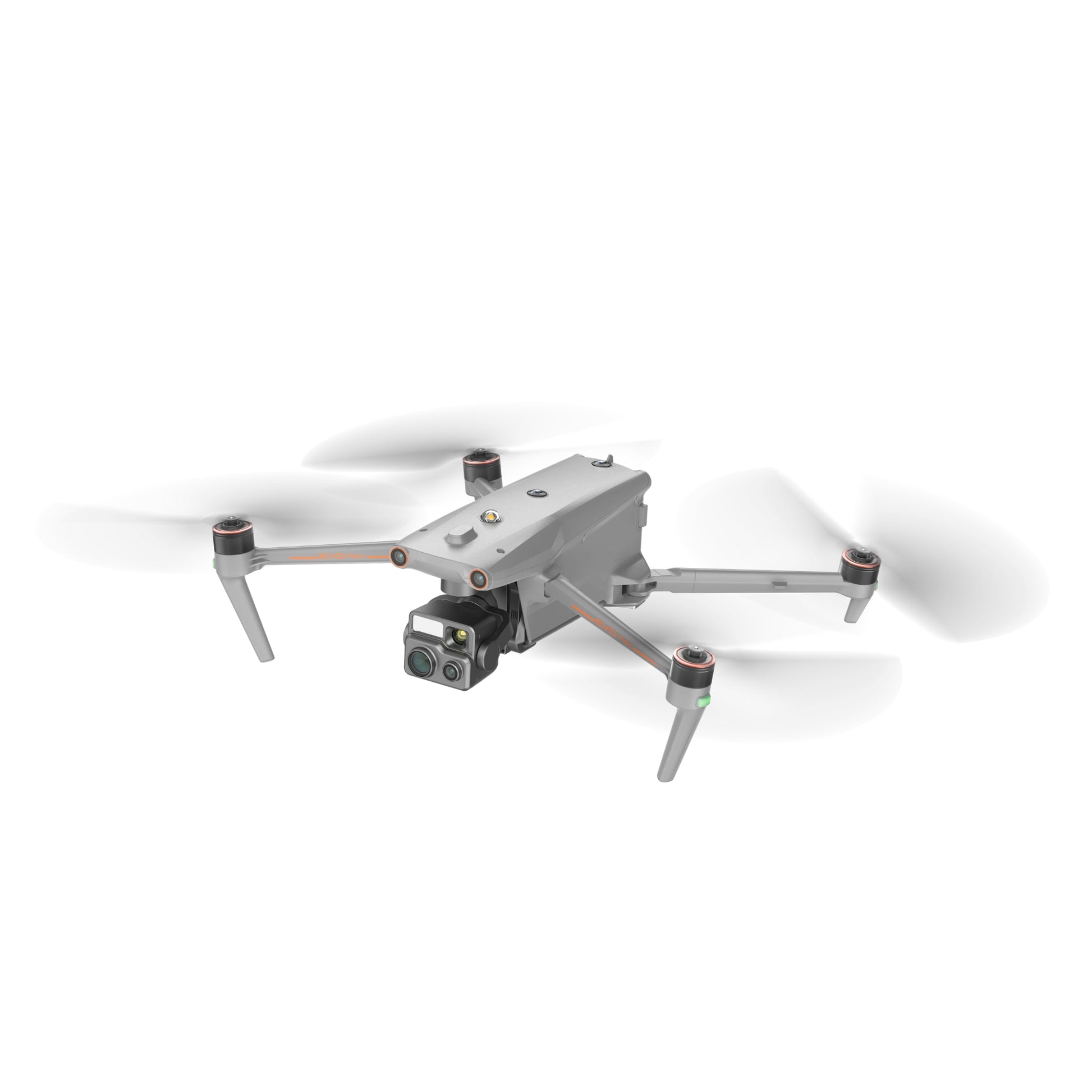

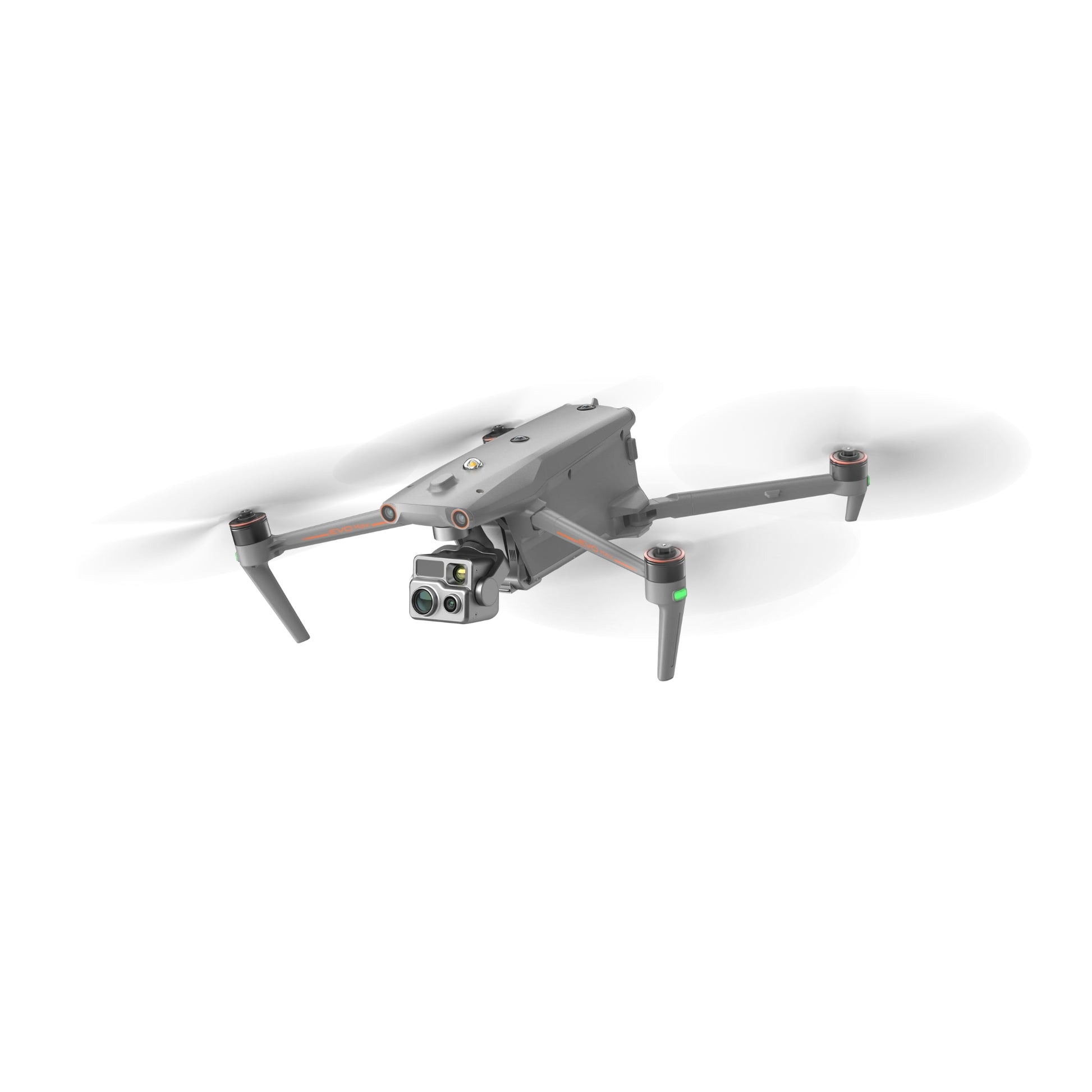

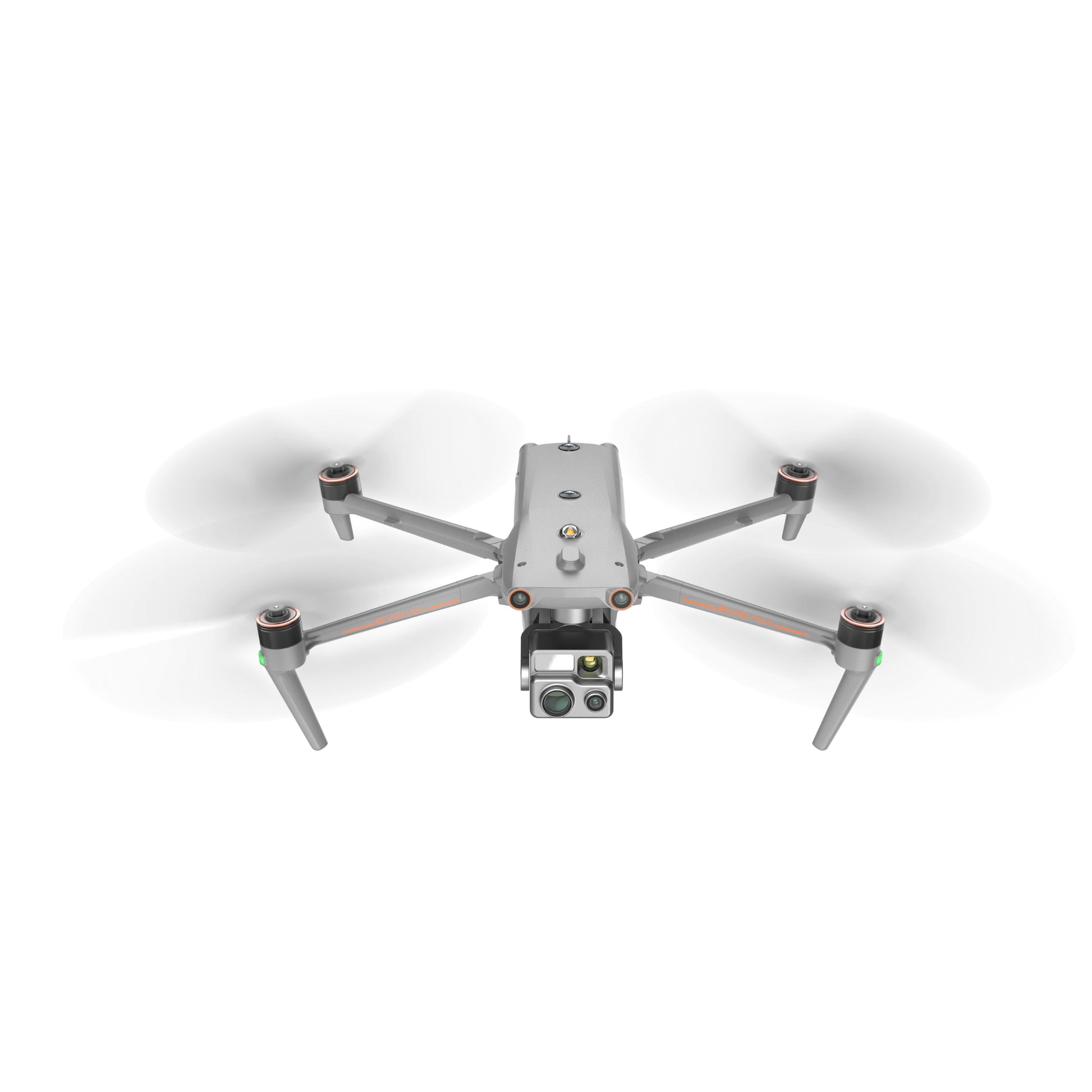

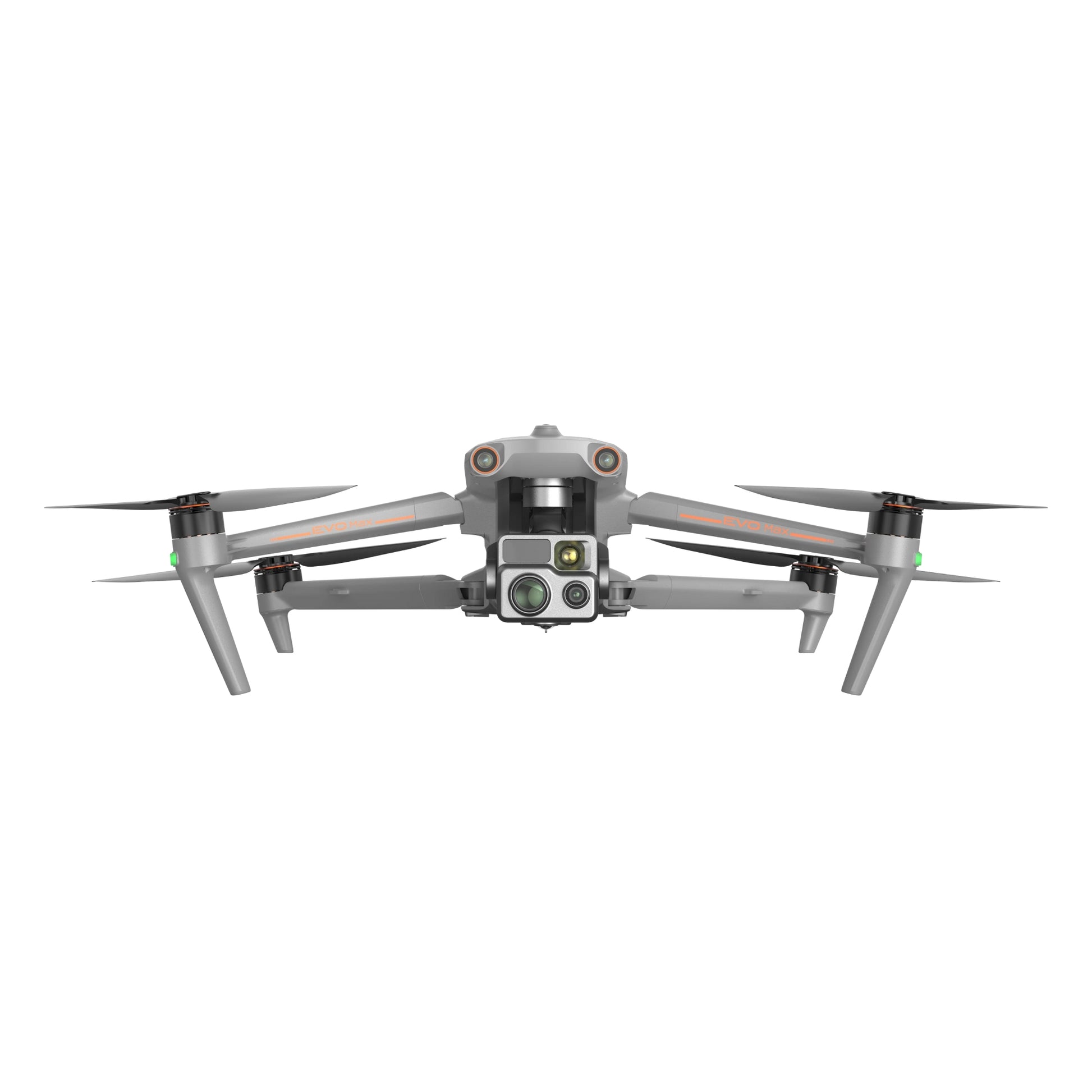

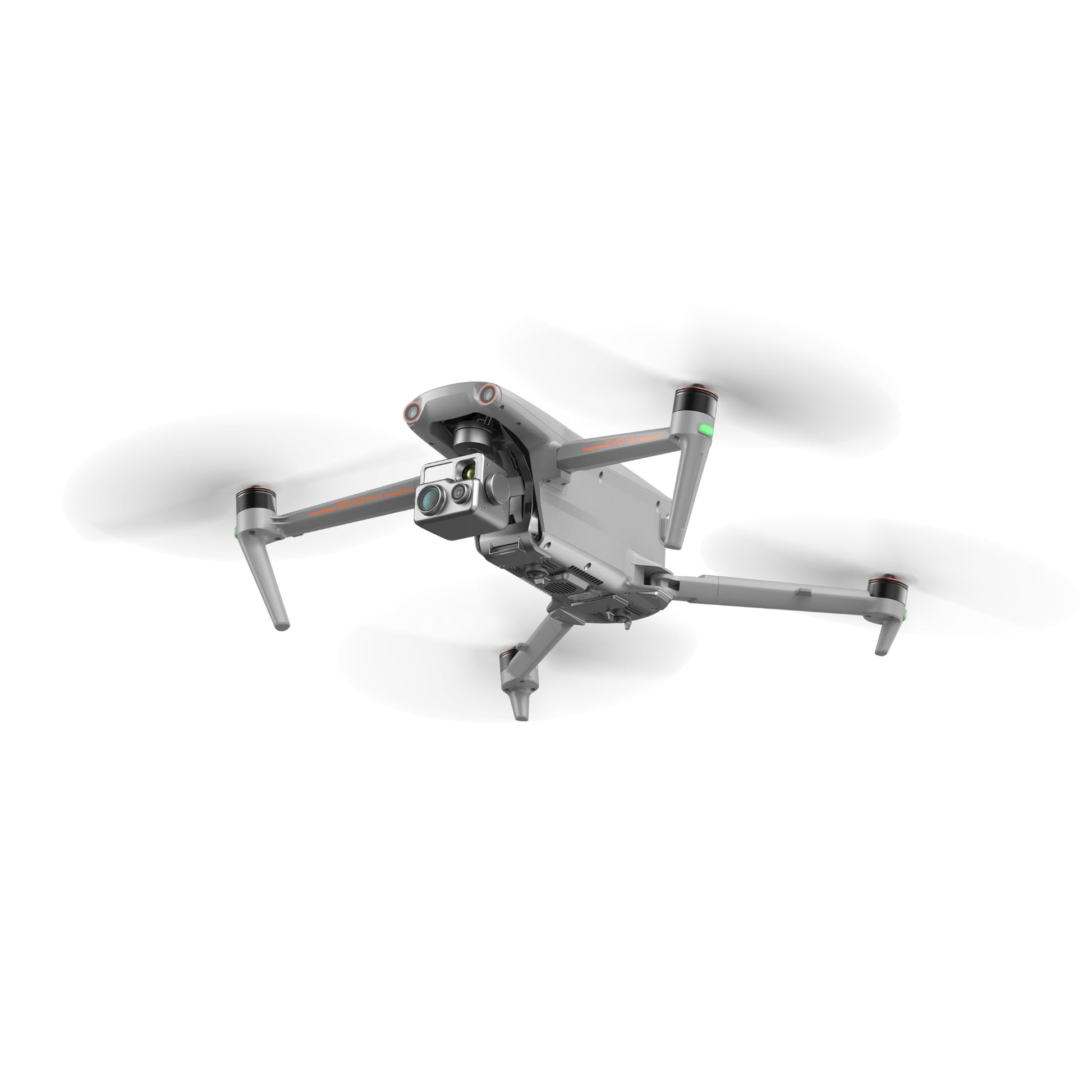

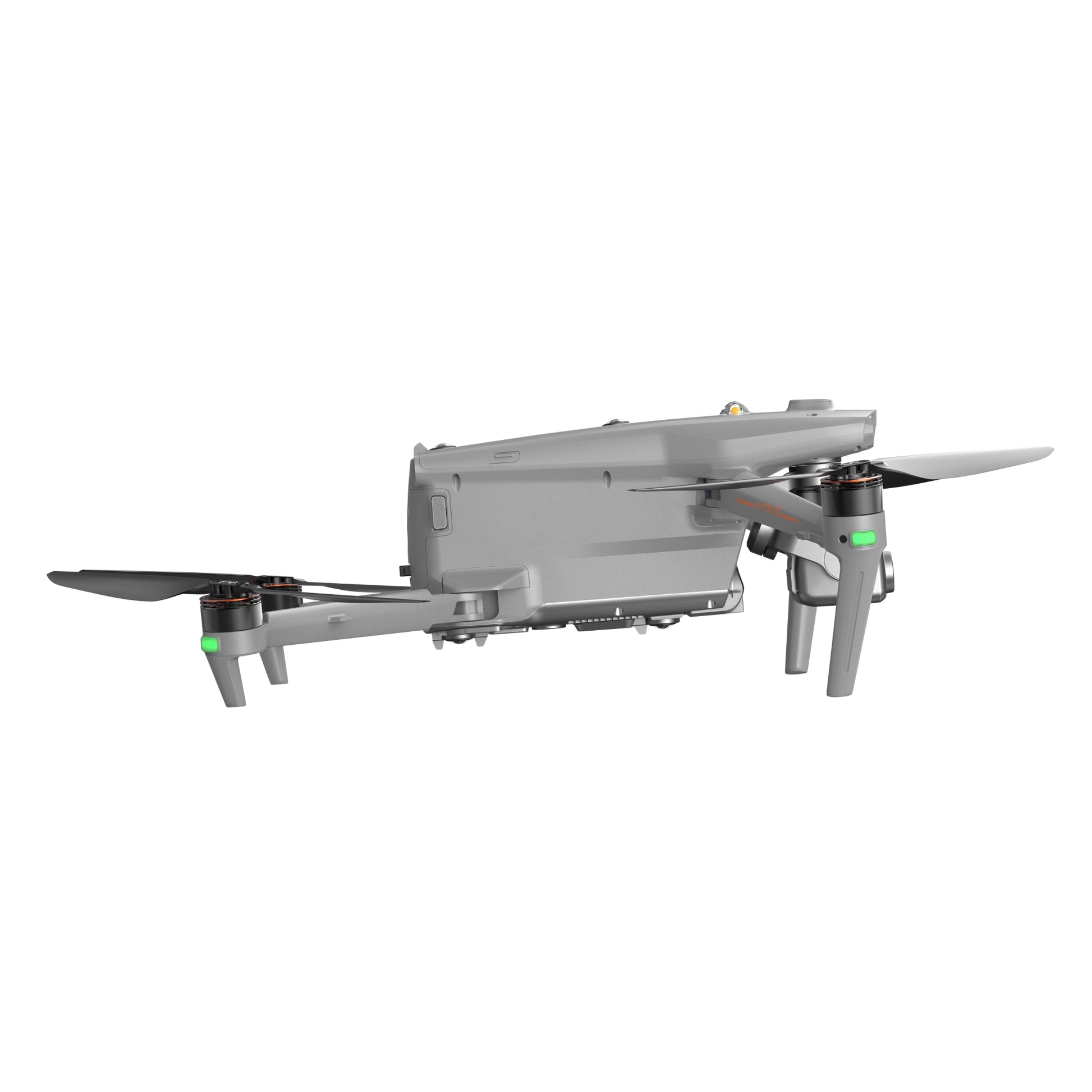

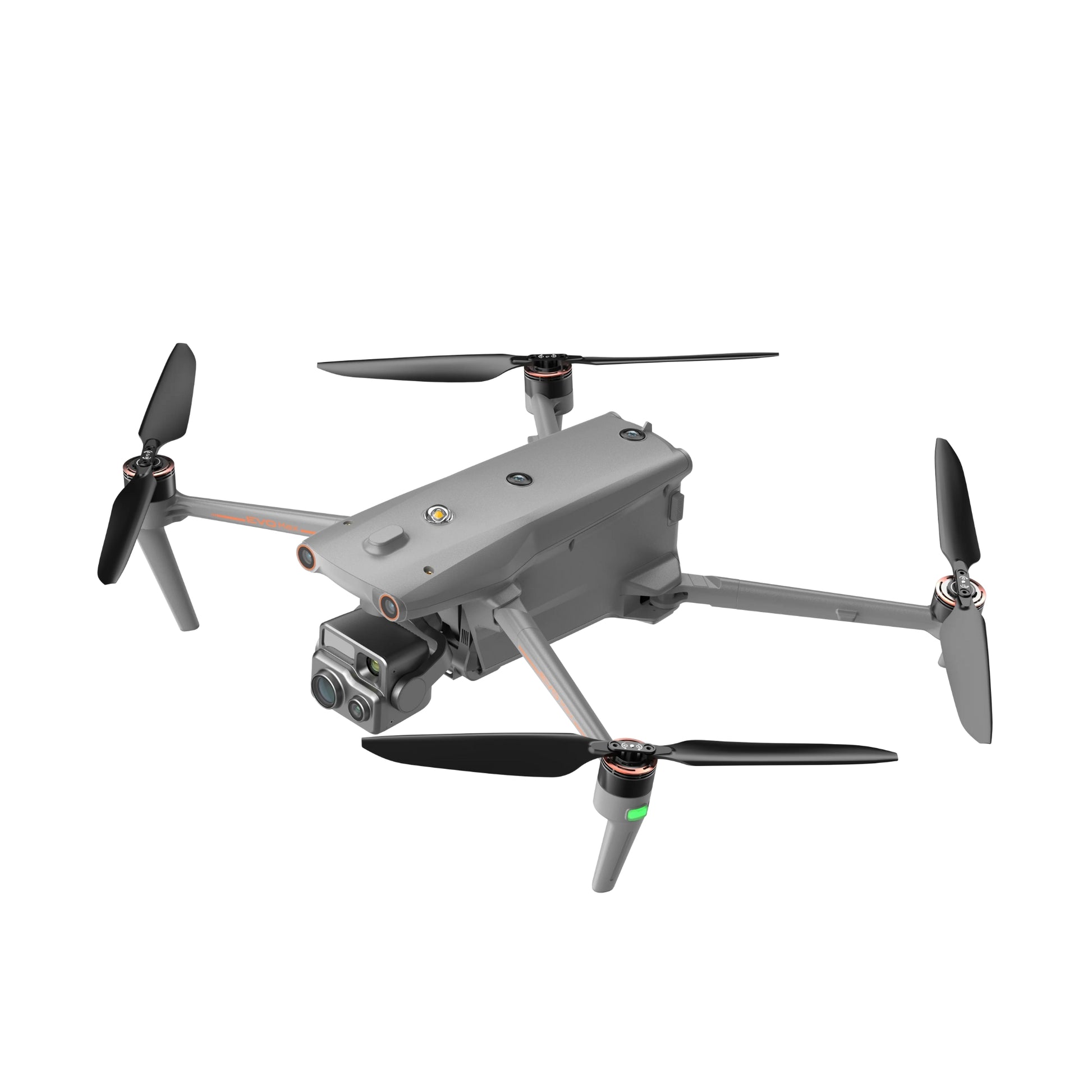

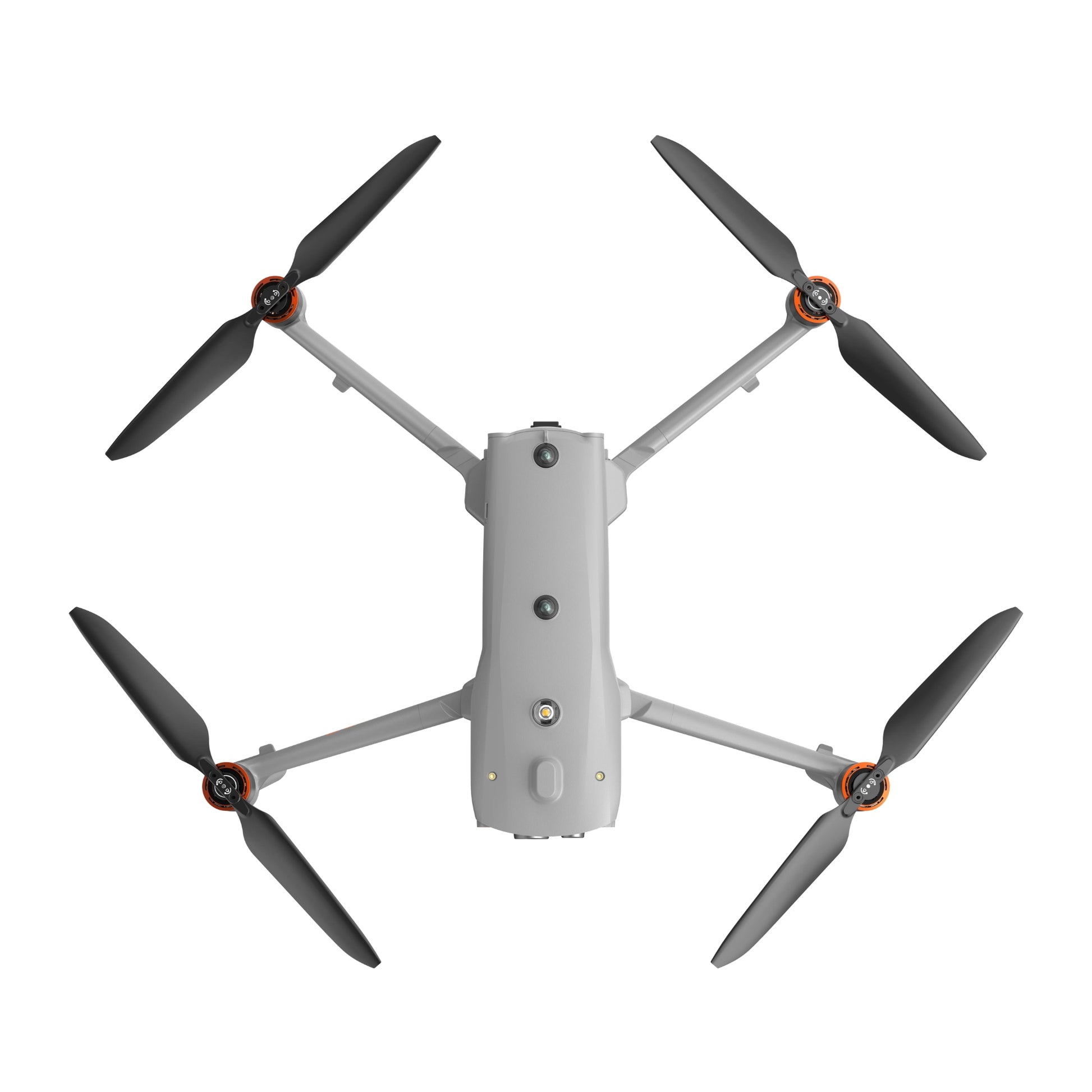

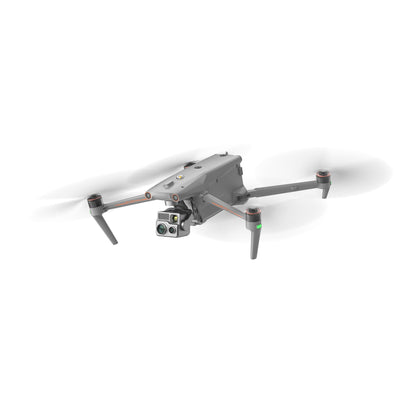

Redefine Aerial Excellence with Autel EVO Max 4T XE
The Autel EVO Max 4T XE is a revolutionary industrial-grade drone designed to empower professionals across various industries with advanced imaging, reliable flight autonomy, and unparalleled connectivity.
Unlike consumer drones, the EVO Max 4T XE offers a suite of specialized features tailored for demanding applications, including search and rescue, infrastructure inspections, and public safety operations.
By integrating Autel Autonomy’s autonomous flight technology, this drone performs complex flight maneuvers, avoids obstacles with precision, and adapts to diverse environmental challenges.
The result is a robust and versatile aerial solution that optimizes efficiency, safety, and performance, allowing users to achieve mission-critical goals from the air.
Advanced Autonomous Navigation and Obstacle Avoidance
- Autonomous Path Planning: Effortlessly navigate complex environments with global path planning and 3D scene reconstruction.
- 360° Obstacle Avoidance: Equipped with a dual fisheye and millimeter-wave radar for 720° sensing, offering complete all-weather obstacle avoidance.
- Reliable Return-to-Home: Safely return to the launch point, even in signal-interference zones, ensuring mission continuity and data security.
Industry-Leading Imaging Capabilities
- FusionLight Camera System: Features a 4K 10x continuous optical zoom camera, ultra-sensitive wide-angle camera, thermal imaging, and a laser rangefinder.
- 8K HD Video Transmission: Experience ultra-high-definition video transmission for real-time decision-making and enhanced situational awareness.
- 160x Hybrid Zoom Capability: Capture intricate details from great distances with clarity, ideal for inspections and surveillance.
- Wide Thermal Operating Range: Thermal camera measures temperatures between -4 °F and 1022 °F, ideal for emergency and industrial applications.
Unmatched Connectivity with A-Mesh Technology
- A-Mesh Networking: Supports autonomous networking between drones and ground terminals, enabling extended, flexible operation across large areas.
- Multi-Device Integration: Maintain robust connections in complex, obstructed environments and collaborate with other drones seamlessly.
- 15-Kilometer HD Video Transmission: Delivers real-time, high-definition visuals to ground operators over long distances.
Professional-Grade Applications for Every Mission
Industrial Inspections and Maintenance
- Power Line & Infrastructure: Conduct efficient inspections in remote locations, capturing high-resolution data for analysis and preventive maintenance.
- Mining & Construction Sites: Survey large areas with detailed imaging and identify operational hazards promptly.
Emergency Response and Public Safety
- Search & Rescue: Use thermal imaging to locate individuals in adverse conditions, even in challenging terrains and weather.
- Law Enforcement & Surveillance: Conduct covert operations with advanced zoom capabilities, ensuring high-quality evidence collection from safe distances.
The Autel EVO Max 4T XE isn’t just a drone; it’s a high-performance tool crafted to redefine standards in industrial operations and critical missions. With its unmatched imaging capabilities, autonomous navigation, and robust connectivity, it’s designed to empower professionals to work safer, faster, and more effectively.
Whether you’re conducting detailed inspections, managing emergency response, or overseeing large-scale infrastructure, the EVO Max 4T XE is the reliable choice for aerial excellence. Discover the full potential of this advanced drone technology at Dronefly today and elevate your mission to new heights.
Specifications
Aircraft
- Weight (battery & propellers included): 1640 g (3.62 lbs, ABX40 smart battery, Fusion 4T gimbal, and propellers included)
- Maximum take-off mass: 1999 g (4.41 lbs)
- Maximum take-off mass (for C2 certification in EU): 1890 g (4.17 lbs)
-
Dimensions:
- 562 × 651 × 147 mm (unfolded, incl. propellers)
- 318 × 400 × 147 mm (unfolded, excl. propellers)
- 257 × 145 × 131 mm (folded, excl. propellers)
- Diagonal wheelbase: 466 mm (1.53 ft)
- Propeller dimension: 11 inches
- Propeller weight: 10.5 g
- Maximum propeller rotational speed: 8000 RPM
-
Maximum ascent speed:
- Slow: 3 m/s
- Smooth: 5 m/s
- Standard: 6 m/s
- Ludicrous: 8 m/s
-
Maximum descent speed:
- Slow: 3 m/s
- Smooth: 5 m/s
- Standard: 6 m/s
- Ludicrous: 6 m/s
-
Maximum horizontal flight speed (windless near sea level):
- Slow: 3 m/s
- Smooth: 10 m/s
- Standard: 15 m/s (forward & backward), 10 m/s (sidewards)
- Ludicrous: 23 m/s (forward), 18 m/s (backward), 20 m/s (sidewards)
-
Maximum service ceiling above sea level:
- 4000 m (13,123 ft) using ABX40 smart battery
- 3000 m (9,843 ft) using ABX41 smart battery
- Maximum flight altitude: 800 m (2625 ft) (altitude limit in app)
- Maximum flight time (windless): 42 minutes
- Maximum hovering time (windless): 38 minutes
- Maximum wind resistance: 12 m/s (27 mph)
- IP rating: IP43 (custom service)
-
Maximum tilt angle:
- Slow: 10°
- Smooth: 30°
- Standard: 30°
- Ludicrous: 36°
-
Maximum angular velocity:
- Pitch axis: 300°/s
- Heading axis: 120°/s
- Operating temperature: -20°C to 50°C (-4°F to 122°F)
- Internal storage: 128 GB (64 GB available, varies with firmware versions)
-
Wi-Fi operating frequency:
- 2.4G: 2.400–2.476 GHz, 2.400–2.4835 GHz
- 5.2G: 5.15-5.25 GHz (only FCC, CE, and UKCA regions), 5.17-5.25 GHz (only Germany)
- 5.8G: 5.725-5.829 GHz, 5.725-5.850 GHz
- GNSS: GPS, Galileo, BeiDou, GLONASS
-
Wi-Fi effective isotropic radiated power (EIRP):
- 2.4G: ≤30 dBm (FCC), ≤20 dBm (CE/SRRC/UKCA), ≤12.14 dBm (MIC)
- 5.2G: ≤30 dBm (FCC), ≤23 dBm (CE/UKCA)
- 5.8G: ≤30 dBm (FCC/SRRC), ≤14 dBm (CE/UKCA)
-
Hovering accuracy:
- Vertically: ±0.1 m (vision systems working normally), ±0.5 m (GNSS working normally)
- Horizontally: ±0.3 m (vision systems working normally), ±0.5 m (GNSS working normally)
- Wi-Fi protocol: 802.11a/b/g/n/ac/ax (supports 2x2 MIMO Wi-Fi)
Gimbal
-
Mechanical range:
- Fusion 4T XE Gimbal: Pitch: -135° to 45°, Yaw: -45° to 45°, Roll: -45° to 45°
- Fusion 4T Gimbal: Pitch: -135° to 45°, Yaw: -45° to 45°, Roll: -45° to 45°
- Fusion 4N Gimbal: Pitch: -135° to 45°, Yaw: -50° to 50°, Roll: -45° to 45°
- Controllable range: Pitch: -90° to 30°
- Stabilization system: 3-axis mechanical gimbal (pitch, yaw, roll)
- Max control speed (pitch): 100º/s
- Angular vibration range: < 0.005°
EVO Max 4T XE Zoom Camera
- Sensor: 1/2" CMOS, 48M effective pixels
- Lens: Focal length: 11.8-43.3 mm, 35 mm equivalent: 64-234 mm, Aperture: f/2.8-f/4.8, Focusing distance: 5 m ~ ∞
-
ISO range:
- Normal mode: Auto: ISO 100 ~ ISO 6400, Manual: Photo: ISO 100 ~ ISO 6400
- Shutter speed: 1/8 s ~ 1/10000 s
- Digital zoom: 2.7-10x continuous optical zoom, 160x hybrid zoom
- Max photo resolution: JPG: 4000 × 3000, 8192 × 6144, DNG: 4000 × 3000
- Max video resolution: 4000 × 3000 30P
EVO Max 4T XE Infrared Thermal Imaging Camera
- Image sensor: Uncooled VOx Microbolometer
- Lens: FOV: 61°, Focal length: 9.1 mm, Aperture: f/1.0, Focusing distance: 2.2 m ~ ∞
- Radiometric measurement accuracy: ±2°C or ±2% of reading (using the larger value) @ ambient temperature range -20°C to 60°C (-4°F to 140°F)
- Video resolution: 640 × 512 30P
- Photo size: 640 × 512
- Pixel pitch: 12 µm
- Radiometric measurement methods: Center measurement, spot measurement, rectangular measurement
- Temperature measurement range: -20°C to 150°C (-4°F to 302°F), 0°C to 550°C (32°F to 1022°F)
- Temperature alert: High and low-temperature alarm thresholds, reporting coordinates and temperature values
- Palette: White Hot, Black Hot, Ironbow, Rainbow
Laser Rangefinder
- Wavelength: 905 nm
- Measurement accuracy: ±(1 m + D×0.15%) where D is the distance to a vertical reflecting plane
- Measuring range: 5 - 1200 m
Wide Angle Camera
- Image sensor: 1/1.28" CMOS, 50M effective pixels
- Lens: DFOV: 85°, Focal length: 4.5 mm (equivalent: 23 mm), Aperture: f/1.9, AF motor: 8-line SMA, PDAF focusing, Focusing distance: 1 m ~ ∞
-
ISO range:
- Auto: Photo: ISO 100 ~ ISO 6400, Video: ISO 100 ~ ISO 64000, Night mode: up to ISO 64000
- Manual: Photo: ISO 100 ~ ISO 12800, Video: ISO 100 ~ ISO 64000
- Shutter speed: Photo: 0.5 s ~ 1/8000 s, Video: 1/30 s ~ 1/8000 s
- Video resolution: 4000 × 3000 30P
- Video format: MP4
- Max bit rate: 70 Mbps
- Photo size: 4000 × 3000 (default), 8000 × 6000
- Photo format: JPG
Image Transmission
-
Operating frequency:
- 900M: 902-928 MHz*
- 2.4G: 2.400–2.476 GHz**, 2.400–2.4835 GHz
- 5.2G: 5.15-5.25 GHz***, 5.17-5.25 GHz****
- 5.8G: 5.725-5.829 GHz**, 5.725-5.850 GHz
-
Max transmission distance (without interference and blocking):
- FCC: 15 km
- CE: 8 km
- Independent networking: Autel Smart Controller V3
-
Effective isotropic radiated power (EIRP):
- 900M: ≤30 dBm (FCC/ISED)
- 2.4G: ≤30 dBm (FCC/ISED), ≤20 dBm (CE/SRRC/UKCA)
- 5.8G: ≤30 dBm (FCC/ISED/SRRC), ≤14 dBm (CE/UKCA)
Millimeter-Wave Radar Sensing System
-
Operating frequency:
- 60G: 60 - 64 GHz
- 24G: 24.0 - 24.25 GHz
-
Effective isotropic radiated power (EIRP):
- 60G: ≤20 dBm (CE/UKCA/FCC)
- 24G: ≤20 mW (SRRC)
-
Sensing range:
- 60G millimeter-wave radar:
- Upward: 0.3 - 20 m
- Downward: 0.15 - 80 m
- Forward & backward: 0.3 - 50 m
- 24G millimeter-wave radar:
- Downward: 0.8 - 12 m
- 60G millimeter-wave radar:
- FOV: Horizontal (6 dB): ±60°/±22° (60 GHz/24 GHz), Vertical (6 dB): ±30°/±20° (60 GHz/24 GHz)
-
Operating environment:
- 60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. The obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
- 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies depending on the ground material. For example, the sensing range on cement is 12 m, while grass with a thickness of more than 3 cm reduces the range to less than 6 m.
Aircraft version limitations*
- To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and 60 GHz radars in the forward, backward, and upward directions.
- In the 24 GHz aircraft version, the 60 GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory. Only the 24 GHz radar in the downward direction is enabled to assist in landing.
- The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.
Visual obstacle avoidance sensing system
-
Sensing range:
- Forward: 19.7 - 1220.5 in (0.5 - 31 m)
- Backward: 19.7 - 984.3 in (0.5 - 25 m)
- Sideward: 19.7 - 1023.6 in (0.5 - 26 m)
- Upward: 0.66 - 85.3 ft (0.2 - 26 m)
- Downward: 0.98 - 75.5 ft (0.3 - 23 m)
-
FOV:
- Forward/backward sensor: 60° (horizontal), 80° (vertical)
- Upward/downward sensor: 180° (sideward), 120° (forward & backward)
-
Operating environment:
- Forward, backward, sideward, and upward: Surface with rich texture, under sufficient lighting (>15 lux, normal indoor fluorescent lighting environment)
- Downward: Diffuse surface with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting (>15 lux, normal indoor fluorescent lighting environment)
Radar and visual obstacle avoidance sensing systems
-
Sensing range:
- Forward & backward: 0.3 - 50 m
- Sidewards: 0.5 - 26 m
- Upward: 0.2 - 26 m
- Downward: 0.15 - 80 m (60 GHz millimeter-wave radar)
-
FOV:
- Forward & backward: 120° (horizontal), 80° (vertical)
- Upward: 180° (sideward), 120° (forward & backward)
- Downward: 180° (sideward), 120° (forward & backward)
-
Operating environment:
- Forward, backward, upward, and downward: Supports all-weather obstacle avoidance for various conditions, including water, forests, buildings, and high voltage lines. At least one of the two conditions should be met: sufficient lighting or the obstacle has a strong reflection ability to electromagnetic waves.
- Sidewards: Surface with rich texture, under sufficient lighting (>15 lux, normal indoor fluorescent lighting environment).
Autel smart controller V3
-
Display:
- Dimensions: 7.9 inches
- Maximum brightness: 2000 nits
- Resolution: 2048 × 1536
- Refresh rate: 60 Hz
-
Battery:
- Battery type: Li-Po 3S
- Rated capacity: 5800 mAh
- Voltage: 11.55 V
- Battery energy: 67 Wh
- Charging time: 120 minutes
- Operating time: 2.5 hours (max brightness), 4.0 hours (50% brightness)
-
Maximum transmission distance (without interference and blocking):
- FCC: 15 km (9.3 miles)
- CE/SRRC: 8 km (4.9 miles)
- IP rating: IP43
- Internal storage: 128 GB
- GNSS: GPS, GLONASS, Galileo, BeiDou
- Operating temperature: -4°F to 104°F (-20°C to 40°C)
- Wi-Fi protocol: 802.11a/b/g/n/ac (supports 2x2 MIMO Wi-Fi)
-
Wi-Fi operating frequency:
- 2.4G: 2.400–2.476 GHz, 2.400–2.4835 GHz
- 5.8G: 5.725-5.829 GHz, 5.725-5.850 GHz
-
Wi-Fi effective isotropic radiated power (EIRP):
- 2.4G: ≤30 dBm (FCC/ISED); ≤20 dBm (CE/SRRC/UKCA)
- 5.8G: ≤30 dBm (FCC/ISED/SRRC); ≤14 dBm (CE/UKCA)
Smart battery
- Battery dimension: 158.4 × 74.3 × 50.7 mm
- Operating temperature: -4°F to 113°F (-20°C to 50°C)
-
Rated capacity:
- ABX40: 8070 mAh
- ABX41: 9248 mAh
-
Voltage:
- ABX40: 14.88 V
- ABX41: 14.76 V
- Battery type: LiPo 4S
-
Battery energy:
- ABX40: 120 Wh
- ABX41: 136.5 Wh
-
Weight:
- ABX40: 1.15 lbs (520 g)
- ABX41: 1.17 lbs (533 g)
-
Battery charge temperature: 41°F to 113°F (5°C to 45°C)
- When the battery temperature is below +5°C, the battery stops charging and activates self-heating.
- When the battery temperature is above +45°C, the battery stops charging.
- Hot swappable: Supported
In the Box
- 1x Autel EVO Max 4 Aircraft
- 1x Autel EVO Max 4T XE Camera/Gimbal
- 1x Autel EVO Max 4 Series Intelligent Flight Battery
- 1x Autel EVO Max 4 Series Gimbal Cover
- 1x Autel EVO Max 4 Series Battery Charger & Power Cable
- 3x Autel EVO Max 4 Series Propellers (Pair) x3 (3-CW/3-CCW)
- 1x Autel Smart Controller V3
- 1x Autel Smart Controller Lanyard
- 1x Autel Smart Controller Cover
- 1x Autel Smart Controller Joysticks (Spare Pair) x1
- 1x Autel RC Charger
- 1x Autel RC Charging Cable
- 1x Autel EVO Max 4 Series Rugged Case
- 1x 64GB MicroSD Card
- 1x Screwdriver
- 1x Data Cable
- 1x Manual
- 1x Quick Start Guide
- 1x Packing List
- 1x Limited 1-Year Manufacturer Warranty
