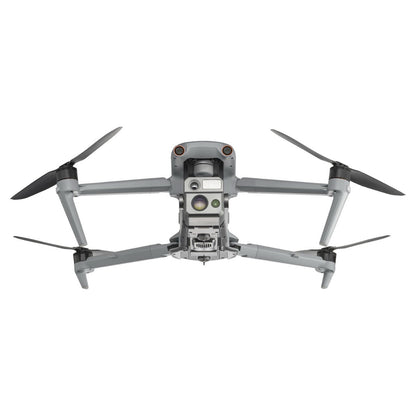

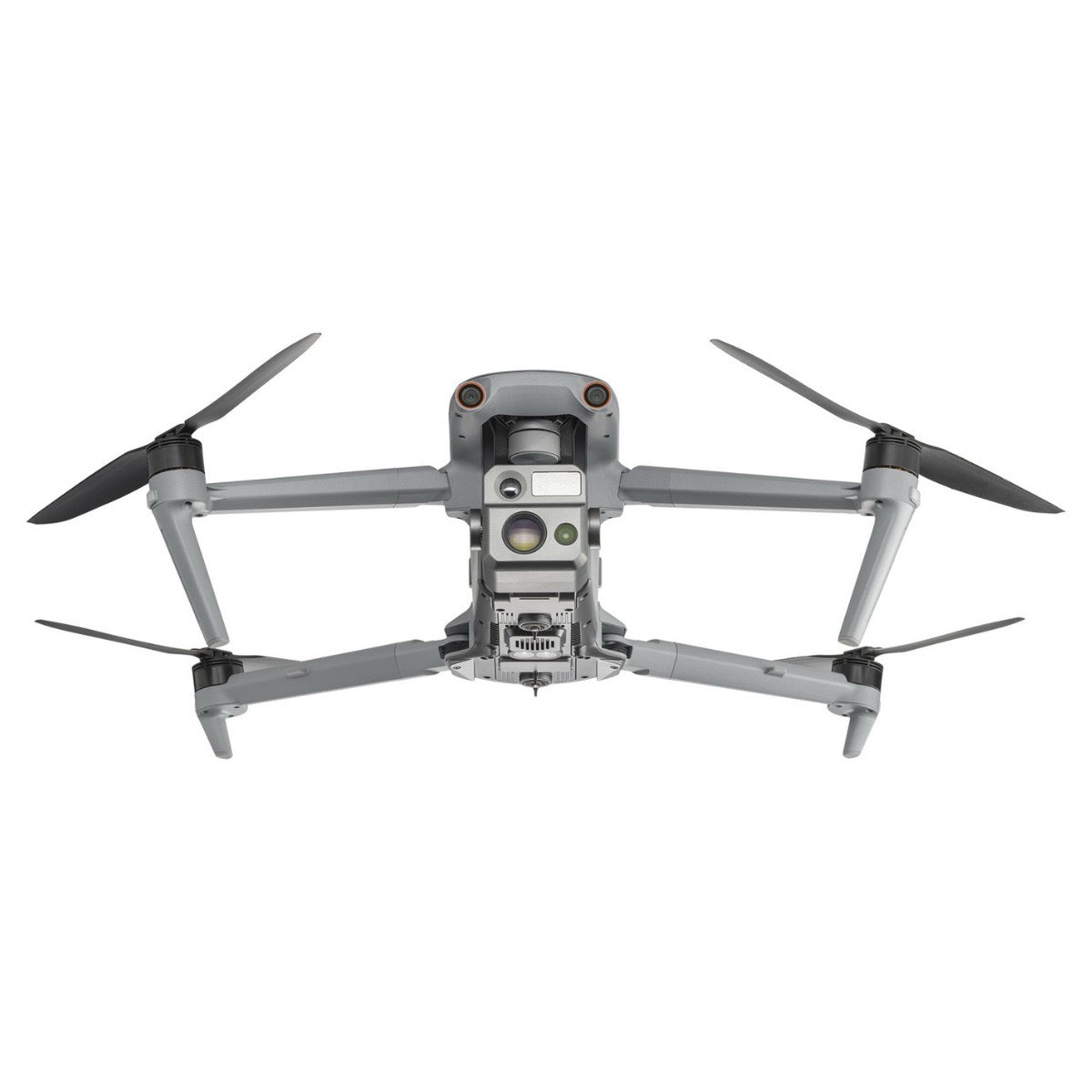

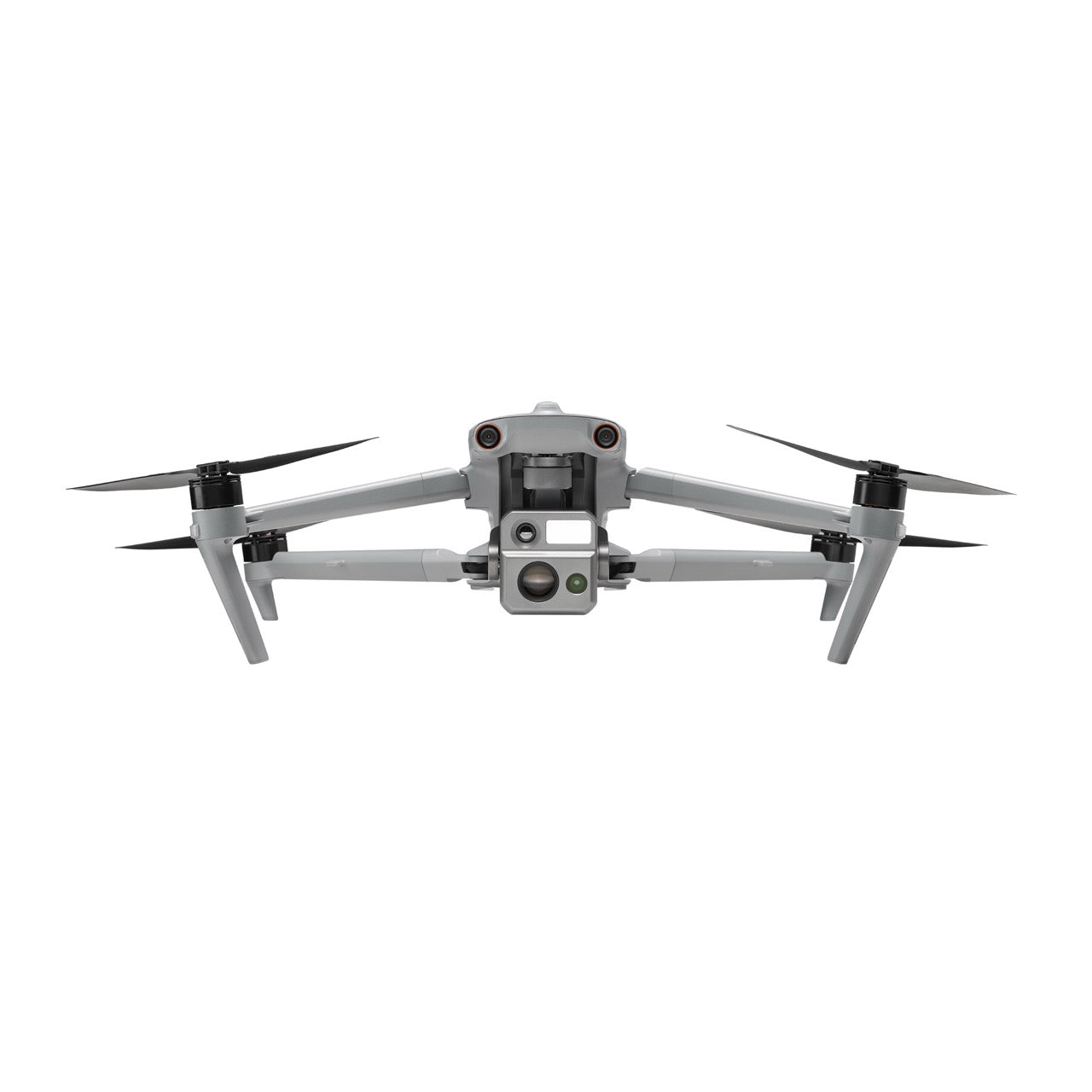

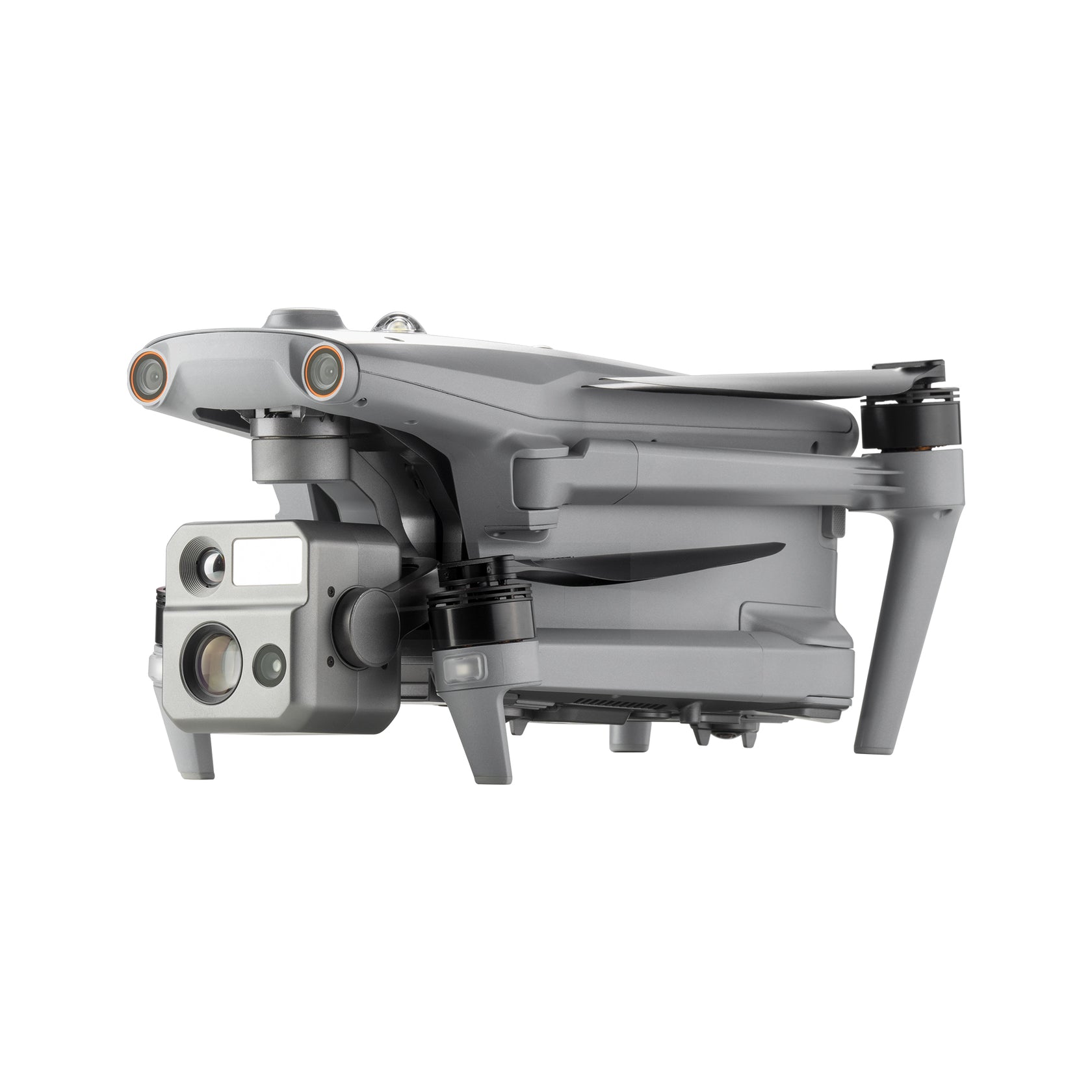

Unlock New Aerial Possibilities with the Autel EVO Max 4N
The Autel EVO Max 4N redefines what’s possible with drones, offering groundbreaking capabilities that push performance limits. With cutting-edge technology and intelligent autonomy, it effortlessly navigates complex environments in real-time using 3D flight mapping.
Experience unparalleled obstacle avoidance and fly seamlessly even without a GPS signal—all within a foldable, weather-resistant design that ensures superior portability. Its advanced thermal imaging payload makes object detection and tracking more precise than ever.
Versatile and High-Performance Payload System

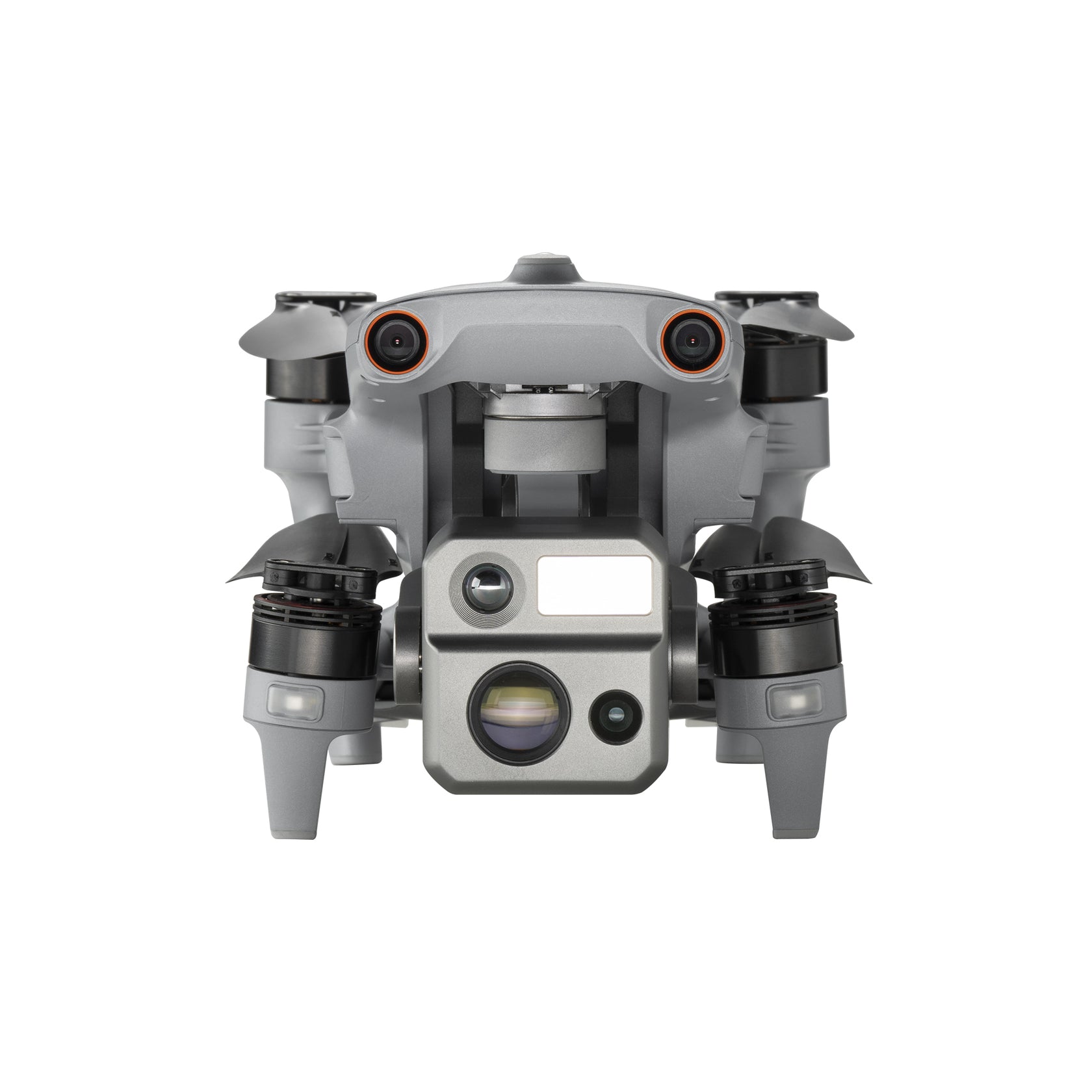

Designed for multiple applications, the EVO Max 4N features a detachable payload for quick replacements, upgrades, or repairs with just two screws. Here are some of its standout components:
- Starlight Camera
Capture night scenes with precision. This 2.3MP camera ensures clear, detailed imaging even in low-light environments.
- Wide Camera
Featuring a 50MP sensor, it records 4K 30fps video with a maximum ISO of 64000. The Moonlight Algorithm 2.0 enhances image quality by reducing noise and boosting HDR, delivering crisp, detailed visuals even in dim lighting.
- Thermal Camera
Offers high-resolution 640x512 thermal imaging with 30fps video and 16x digital zoom for superior thermal detection.
- Laser Rangefinder
Pinpoint target coordinates and altitude from up to 0.75 miles away with a single tap on the RC screen.
Navigate with Ease
The Autel Autonomy Engine collects environmental data to create dynamic 3D flight paths, allowing effortless navigation through challenging terrains like forests, buildings, and mountainous landscapes. Ideal for 3D scene reconstruction, public safety operations, industrial inspections, and land surveys.
Fly Without GPS
Advanced sensor technology enables the EVO Max 4N to operate in GPS-denied locations such as underground facilities or enclosed structures.
Precision Tracking and Identification
Autel’s AI recognition system enables real-time object detection, tracking heat signatures, moving people, or vehicles from high altitudes—making it a powerful tool for law enforcement and surveillance.
Eliminate Blind Spots and Combat Interference
Integrating millimeter wave radar with traditional binocular vision, the EVO Max 4N detects objects as small as 0.5 inches, ensuring safe flight even in low-light conditions.
Its advanced flight control algorithms counteract RFI, EMI, and GPS spoofing, allowing safe operation near power lines, sensitive infrastructure, and rugged landscapes.
Build Your EVO Max Drone Network
Autel introduces A-Mesh 1.0, the industry’s first drone-to-drone networking system. This innovative technology allows multiple EVO Max 4N drones to communicate, coordinate, and autonomously share data.
Unlike traditional chain-link systems, A-Mesh ensures continued operation even if one drone exits the network. Whether with or without LTE coverage, single or multiple pilots can manage entire drone fleets efficiently.
Data Security You Can Trust
Autel prioritizes data protection. The EVO Max 4N safeguards flight logs, location data, and user information with local-only access.
It supports AES-256 encryption for videos, images, and logs, ensuring that all data remains secure and password-protected.
Multiple Use Cases
The Autel EVO Max 4 is designed to be used by multiple industries for various use cases.
Law enforcement
- Subject monitoring & tracking
- General reconnaissance & intel gathering
- Disaster response
- Scene photography and reconstruction
- Pre-planning & situational response
Fire and rescue
- Identify fire lines
- Maintain fire breaks
- Inspection of structures & hot spots
- Visual access to areas with difficult terrain
- Identify impassable areas for support aircraft
Utilities and infrastructure
- Simplified tower inspection
- Power & pipeline inspection
- Wind turbine inspection
- Grid mapping & surveying
- Site patrol & security
Construction
- Site planning & evaluation
- Monitoring & tracking
- Progress reports, validation, & proof of execution
- Site patrol & security
Mining and mapping
- Planning & progress monitoring
- Volumetrics
- Change detection
- Remediation
- Safety, security, and surveillance
Content and media
- Real-time coverage of events
- Incident reconstruction & storytelling
- Photos & videos in hard to reach locations
- Content creation & cinematography
- Frequent updates & reports on key topics
Specifications
| EVO Max Series (4T/4N) Specifications | |
| Aircraft | |
| EVO Max 4T Weight | 3.57 lbs (1620g, battery and gimbal included) |
| EVO Max 4N Weight | 3.62 lbs (1641g, battery and gimbal included) |
| Max. Takeoff Weight | 4.41 lbs (1999g) |
|
Dimensions
|
562×651×147mm (unfolded, incl. propellers) |
| 318×400×147mm (unfolded, excl. propellers) | |
| 257×145×131mm (folded, excl. propellers) | |
| Diagonal Wheelbase | 1.53 ft (466mm) |
| Max Ascent Speed | 8m/s |
| Max Descent Speed | 6m/s |
| Max Horizontal Speed* (windless near sea level) | 23m/s *Maximum speed in Ludicrous Mode is 19m/s in EU regions. |
| Max Takeoff Altitude | 13,124 ft (4000m) |
| Max Flight Time (windless) | 42 mins |
| Max Hovering Time (windless) | 38 mins |
| Max Wind Resistance | 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s). |
| IP Rating | IP43 |
| Max Tilt Angle | 35° |
| Max Angular Velocity | Pitch: 300°/s，Yaw: 120°/s |
| Operating Temperature | -4°F to 122°F (-20℃ to 50℃) |
| Internal Storage | 128GB internal storage, with 64GB of available space* (Remaining available space will vary with different firmware versions) |
|
Operating Frequency
|
2.4GHz/5.8GHz |
| 5.2GHz (only applicable for FCC, CE, and UKCA regions). | |
| 900MHz (only applicable for FCC regions). | |
| GNSS | GPS+Galileo+BeiDou+GLONASS |
|
Hovering Accuracy
|
Vertically: |
| ±0.1 m (when vision systems working normally) | |
| ±0.5 m (when GNSS working normally) | |
| Horizontally: | |
| ±0.3 m (when vision systems working normally) | |
| ±0.5 m (when GNSS working normally) | |
|
Wi-Fi Protocol
|
802.11a/b/g/n/ac/ax |
| Supports 2×2 MIMO Wi-Fi | |
|
Wi-Fi Operating Frequency
|
2.400-2.4835GHz |
| 5.150-5.250GHz (CE/FCC/MIC) | |
| 5.725-5.850GHz (excluding MIC) | |
|
Wi-Fi Transmitter Power (EIRP)
|
2.400-2.4835GHz |
| FCC: <30dBm | |
| CE/SRRC/MIC: <20dBm | |
| 5.150-5.250GHz | |
| FCC/CE/MIC: <22dBm | |
| 5.725‒5.850GHz | |
| FCC/SRRC: <21dBm | |
| CE: <14dBm | |
| Gimbal | |
|
Mechanical Range
|
Pitch: -135° to 45° |
| Yaw: -45° to 45° | |
| Roll: -45° to 45° | |
| Controllable Range | -90° to 30° |
| Stability System | 3-axis mechanical gimbal (pitch, yaw, roll) |
| Max Control Speed (Pitch) | 200°/s |
| Angular Vibration Range | <0.005° |
| EVO Max 4T Zoom Camera (Telephoto) | |
| Sensor | 1/2" CMOS, Effective pixels: 48M |
|
Lens
|
Focal Length: 11.8-43.3mm(35mm, equivalent：64-234mm) |
| Aperture: f/2.8-f/4.8 | |
| Focusing distance: 5m ~ ∞ | |
| Exposure Compensation | ±3EV 0.3EV/step |
|
ISO Range
|
Normal Mode |
| Auto: ISO100 - ISO6400 | |
| Manual | |
| Photo: ISO100 - ISO12800 | |
| Video: ISO100 - ISO6400 | |
|
Shutter Speed
|
Photo: 8s - 1/8000s |
| Video: 1s - 1/8000s | |
| Max. Photo Resolution | 8000×6000 |
| Max. Video Resolution | 7680×4320 |
| EVO Max 4T Thermal Camera | |
| Thermal Imager | Uncooled VOx Microbolometer |
|
Lens
|
FOV：42° |
| Focal length: 13mm | |
| Aperture: f/1.2 | |
| Focusing Distance: 6m ~ ∞ | |
| Infrared Temperature Measurement Accuracy | ±3℃ or reading ±3% (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃~60℃) |
| Video Resolution | 640×512@25FPS |
| Photo Size | 640×512 |
| Pixel Pitch | 12um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |
| EVO Max 4N Night Vision Camera | |
| Sensor | Effective Pixels: 2.3M |
|
Lens
|
Focal Length: 35mm (equivalent 41.4mm) |
| FOV：52° | |
| Zoom Range: 1-8x, supports linkage zoom | |
|
ISO Range
|
Auto: ISO100-ISO450000 |
| Super Sensitive Mode: Auto ISO100-ISO450000 | |
| Camera Modes | Single shot (default), long press for continuous shots |
| Photo Format | JPG |
| Photo Resolution | 1920×1200 |
| Video Format | MP4 |
| Video Resolution | 20Mbps (1920×1200 P30) |
| HDR Video | Auto |
| Video Output | Super Sensitive Mode: 1920×1200 P30 |
| EVO Max 4N Thermal Camera | |
| Sensor | Uncooled VOx Microbolometer |
|
Lens
|
FOV：61° |
| Focal length: 9.1mm | |
| Aperture: f/1.0 | |
| Focusing Distance: 2.2m ~ ∞ | |
| Infrared Temperature Measurement Accuracy | ±3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃-60℃) |
| Video Resolution | 640×512@30FPS |
| Photo Size | 640×512 |
| Pixel Pitch | 12um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |
| Wide-Angle Camera | |
| Sensor | 1/1.28 CMOS, Effective pixels: 50M |
|
Lens
|
DFOV: 85° |
| Focal Length: 4.5 mm (equivalent: 23 mm) | |
| Aperture: f/1.9 | |
| AF motor: 8-line SMA, PDAF focusing | |
| Focusing Distance: 1m ~ ∞ | |
| Exposure Compensation | ±3EV 0.3EV/step |
|
ISO Range
|
Auto: |
| Photo: ISO100-ISO6400 | |
| Video: ISO100-ISO64000 (Night mode: up to ISO64000) | |
| Manual: | |
| Photo: ISO100-ISO12800 | |
| Video: ISO100-ISO6400 | |
|
Shutter Speed
|
Photo: 8s - 1/8000s |
| Video: 1s - 1/8000s | |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 4096×3072 |
| Laser Range Finder | |
| Measurement Accuracy | ± (1m + D×0.15%) where D is the distance to a vertical surface |
| Measuring Range | 5-1200m |
| Image Transmission | |
|
Operating Frequency
|
2.4GHz/5.8GHz |
| 900MHz (only applicable to FCC regions). | |
|
Max Transmission Distance
(unobstructed, free of interference) |
12.4 miles/20km (FCC) |
| 4.9 miles/8km (CE) | |
|
Transmitter Power (EIRP)
|
2.4GHz |
| FCC: <30dBm | |
| CE/SRRC/MIC: <20dBm | |
| 5.8GHz | |
| FCC/SRRC: <27dBm | |
| CE: <14dBm | |
| 5.15-5.25GHz | |
| FCC/CE: < 23dBm | |
| 902-928MHz | |
| FCC: <30dBm | |
| 5.65-5.755GHz | |
| MIC: <27dBm | |
| Visual Sensing System | |
|
Obstacle Sensing Range
|
Forward: 19.7-1220.5in (0.5-31m) |
| Backward: 19.7-984.3in (0.5-25m) | |
| Sidewards: 19.7-1023.6in (0.5-26m) | |
| Upward: 0.66-85.3ft (0.2-26m) | |
| Downward: 0.98-75.5ft (0.3-23m) | |
|
FOV
|
Forward/Backward Sensor: 60°(H), 80°(V) |
| Upward/Downward Sensor: 180° (sidewards), 120° (forwards, backwards) | |
|
Operating Environment
|
Forward, Backward, Sidewards, Upward: |
| The surface has rich texture, under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) | |
| Downwards: | |
| The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) |
|
| Millimeter-wave Radar Sensing System | |
|
Frequency
|
60GHz/24GHz* |
| *For 60Ghz use, please fly safely and comply with your local laws and regulations. | |
|
Sensing Range
|
60GHz Radar: |
| Upward: 0.98-787.4in (0.3-20m) | |
| Downward: 5.9-3149.6in (0.15-80m) | |
| Forward and Backward: 0.98-98.43ft (0.3-50m) | |
| 24GHz Radar: | |
| Downward: 2.62-39.4ft (0.8-12m) | |
|
FOV
|
Horizontal (6dB): ±60°/±22° (24G/60G) |
| Vertical (6dB): ±30°/±20° (24G/60G) | |
|
Operating Environment
|
60GHz Millimeter-wave Radar Sensing System |
| Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions: forwards, backwards, and above and below. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. | |
| 24Ghz Millimeter-wave Radar Sensing System | |
| Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3cm is less than 6 meters. | |
| Radar and Visual Sensing Systems | |
|
Sensing Range
|
Forward & Backward: 11.8-1968.5in (0.3-50m) |
| Sidewards: 19.7-1023.6in (0.5-26m) | |
| Upward: 0.66-85.3ft (0.2-26m) | |
| Downward: 0.49-262.5ft (0.15-80m) (60Ghz radar) | |
|
FOV
|
Forward/Backward Sensor: 80°(H), 120°(V) |
| Upward/Downward Sensor: 180° (sidewards), 120° (forwards & backwards) | |
|
Operating Environment
|
Forward, Backward, Upward, Downward: |
| Supports all-weather obstacle avoidance for glass, water, twigs, buildings and high voltage lines. At least one of the 2 conditions should be met: sufficient lighting or the obstacle has a strong reflection ability to electromagnetic waves. | |
| Sidewards: | |
| The surface has rich texture, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) | |
| Aircraft Battery | |
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120Wh |
| Net Weight | 1.15 lbs (520g) |
| Charging Temperature | -4° F to 113° F (-20ºC to 45ºC) (When the temperature is lower than 41° F (5° C), the self-heating function will be automatically activated. There should be at least around 10% of remaining power for heating.) |
| Hot Swappable | Supported |
| Autel Smart Controller V3 | |
|
Screen
|
Size: 7.9 inches |
| Resolution: 2048×1536 | |
| Max Brightness: 2000nits | |
|
Battery
|
Capacity: 5800mAh |
| Voltage: 11.55V | |
| Battery Type: Intelligent Lithium Ion Battery | |
| Energy 67Wh | |
| Charging time: 120 minutes | |
|
Operating Time
|
2.5 hours (Max. brightness) |
| 4.5 hours (50% brightness) | |
|
Max Transmission Distance
(without interference) |
12.4 miles/20km (FCC) |
| 4.9 miles/8km (CE) | |
| IP Rating | IP43 |
| Storage | 128GB |
| GNSS | GPS+GLONASS+Galileo+Beidou |
|
Transmitter Power (EIRP)
|
2.4GHz |
| FCC: <28dBm | |
| CE/SRRC/MIC: <20dBm | |
| 5.8GHz | |
| FCC/SRRC: <28dBm | |
| CE: <14dBm | |
| 902-928MHz | |
| FCC: <28dBm | |
| 5.65-5.755GHz | |
| MIC: <31dBm | |
| Operating Temperature | -4°F to 104°F (-20℃ to 40℃) |
|
Wi-Fi Protocol
|
Wi-Fi Direct, Wi-Fi Display |
| 802.11a/b/g/n/ac | |
| Supports 2×2 MIMO Wi-Fi | |
|
Wi-Fi Operating Frequency
|
2.400-2.4835 GHz |
| 5.150-5.250GHz* (MIC only) | |
| 5.725‒5.850GHz* (excluding MIC) | |
|
Wi-Fi Transmitting Power (EIRP)
|
2.400-2.4835GHz |
| FCC:＜23dBm | |
| CE/SRRC/MIC:＜20dBm | |
| 5.150-5.250GHz | |
| MIC:＜17dBm | |
| 5.725‒5.850GHz | |
| FCC/SRRC:＜22dBm | |
| CE:＜14dBm | |

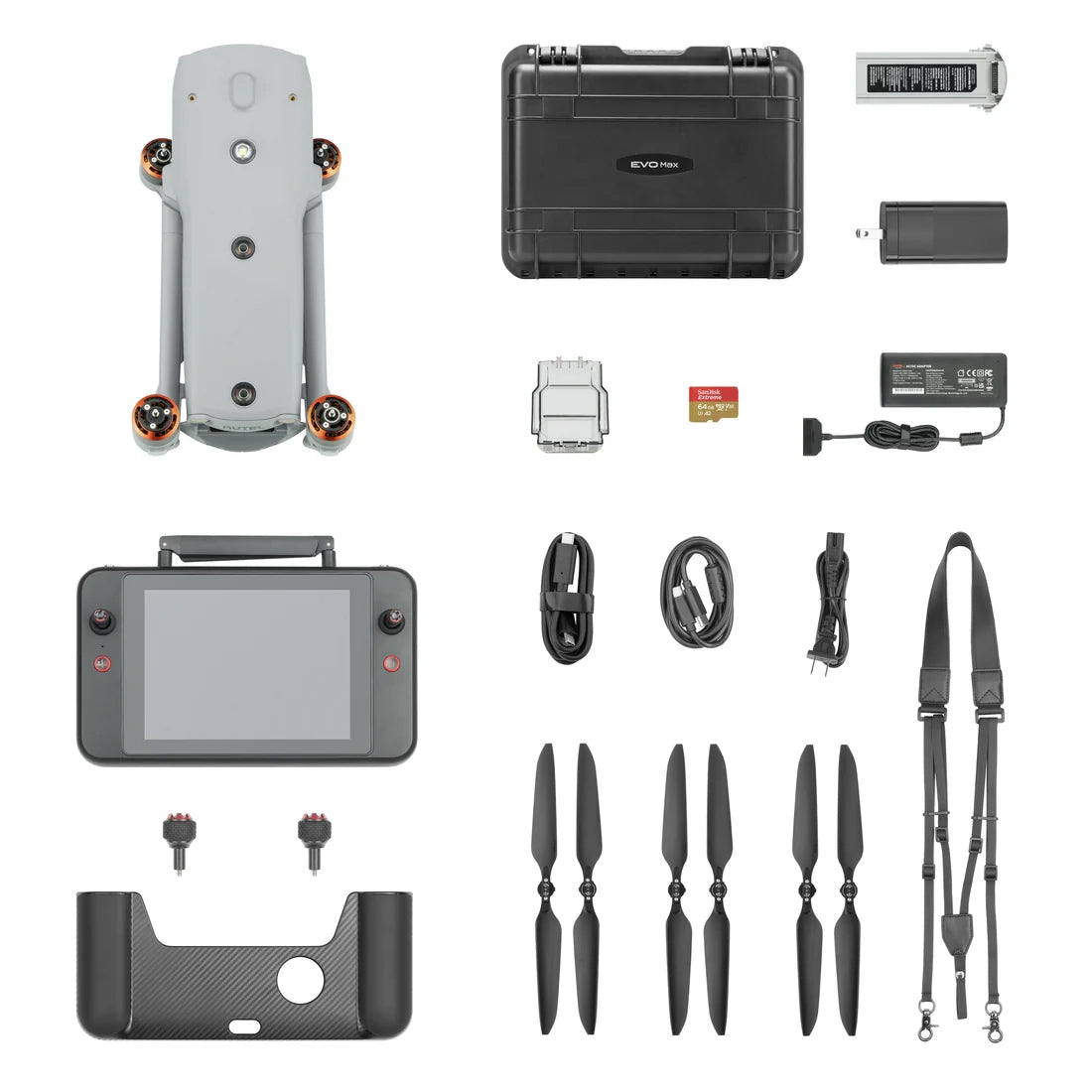

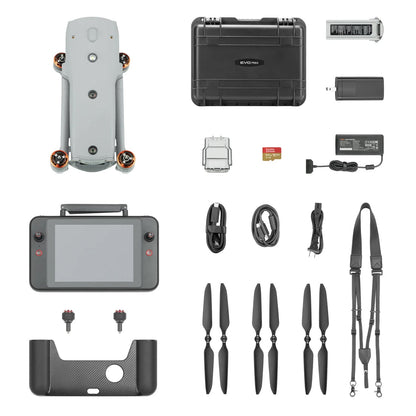

In the Box
- Autel Robotics EVO Max 4N Drone
- Smart Controller V3 with Sticks
- Battery
- Propeller
- Gimbal
- Gimbal Cover
- 64GB SD Card
- Battery Charger and Power Cable
- 2x Pair of Spare Propeller
- Screwdriver
- 4x Screws
- Smart Controller Lanyard
- Smart Controller Cover
- 2x Smart Controller Spare Joystick
- RC Charger
- RC Charging Cable
- Data Cable
- Rugged Case
- User Manual
- Autel Robotics 1 Year Limited Warranty
