Autel EVO II Pro 6K V3: Next-Level Aerial Imagery
The leader in picture quality and flight intelligence just got even better with the launch of the Autel EVO II Pro 6K V3. This version carries the best of its predecessor but with significant improvements that will surely put your aerial photography and videography to a whole new level.
Explore The Key Features of The Autel EVO II Pro 6K V3
-
Enhanced Image Quality: Features a 20-MP 1-inch Sony CMOS sensor, supporting up to 6K video resolution and 6k hyperlapse renders as well as higher frame rates.
The drone combines the brilliance of 4K clarity with the brightness, color, and detail of High Dynamic Range for the best possible image quality (HDR). Areas of heavy shade and sunlight that had previously been concealed are now crystal clear and detailed.
-
Advanced Night Vision: Equipped with Moonlight Algorithm 2.0 for superior low-light performance and noise reduction.
-
Extended Flight Time: Your flight can stretch to a maximum of 40 minutes thanks to the powerful battery that comes with the package.
-
Transmission System: SkyLink 2.0 Video Transmission ensures clear, interference-free connections - with a range of up to 15 kilometers. Within one kilometer, get crucial information with QHD video. In addition, you benefit from tri-band communication and frequency hopping for maximum anti-interference capability.
-
High Dynamic Range: Delivers exceptional clarity in areas of deep shadow and bright sunlight, ensuring detailed images.
Benefits of the Autel EVO II Pro 6K V3
-
Creative Freedom: The drone combines the brilliance of 4K clarity with the brightness, color, and detail of High Dynamic Range for the best possible image quality (HDR). Areas of heavy shade and sunlight that had previously been concealed are now crystal clear and detailed.
In addition to the imaging capabilities of the drone’s camera system, it also comes with an adjustable aperture from f/2.8 to f/11 and a maximum ISO of 44000 for perfect shot setup.
-
Reliable Performance: Stays airborne longer and transmits high-quality images even in challenging environments. The modified Android operating system offers more freedom with third-party app
-
Safe and Secure: The drone has 19 sets of sensors, including 12 visual sensors, the primary camera, ultrasonography, IMUs, and other sensors. three-dimensional maps may be built and real-time path planning is made possible. All these make flying safe for your peace of mind.
-
User-Friendly Controls: Comes with the Smart Controller SE featuring, an RC that features an 8-core processor and a 6.4-inch OLED touch screen for HD picture transmission.
-
All-Weather Capable: IP43 rating ensures the drone performs in various weather conditions, enhancing its versatility.
Industry Applications
-
Professional Photography: Ideal for capturing high-resolution images and videos for media, real estate, and tourism industries.
-
Event Coverage: Perfect for filming outdoor events, offering unique aerial perspectives and high-definition coverage.
-
Environmental Monitoring: Useful for geographical and environmental studies due to its robust imaging capabilities and extended flight range.
-
Search and Rescue: Assists in emergency operations with its reliable performance in adverse conditions and precise imaging.
-
Infrastructure Inspection: Streamlines inspections of buildings, bridges, and other structures, ensuring detailed and accurate assessments.
Specifications
Aircraft
- Takeoff weight: 1191 g
- Max takeoff weight: 2000 g
- Wheelbase: 397 mm
- Size (L*W*H): 230*130*108 mm (folded), 457*558*108 mm (unfolded)
- Maximum service ceiling altitude: 7000 m
- Max ascent speed: 8 m/s (Ludicrous)
- Max descent speed: 4 m/s (Ludicrous)
- Max horizontal flight speed: 20 m/s (Ludicrous)
- Max flight distance (no wind): 25 km
- Max tilt angle: 33° (Ludicrous)
- Max angular velocity: 120°/s
- Max flight time (no wind): 40 min
- Max hovering time (no wind): 35 min
- Operating temperature range: -10℃ ~ 40℃
- Maximum resistance to wind: Level 8
- Operating frequency:
- 902-928 MHz (FCC Only)
- 2.400-2.4835 GHz
- 5.725-5.850 GHz (non-Japan)
- 5.650-5.755 GHz (Japan Only)
- Transmission power:
- 900M FCC/ISED: ≤31 dBm
- 2.4G FCC/ISED: ≤32 dBm, SRRC/CE/MIC/RCM: ≤20 dBm
- 5.8G (non-Japan) / 5.7G (Japan) FCC/ISED/SRRC/MIC: ≤33 dBm, CE/RCM: ≤14 dBm
- Hovering accuracy:
- Vertical: ±0.1 m (visual positioning); ±0.5 m (GPS)
- Horizontal: ±0.3 m (visual positioning); ±1.5 m (GPS)
- GNSS: GPS/Beidou/Glonass/Gallieo
- Internal storage: 8GB
- SD storage: max. support 256GB (UHS-3 or Class 10)
Gimbal
- Gimbal: 3-axis stabilization
- Mechanical range: Tilt: -135° to +45°, Pan: -100° to +100°
- Controllable rotation range: Tilt: -90° to +30°, Pan: -90° to +90°
- Max control speed (Tilt): 300°/s
- Angular Vibration Range: ±0.005°
Remote controller and image transmission
- Operating frequency:
- 902-928 MHz (FCC Only)
- 2.400-2.4835 GHz
- 5.725-5.850 GHz (non-Japan)
- 5.650-5.755 GHz (Japan Only)
- Transmission power:
- FCC: ≤33 dBm
- CE: ≤20 dBm@2.4G, ≤14 dBm@5.8G
- SRRC: ≤20 dBm@2.4G, ≤33 dBm@5.8G/5.7G
- Max Transmission Distance (unobstructed, free of interference):
- FCC: 15 km
- CE: 8 km
- Display screen: 2340x1080 60fps
- Battery: 1900mAh
- Operating time: ~2 hours (Max. Brightness), ~4 hours (50% Brightness)
- Charging time: 90 minutes
- Internal Storage: ROM 128GB + expandable storage via micro-SD card
Sensing system
- Sensing system type: Omnidirectional sensing system
- Forward:
- Accurate measurement range: 0.5-18 m
- Effective sensing speed:
- Viewing angle: Horizontal: 60°, Vertical: 80°
- Backward:
- Accurate measurement range: 0.5-16 m
- Effective sensing speed:
- Viewing angle: Horizontal: 60°, Vertical: 80°
- Upward:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed:
- Viewing angle: Horizontal: 65°, Vertical: 50°
- Downward:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed:
- Viewing angle: horizontal: 100°, vertical: 80°
- Left and right:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed:
- Viewing angle: horizontal: 65°, vertical: 50°
- Operating Environment:
- Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15)
- Upward: Detects diffuse reflective surfaces (>20%)
- Downward: Surface with clear pattern and adequate lighting (lux > 15), Detects diffuse reflective surfaces (>20%)
Camera
- Sensor: 1 inch CMOS; 20M pixels
- Lens: FOV: 82°, 35 mm format equivalent focal length: 29 mm, Aperture: f/2.8 - f/11, Focus range: 0.5 m to infinity
- ISO range: Video: 100-44000, Photos: 100-6400
- Shutter speed: Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates
- Zoom: 1-16x (up to 3x lossless zoom)
- Photo mode: Single shot/Burst shooting/AEB/Time Lapse/HDR
- Maximum photo size: 5472*3648 (3:2), 5472*3076 (16:9), 3840*2160 (16:9)
- Image Format: JPG (default) / DNG / JPG+DNG
- Photo mode resolutions: 5472x3076P30/P25/P24, 3840x2160P60/P50/P48/P30/P25/P24, 2720x1528P60/P50/P48/P30/P25/P24, 1920x1080P60/P50/P48/P30/P25/P24
- Video format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
- Max bitrate: 120Mbps
- Supported SD cards: micro SD card (UHS-3 or above)

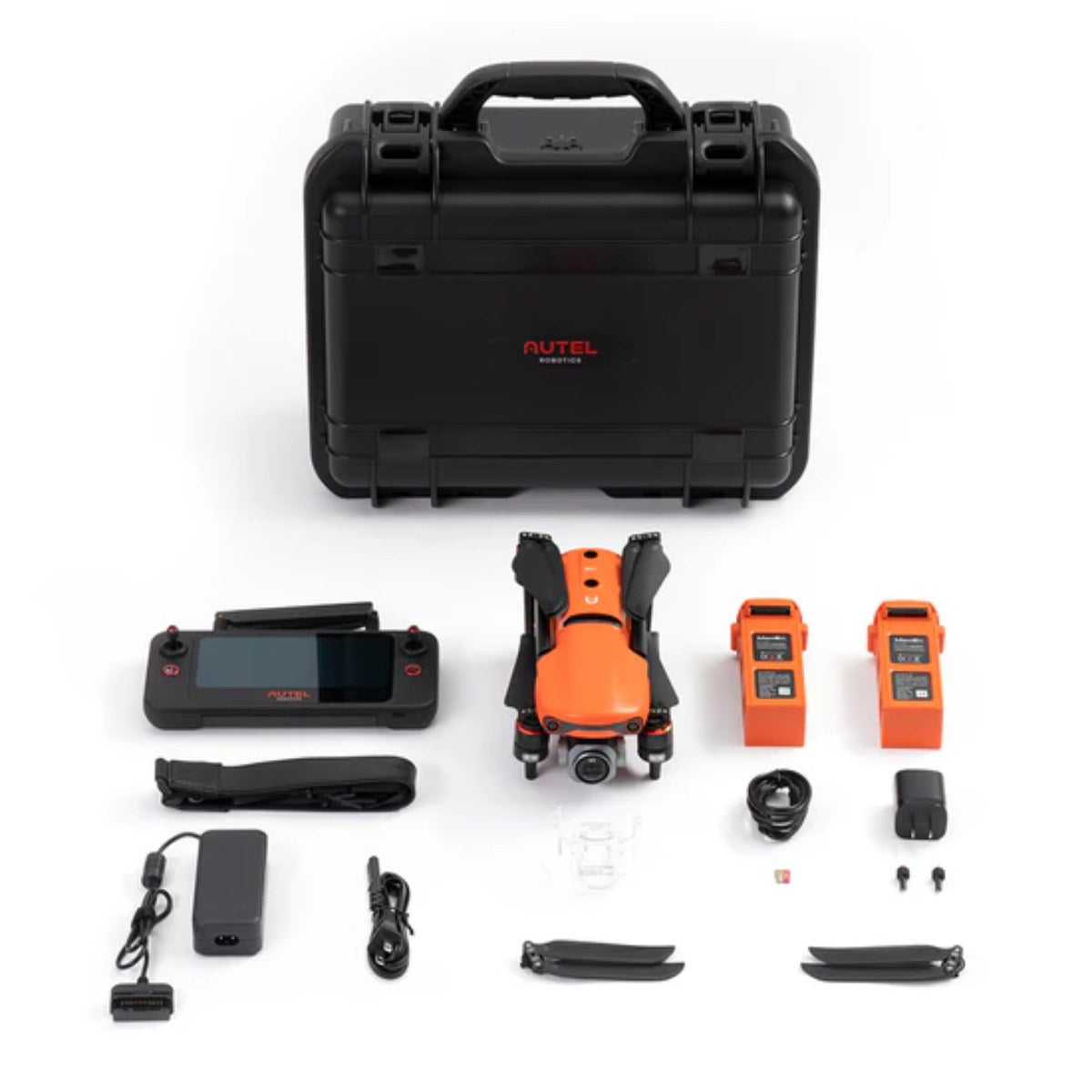

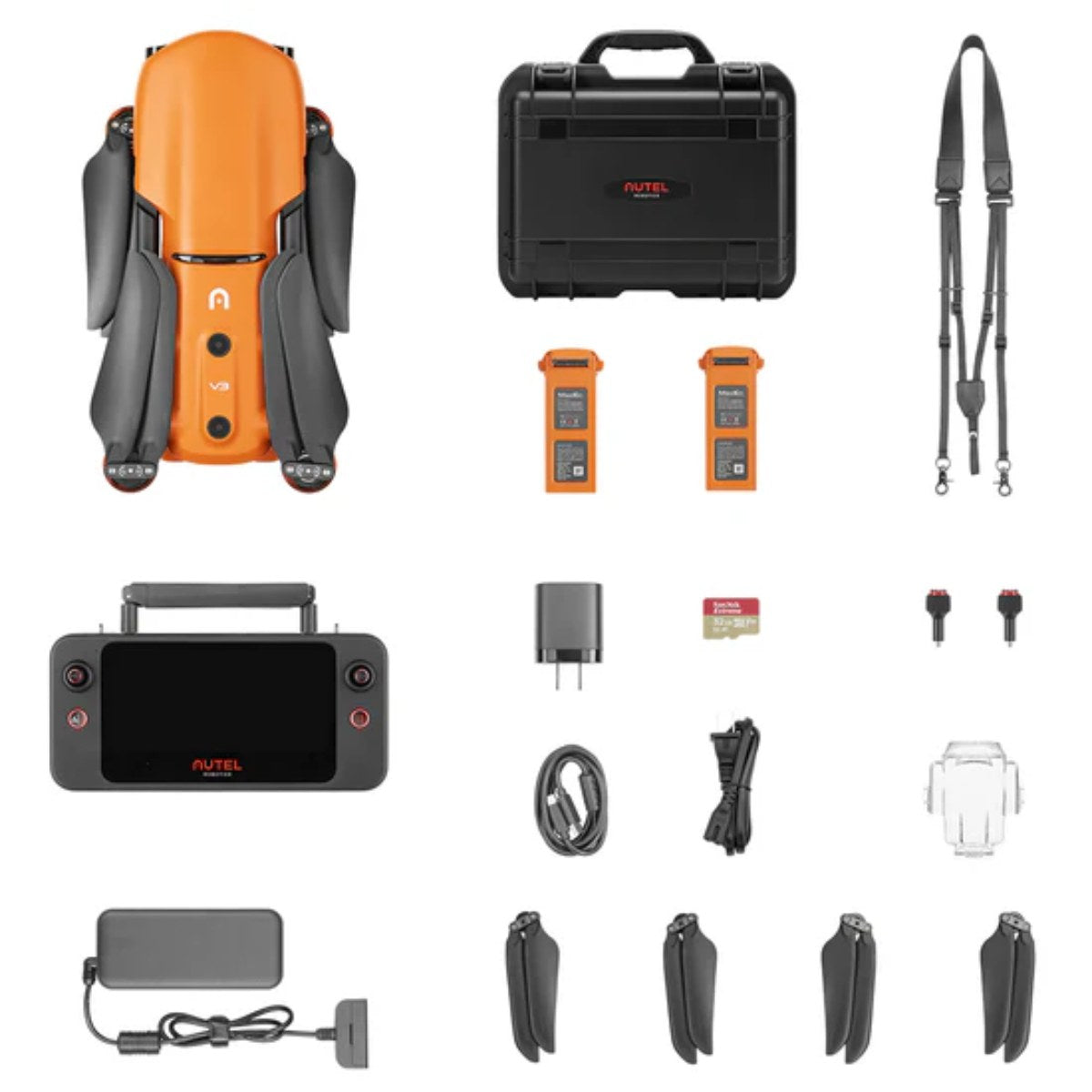

In The Box
- 1x Aircraft (including battery, propellers, gimbal holder, and 32G SD Card)
- 1x Remote Controller (sticks included)
- 1x Spare battery
- 1x Spare propeller (pair)
- 1x Battery charger + power cable
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x Spare control stick (pair)
- 1x Manuals (Packing List, Quick Guide, Disclaimer & Safety Instructions, and Battery Safety)
- 1x Carry case
