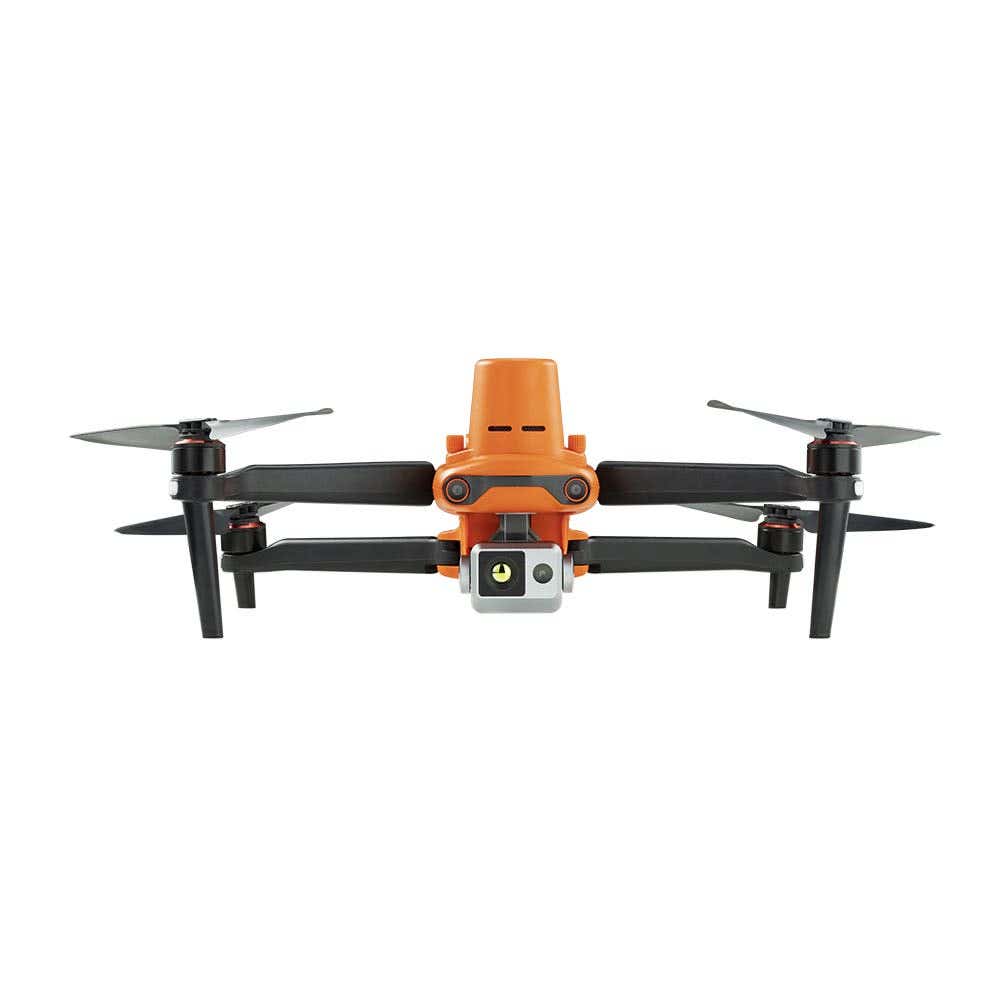

Unmatched accuracy and control with dual-cam advantage
The leader in picture quality and flight intelligence just got even better with the launch of the Autel EVO II Dual 640T RTK V3. This drone carries the best of its predecessor plus the power of a new RTK module and significant improvements that will surely improve how you carry out your aerial missions.
2022 RTK

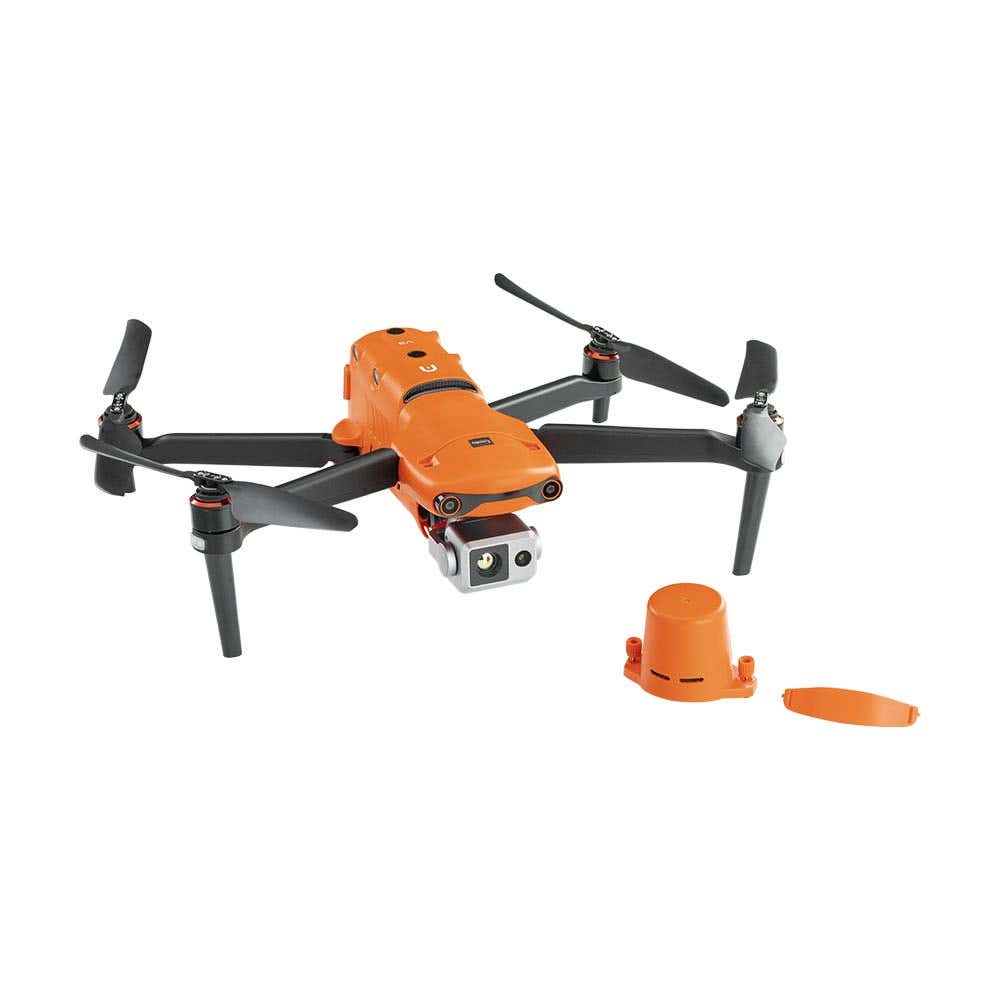

This AUV incorporates the new 2022 RTK module that offers real-time centimeter-level positional data in three minutes and allows post-processing kinematics (PPK).
Now your Autel EVO II Dual 640T RTK V3 aircraft has the ability to save camera exposure settings, original satellite observation data, and more.
The positioning system works with the NTRIP RTK network and RTK base station, which makes it easier to get precise and steady data in challenging operational settings.
Thermal and visual cameras
The EVO II Dual 640T RTK V3 features 2 cameras that give you the ability to carry out different kinds of missions with just one powerful drone.
Whether it’s casual overhead photography, area surveying, line inspection, locating of hotspots, search and rescue, or crowd monitoring, this drone has got you covered.
640T thermal camera
The Autel EVO II Dual 640T RTK Rugged Bundle V3 is equipped with 640×512 30Hz HD thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom. Now you’ll find it easy to observe distant targets.
The system uses a new image processing algorithm which helps make thermal imaging details clearer and more discernible than competition with similar resolution and hardware.
50-MP ultra-sensitive visual camera
The visual camera installed in the drone features a unique RYYB sensor with Moonlight Algorithm 2.0. This improves the camera's 50 megapixels by giving users more information for better forensics and analysis even in low-light situations.
In low light, it is possible to detect, recognize, and categorize individuals and proceed with confidence. And with a mix of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for quick and precise tracking, you'll never lose sight of your targets.
With the aid of a combination of visual and thermal images captured by these dual cameras, you can swiftly understand data and make important decisions.
Maximum performance with uncompromised safety
With Autel's brand-new SkyLink 2.0 Video Transmission technology, your Autel EVO II Dual 640T RTK V3 may go up to 15 kilometers. Even better, your flight can stretch to a maximum of 40 minutes thanks to the powerful battery that comes with the package.
Within one kilometer, get crucial information with QHD video. In addition, you benefit from tri-band communication and frequency hopping for maximum anti-interference capability.
The drone has 19 sets of sensors, including 12 visual sensors, the primary camera, ultrasonography, IMUs, and other sensors. Three-dimensional maps may be built and real-time path planning is made possible. All these make flying safe for your peace of mind.
Easy and smart control
This Autel EVO II Dual 640T RTK Rugged Bundle V3 comes with the Smart Controller SE, an RC that features an 8-core processor and a 6.4-inch OLED touch screen for HD picture transmission.
With triple band frequency hopping, the preinstalled SkyLink 2.0 Transmission technology increases anti-interference capabilities while ensuring long-distance operations from up to 15 km distant.
The modified Android operating system offers more freedom with third-party apps, and an IP43 grade assures functioning in all weather conditions.
This Autel EVO II Dual 640T RTK Rugged Bundle V3 comes with the Smart Controller SE, an RC that features an 8-core processor and a 6.4-inch OLED touch screen for HD picture transmission.
With triple band frequency hopping, the preinstalled SkyLink 2.0 Transmission technology increases anti-interference capabilities while ensuring long-distance operations from up to 15 km distant.
The modified Android operating system offers more freedom with third-party apps, and an IP43 grade assures functioning in all weather conditions.
For organizations, especially those that do inspection, surveying, and public safety missions, that want a dependable and feature-rich drone, the Autel EVO II Dual 640T RTK V3 is a great option.
Why Purchase From Dronefly?
Dronefly offers more than just high-quality drone parts; we provide a full-service experience:
- Knowledgeable Support: Tap into the expertise of our drone experts for any advice or questions you might have.
- Expedited Shipping: Enjoy the convenience of quick, reliable shipping when you order your drone parts from us.
- Official Reseller: Dronefly is an authorized dealer, ensuring that every purchase you make includes authentic products with valid warranties.
Specifications
Aircraft
Weight (with propeller and battery): 43.6 oz (1237g±0.5g)
Size (L*W*H):

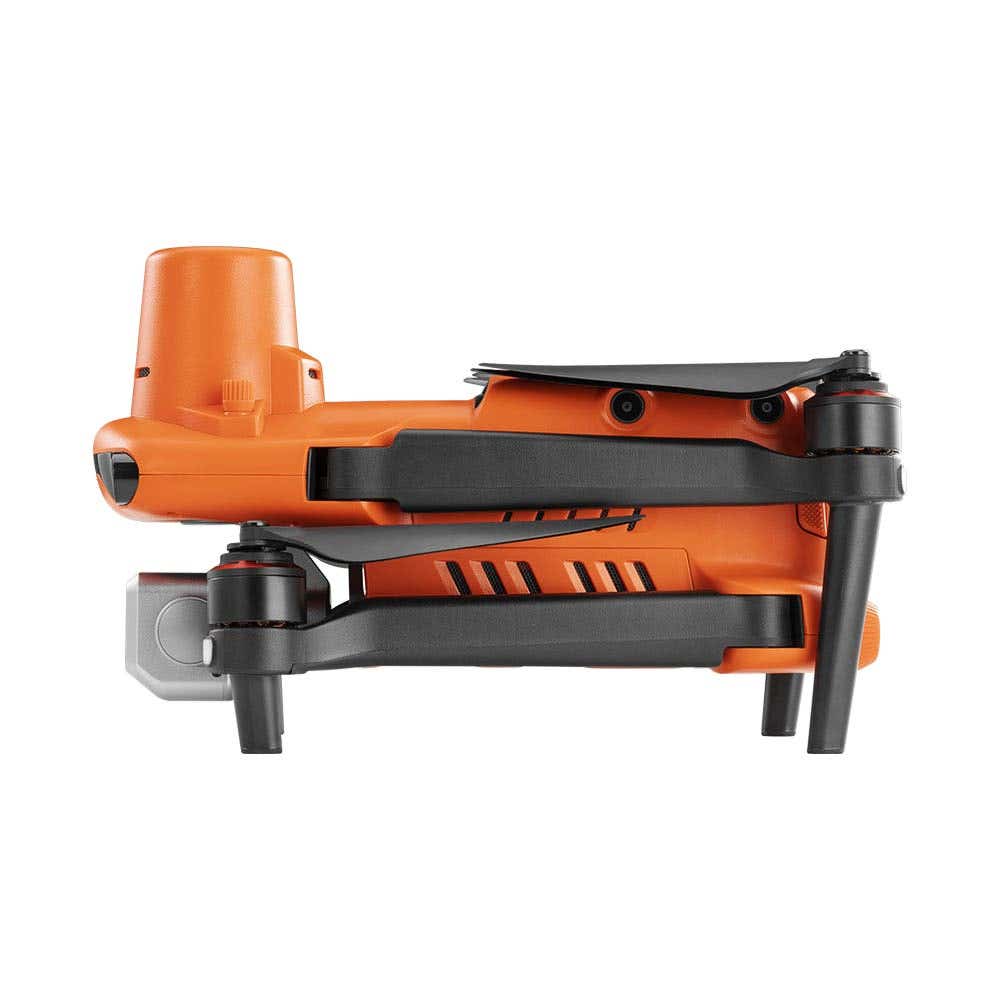

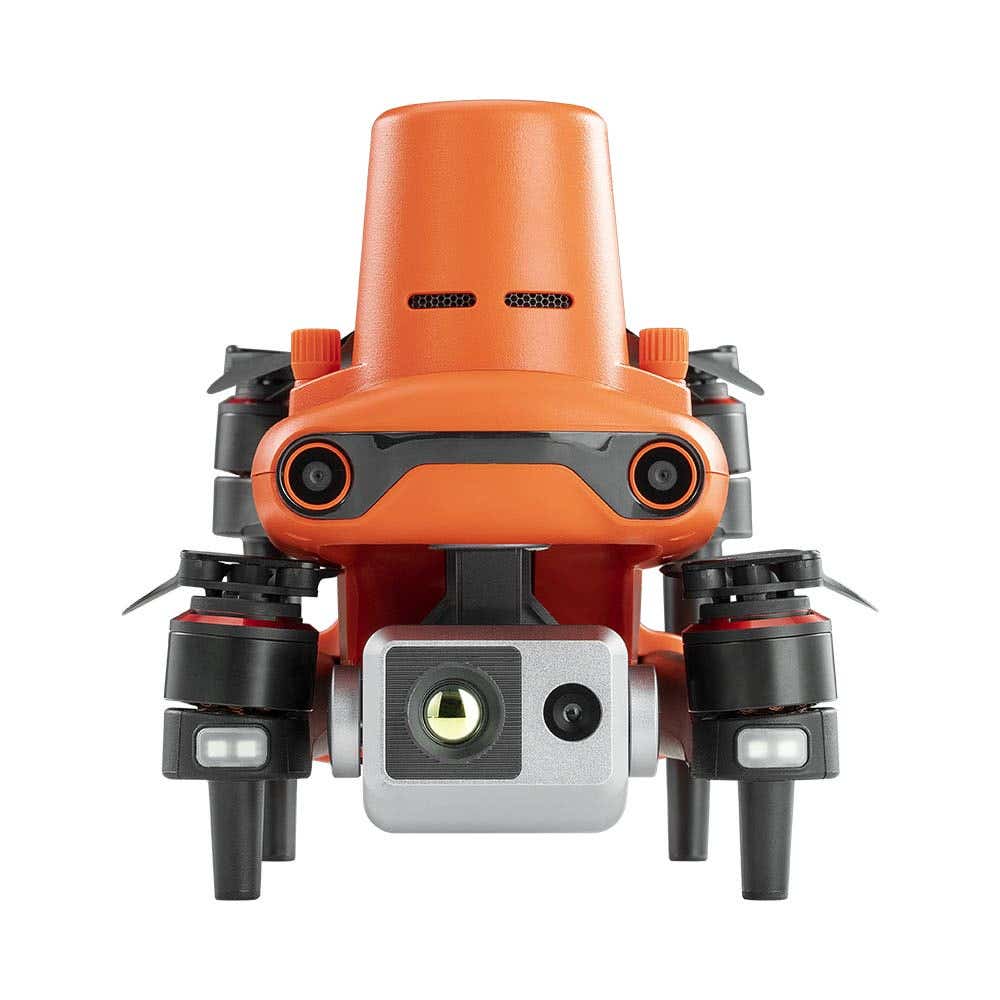

- 230*130*143mm (folded)
- 457*558*143mm (unfolded)
Wheelbase: 397 mm
Maximum Service Ceiling Altitude: 7000 m
Max ascent speed: 18 mph (8 m/s) (Ludicrous)
Max descent speed: 9 mph (4 m/s) (Ludicrous)
Max horizontal flight speed: 45 mph (20 m/s) (Ludicrous)
Max flight distance (no wind): 13 miles (21 km)
Max angular velocity: 120°/s
Max tilt angle: 33° (Ludicrous)
Max flight time: 36 minutes
Max hovering time (no wind): 32 minutes
Operating temperature range: 14°F ~104°F (-10° ~ 40°)
Maximum resistance to wind: 27 mph (12 m/s) (Take-off and landing)
Operating frequency:
- 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
Transmission power:
- 900M FCC/ ISED: 31dBm
- 2.4G FCC/ ISED: 32dBm SRRC/CE/MIC/RCM: 20dBm
- 5.8G (non-Japan); 5.7G (Japan) FCC/ISED/SRRC/MIC: 33dBm CE/ RCM: 14dBm
Hovering accuracy:
- When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m
- Vertical: ±0.1 m (when visual positioning is working normally); ±0.5 m (when GPS works normally)
- Horizontal: ±0.3 m (when visual positioning is working normally); ±1.5 m (when GPS works normally)
Image position compensation: The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
Internal storage: 8GB
SD storage: max. support 256GB (UHS-3 or Class 10)
Thermal Camera
Sensor: Uncooled VOx Microbolometer
Lens:
- FOV H33°V26°
- Focal length 13mm
Zoom: 1-16x
Pixel size: 12µm
Wavelength range: 8 - 14µm
Temperature range:
- High gain mode: -20° to +150°
- Low gain mode: 0° to +550°
Temperature measurement accuracy: ±3°C or ±3% of reading (whichever is greater) @ Environmental temperature -20°C~60°C
Accurate temperature measurement distance: 2-20 meters
Video resolution: 640x512@30fps
Video format: MOV / MP4 (Support H.264/H.265)
Camera resolution:
- Infrared mode: 640*512
- Picture-in-picture mode: 1920*1080, 1280*720
Photo mode:
- Single shot
- Burst shooting: 3/5 frames, 3 is the default
- Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format: JPG (with irg file)
Visual Camera
Sensor: 1/1.28"(0.8") CMOS; 50M effective pixels
Lens:
- FOV: 85°
- 35 mm format equivalent focal length: 23 mm
- Aperture: f/1.9
- Focus range: 0.5 m to infinity (with auto focus)
ISO range:
- Video: 100-64000
- Photo: 100-6400
Shutter speed:
- Photo mode: 1/8000 ~ 8s
- Other: 1/8000 ~ 1/frame rates
Zoom: 1-16x (up to 4x lossless zoom)
Photo mode:
- Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
Maximum photo size:
- 8192*6144 (4:3)
- 4096*3072 (4:3)
- 3840x2160 (16:9)
Image Format: JPG (default) / DNG / JPG+DNG
Video format: MOV / MP4
Video resolution:
- 3840x2160P60/P50/P48/P30/P25/P24
- 2720x1528P60/P50/P48/P30/P25/P24
- 1920x1080P60/P50/P48/P30/P25/P24
Max bitrate: 120Mbps
Supported file system: FAT32/exFAT
Gimbal
Gimbal: 3-axis stabilization
Mechanical range:
- Tilt: -135° to +45°
- Pan: -100° to +100°
Controllable rotation range:
- Tilt: -90° to +30°
- Pan: -90° to +90°
Max control speed (Tilt): 300°/s
Angular Vibration Range: ±0.005°
GNSS
Single frequency high sensitivity GNSS:
- GPS+BeiDou+Galileo (Asia)
- GPS+GLONASS+Galileo (Other areas)
Multi-frequency multi-system high-precision RTK GNSS:
- Frequency points used:
- GPS: L1/L2
- GLONASS: L1/L2
- BeiDou: B1/B2
- Galileo: E1/E5
- First positioning time:
Positioning accuracy:
- Vertical: 1.5 cm + 1 ppm (RMS)
- Horizontal: 1 cm + 1 ppm (RMS)
1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves
Remote controller and image transmission
Operating frequency:
- 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
Transmission power:
- FCC: 33dBm
- CE: 20dBm@2.4G, 14dBm@5.8G
- SRRC: 20dBm@2.4G, 33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference):
- FCC: 9.3 miles (15km)
- CE: 4.97 miles (8km)
Display screen: 2048x1536 60fps
Battery: 5800mAh
Operating time:
- ~3 hours (Max. Brightness)
- ~4.5 hours (50% Brightness)
Charging time: 120 minutes
Internal Storage: ROM 128GB
Sensing System
Sensing system type: Omnidirectional sensing system
Forward:
- Accurate measurement range: 0.5-18 m
- Effective sensing speed: <12m/s
- Viewing angle: Horizontal: 60°, Vertical: 80°
Backward:
- Accurate measurement range: 0.5-16 m
- Effective sensing speed: <12m/s
- Viewing angle: Horizontal: 60°, Vertical: 80°
Upward:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 65°, Vertical: 50°
Downward:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 100°, Vertical: 80°
Left and right:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 65°, Vertical: 50°
Operating Environment:
- Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15)
- Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
- Downward: Surface with clear pattern and adequate lighting (lux > 15); Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Charger
Input: 100-240 V, 50/60 Hz, 1.5A
Output:
- 13.2 V ? 5 A
- 5V ? 3A
- 9V ? 2A
- 12V ? 1.5A
Voltage: 13.2±0.1V
Rated power: 66W

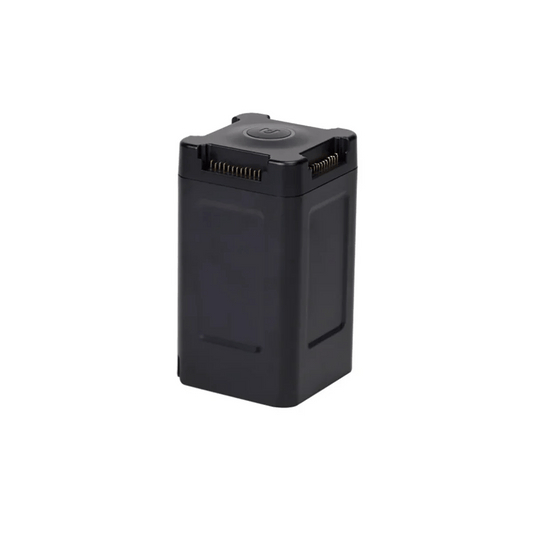

Multi-charger
Voltage: 13.2 V
Charging temperature range: 41°F to 113°F (5°C to 45°C)

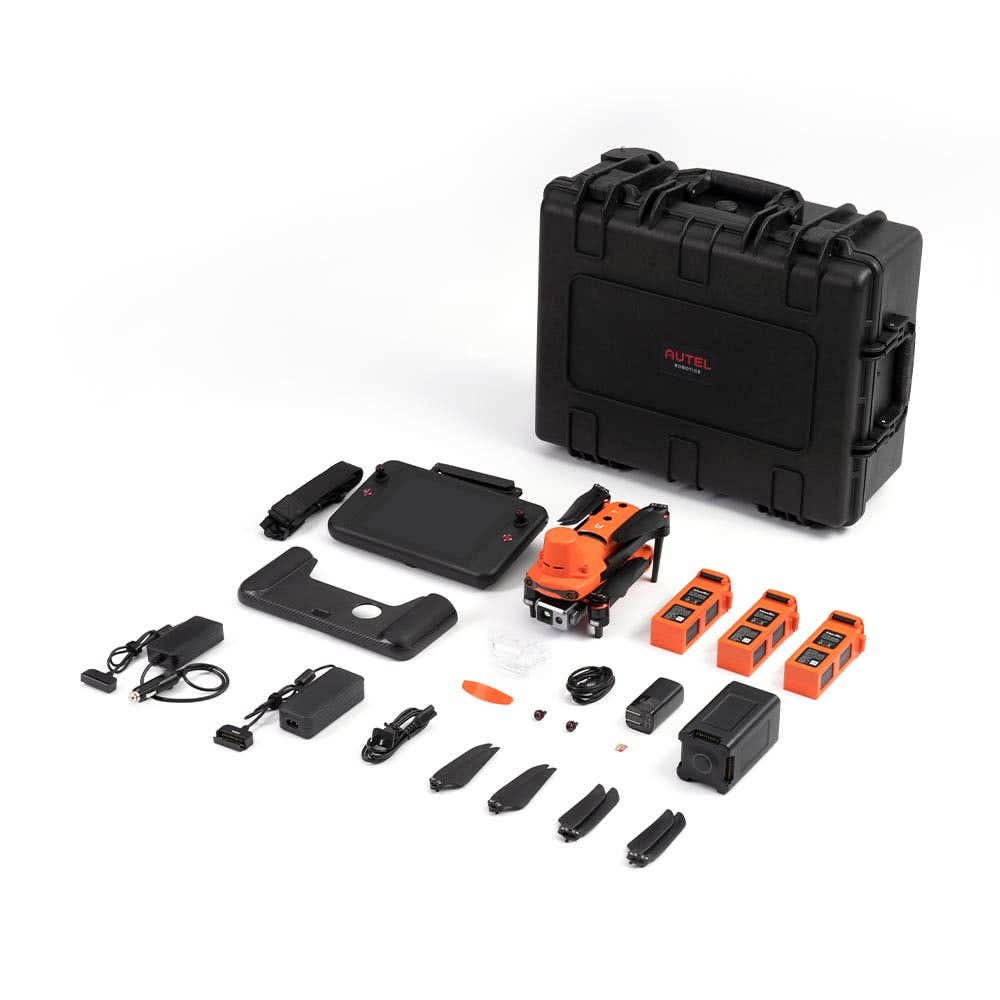

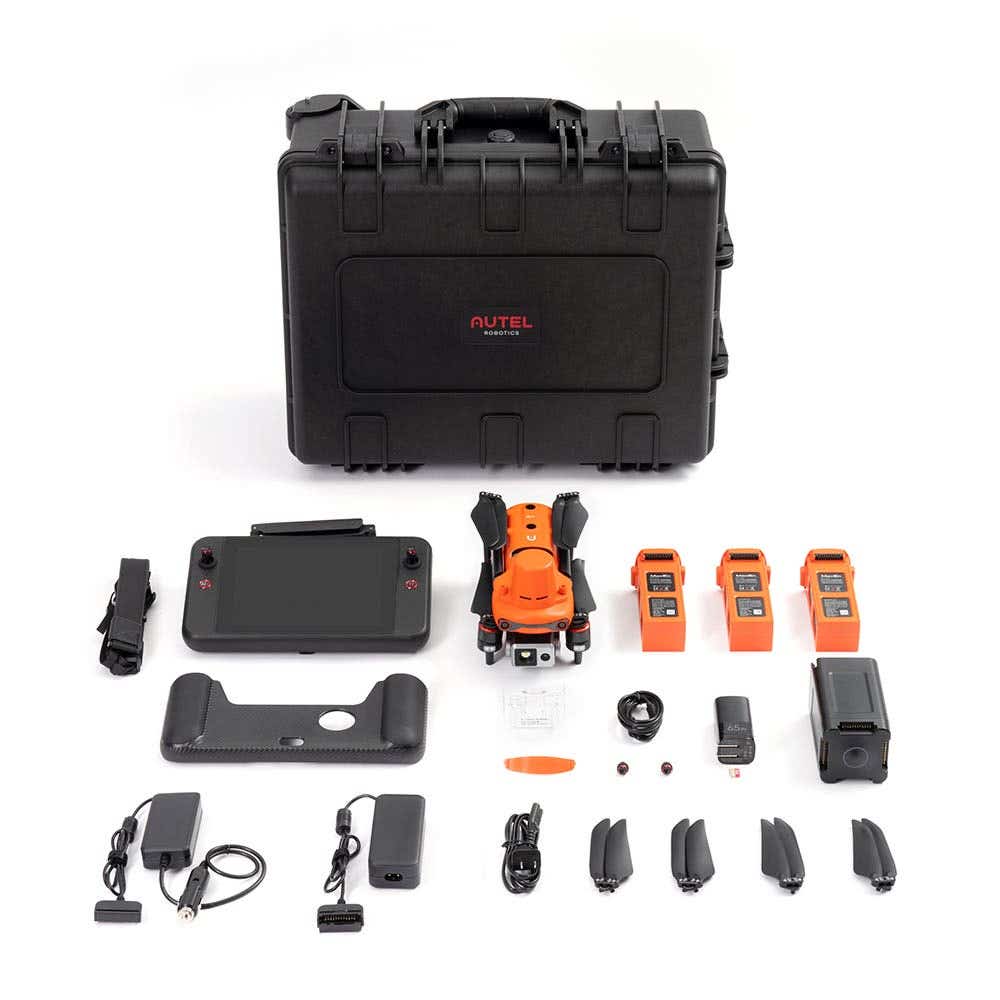

In the Box
- 1x Aircraft (including battery, propellers, gimbal cover, and 32G SD Card)
- 1x Remote Controller (sticks included)
- 1x RTK Module

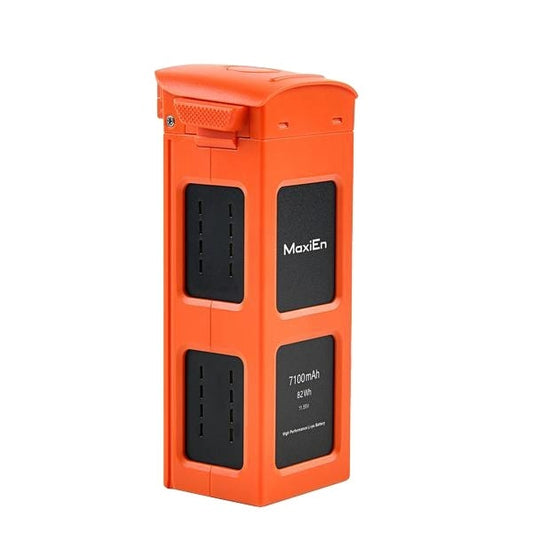

- 2x Spare batteries
- 2x Spare propellers (pair)
- 1x Battery charger + power cable
- 1X Car charger
- 1x Multi-charger
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x RC protective case
- 1x Spare control stick (pair)
- 1x Protector case
- 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
